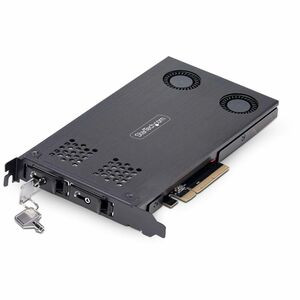

Startech Dual-Bay M.2 Nvme Ssd To Pcie X8 Removable Mobile Rack; Bifurcation Req 2M2-REMOVABLE-PCIE

StarTech Dual-Bay M.2 NVMe SSD to PCIe x8 Removable Mobile Rack; Bifurcation Required; Tool-less Installation, PCIe Hot-Swap Drive Bay - Utilize a PCIe x8/x16 slot as a removable drive bay for dual M.2 SSDs; Supports up to 2280 M-Key M.2 NVMe SSDs; Toolless installation; Lockable Drive Tray (2 keys incl.); PCIe bifurcation required; Active cooling fans; No drivers/software required Utilize an available PCIe x8 expansion slot to install, remove, or swap PCIe M.2 SSDs. Supports 2230, 2242, 2260, and 2280 M-Key M.2 NVMe SSDs with high-performance read/write speeds up to 64Gbps per drive. Toolless Installation Toolless installation allows an M.2 drive to be placed into the drive tray or inserted into the drive bay without needing tools. It features a power/activity LED indicator, a latching drive tray, and a lockable installation with two included keys. Effective Expansion Provide quick-swap external access to internal M.2 NVMe drives without needing external enclosures or adapters, which can affect throughput. Without chipsets or adapters, the drives maintain full performance of up to 64Gbps per drive. The ability to quickly remove drives is ideal for servicing, replacing, or upgrading M.2 drives. Additional drive trays, TR-M2-REMOVABLE-PCIE, are sold separately. Reliable Performance Vented stainless steel frame, bracket, and tray with thermal pads, along with an aluminum cover and active cooling fans help dissipate heat to ensure the drives stay cool during operation. Anti-vibration springs on the drive tray reduce shock or vibrations, and an optional screw provides additional stability. Access Two M.2 PCIe SSDs Simultaneously No on-board chip means to no drivers or software requirements and is compatible with any operating system, including Windows and Linux. M.2 backplane works with PCI Express 4.0/3.0 motherboards that support PCIe bifurcation and have an available x8 or x16 slot. Note: This product is not compatible with M.2 SATA drives. Note: PCIe bifurcation is required to read and write to multiple drives.
Miscellaneous

Device SupportedSolid State Drive
Operating System SupportedMac OS X 10.10.3 Yosemite

Physical Characteristics

Weight (Approximate)500 g
Length121 mm
Height19 mm
Width186 mm
Color FamilyBlack


General Information

Product TypeM.2 NVMe to PCIe Adapter
Manufacturer Part Number2M2-REMOVABLE-PCIE
startech/uk
ManufacturerStarTech
Product NameM.2 NVMe to PCIe Adapter
Brand NameStarTech
