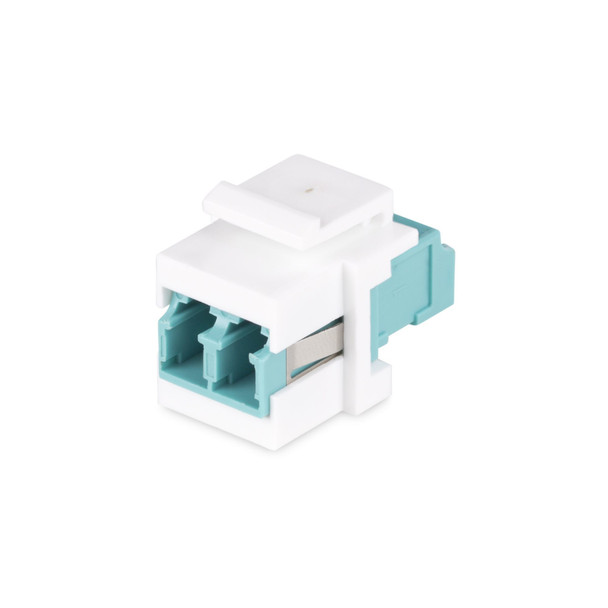

Startech LC to LC Coupler LC Fiber Coupler LC/UPC Keystone Jack Duplex Fiber Opt DMFKSLCLCCOUPLER

Connect two LC fiber cables or establish fiber connectivity on a keystone patch panelConnect two LC Duplex fiber cables featuring UPC polished ends to extend a network connection, using this LC to LC Keystone Coupler. The female to female fiber coupler maintains optimal signal integrity while achieving low insertion loss that exceeds industry standards.Compatible with Single Mode and Multimode Fiber CablesThe LC Fiber Coupler supports Single Mode and Multimode LC/LC fiber cables. It is compatible with OS1/OS2 (9/125m) and OM1/OM2/OM3/OM4/OM5 (62.5/125m and 50/125m) fiber core/cladding. The coupler fits securely into the keystone jack which can be installed in a keystone patch panel or wall plate without requiring additional tools.Durable ConstructionThe LC/LC Keystone Coupler features a durable ABS housing and ceramic-lined inner sleeves for precise fiber alignment, minimizing signal loss for long-lasting reliability and performance.The StarTech.com Advantage

Features


LC KEYSTONE COUPLER: LC to LC Coupler features a compact design with removable Keystone Jack; Join two LC fiber cables or extend fiber connectivity in a network setup; Ideal for keystone patch panels and wall plate installations


ROBUST CONSTRUCTION: ABS outer housing enhances durability and wear protection; Ceramic-lined inner sleeves enables precise alignment of fiber ends; Rated for 500 insertion cycles with minimal insertion loss; Includes protective dust covers


RELIABLE DATA TRANSMISSION: LC coupler supports 1/10/40/100Gbps for reliable transfer rates between devices; Insertion Loss below 0.2dB exceeds TIA 568 B.3 industry standards; Supports both LED and VCSEL sources


COMPATIBILITY: Versatile compatibility with Single Mode and Multimode fiber; Compatible with OS1/OS2, and OM1/OM2/OM3/OM4/OM5 cables; Supports 9/125m, 62.5/125m, and 50/125m fiber cores; NOTE: Best paired with LC/LC fiber cables with UPC polished ends


QUICK INSTALLATION: Simple plug-and-play design requires no tools for quick and hassle-free setup; LC fiber coupler snaps securely into keystone jack with metal tabs; Deploy the coupler to an existing keystone wall plate or patch panel



Weight & dimensions


Height
mm


Width
mm


Depth
mm



Logistics data


Master (outer) case width

410 mm


Master (outer) case height

230 mm


Products per master (outer) case
00 pc(s)


Master (outer) case length

410 mm



Technical details


Sustainability compliance

Yes


Sustainability certificates

CE



Features


Fiber mode structure

Multi-mode, Single-mode


Number of connectors

2


Product colour

White


Housing material

Acrylonitrile butadiene styrene (ABS)


Connector type

LC


Duplex

Yes



Packaging data


Package height
mm


Quantity per pack

1 pc(s)


Package depth

90 mm


Package width
5 mm


Package weight

6 g
