Startech M.2 Adapter 3 Port 1 X Pcie Nvme M.2 2 X Sata Iii M.2 Ssd Pcie M.2 Adap PEXM2SAT32N1

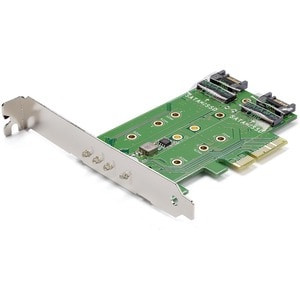

StarTech M.2 Adapter - 3 Port - 1 x PCIe (NVMe) M.2 - 2 x SATA III M.2 - SSD PCIE M.2 Adapter - M2 SSD - PCI Express SSD - Mount both PCIe (NVMe) and SATA based M.2 SSDs inside your computer using this PCI Express adapter card - 3 Port M.2 SSD (NGFF) Adapter Card/1 x PCIe (NVMe) M.2/2 x SATA III M.2/PCIe 3.0 - PCI Express 3.0 M.2 NGFF Card - Easily expand the storage and improve the overall performance of your desktop or server - Supports PCI Express 3.0 (x4) ideal for a high-performanc This 3-port M.2 SSD adapter card is one of the only cards that supports both PCIe and SATA-based M.2 SSDs (solid-state drives). It's a versatile way to expand the overall storage capacity of your desktop PC or server. Plus, because it supports a high-speed PCIe M.2 drive, you can increase the speed and performance of your computer. Increase the storage of your desktop PC If you need a simple and discreet way to expand your computer's storage, then this card can help. The card provides a platform for adding up to three M.2 SSDs to virtually any computer that has a PCIe slot. It supports common M.2 SATA SSDs, as well as newer high-performance M.2 PCIe drives. Now, you have a simple and effective way to expand the storage of your computer, regardless of the M.2 drive types you are using. Optimize your computer's performance When you couple this card with a PCI Express based M.2 drive, you can give your computer's performance a noticeable speed boost. With support for PCI Express 3.0 (up to approximately 40Gbps), you can install the latest high-performance M.2 PCIe SSDs inside your computer. With faster performance, you can get more work done in less time. Peace of mind, with simple and cost-effective data recovery Due to their performance and size advantages, M.2 drives are commonly used in laptops. If your laptop has failed, but its M.2 drive is still functional, then this card can help with data recovery. Once the M.2 drive is installed and the data recovery is complete, you can continue to use the drive for storage and backup purposes. Leverage the size and speed of M.2 drives This M.2 card lets you take advantage of the size and performance benefits of NGFF M.2 SSDs. M.2 drives are smaller than typical platter drives or mSATA-based SSDs, so you can install them in small form-factor PCs and servers, or in tighter areas within your computer case. Supports a wide range of drives You can rest assured that your M.2 SSDs are compatible with the adapter card. It supports the most common drive sizes, including, 2280, 2260, 2242 and 2230. The PEXM2SAT32N1 is backed by a StarTech 2-year warranty and free lifetime technical support. More from the Manufacturer More from the Manufacturer
Miscellaneous

Additional InformationBus Type PCI Express
Card Type Standard Profile (LP bracket incl.)
Industry Standards Serial ATA 3.0 specification - SATA I/II/III (1.5/3/6Gbps)
PCI Express 3.0
Interface M.2 SATA (NGFF)
SATA
M.2 PCIe (NVMe)
Port Style Integrated on Card
Ports 3
ATAPI Support Yes
Bootable Yes
MTBF 50,000 Hours
Port Multiplier No
RAID No
Type and Rate SATA III (6 Gbps)
Connector Type(s) 1 - PCI Express x4 Male
Internal Ports:3 - M.2 (NGFF; B-Key) Receptacle
2 - SATA (7 pin; Data) Plug
Humidity 20%
80% RH (Non-condensing)
Operating Temperature 5??C to 50??C (41??F to 122??F)
Storage Temperature -25??C to 70??C (-13??F to 158??F)

Certifications & StandardsCE
FCC

Country of OriginTaiwan
Environmentally FriendlyYes
TAA CompliantYes

General Information

Product TypeM.2 to PCI Express Adapter
Manufacturer Part NumberPEXM2SAT32N1
startech/uk
Packaged Quantity1 Each
ManufacturerStarTech
Product Name3-port M.2 NGFF SSD Adapter Card
Brand NameStarTech


Physical Characteristics

Weight (Approximate)65.2 g
Length119.4 mm
Height119.4 mm
Width20.3 mm
Product ColorBlack
Color FamilyGreen
Product MaterialSteel
