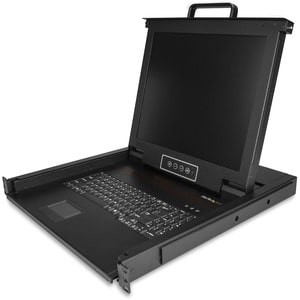

Startech Rackmount Kvm Console 1U 17" Lcd Monitor Single Port Vga Kvm Server Rac RKCONS1701

StarTech Rackmount KVM Console - 1U 17" LCD Monitor Single Port VGA KVM Server Rack Drawer includes Cables & Hardware - USB Support - Rackmount KVM console works w/all KVM switches w/ VGA + USB interfaces - Rack mount monitor w/17in Active Matrix TFT 1280 x 1024 LCD - 1U height - Integrated power supply - Server rack drawer w/durable steel enclosure 50000 hour MTBF 2 year warranty Providing centralized control of your PC, server, or KVM switch, this single-port rackmount KVM console gives you easy access to your connected system. With a minimal footprint, it mounts in a server rack or cabinet using only 1U of rack space. An All-Inclusive Solution The 1U rackmount console features a built-in keyboard, a touchpad for intuitive control, and a 17-inch LCD display that supports resolutions up to 1280x1024. This single-port KVM console includes everything you need to set up right out of the box: 1 VGA KVM Cable Mounting Rails M5 Cage Nuts and Screws Simple System Integration The rack console features a single-port KVM module, which can be connected directly to a server or PC, or to a KVM switch for access to multiple systems. The KVM module offers the flexibility you need for easily integrating the console into your existing server infrastructure. StarTech Rack Consoles Rack consoles provide convenient, rack-mounted control options for single servers or entire server rooms. KVM consoles include LCD display, keyboard, and trackpad, all sliding into 1U of rack space. RKCONS1701 is backed by a StarTech 2-year warranty and free lifetime technical support. More from the Manufacturer More from the Manufacturer
Input Devices

KeyboardYes
Pointing Device TypeTouchPad

Power Description

Power Consumption13 W
Input Voltage Range100V AC to 240V AC

Technical Information

KVM SwitchNo
Number of Computers Supported1

Interfaces/Ports

USBYes
VGAYes
Number of VGA Ports1

Physical Characteristics

Weight (Approximate)11.75 kg
Rack Height1U
Height43.2 mm
Width447 mm
Depth469.9 mm
Product ColorBlack
Color FamilyBlack
Product MaterialSteel


Display & Graphics

Screen Resolution1280 x 1024
Screen Size43.2 cm (17")
Screen ModeSXGA
Display Screen TypeLCD

Miscellaneous

Platform SupportedPC
REACH Declaration URL media.startech/cms/pdfs/rkcons1701_rohs.pdf
EU RoHS Declaration URL media.startech/cms/pdfs/rkcons1701_rohs.pdf
End of Life Manual AvailabilityYes
REACH free of SVHCYes
WEEE Statement media.startech/cms/pdfs/rkcons1701_weee.pdf

General Information

Product TypeLCD Rack Console
Manufacturer Part NumberRKCONS1701
startech/uk
Packaged Quantity1 Each
ManufacturerStarTech
Product NameSingle-Port Rackmount KVM Console with 17" Display
Brand NameStarTech
