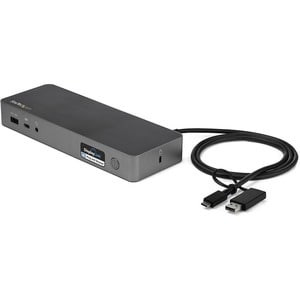

Startech Universal Laptop Docking Station Hybrid Usb-C & Usb-A Dock Dual 4K Dp & DK30C2DPPDUE

StarTech.com Universal Laptop Docking Station, Hybrid USB-C & USB-A Dock, Dual 4K DP & HDMI, 60W PD, Mac / Windows / Chrome OS, GbE - Docking station for USB-C, TB3/4, USB-A laptops - Works w/ Windows, macOS, Ubuntu, ChromeOS - Dual monitors on a MacBook Air/Pro M1/M2/M3, Dual 4K 60Hz - USB-IF, VESA & DisplayLink certified dock; 60W PD - 4-Port USB 5Gbps, NIC, 3.5mm ports, K-slot Create a dual-4K 60Hz workstation with this certified universal laptop docking station for USB-C and USB-A laptops. The USB-C dock features 60W Power Delivery 3.0, dual HDMI and/or DisplayPort monitors, fast-charge, and both USB-C and USB-A peripheral ports. The Uniquely Universal Host Cable The USB-C dock comes with a universal host cable that is designed with an attached USB-C to USB-A adapter to accommodate USB-A laptops. The cable also features an extended length of 1 meter (3.3 ft.) to support a wide variety of workstation setups. Flexible Monitor Connections This is a dual 4K60Hz video docking station with support for both Ultra HD DisplayPort and/or HDMI monitors that lets you configure your video connections to best suit your needs. Dual 4K DisplayPort | Up to 4096 x 2160p @ 60Hz Dual 4K HDMI | Up to 4096 x 2160p @ 60Hz Single 4K DisplayPort + Single 4K HDMI | Up to 4096 x 2160p @ 60Hz Single 5K DisplayPort * | Up to 5120 ?-- 2880 *Requires monitor support for 5K using two DP ports Certified for Universal Compatibility & Reliability This docking station is fully certified to meet top industry standards for USB-IF (USB 3.1 Gen 1, USB Type-C and Power Delivery), VESA DisplayPort and DisplayLink (video connections) certification to guarantee the highest quality, reliability, and compatibility. 60W Power Delivery Using a single cable, the dock powers and charges your laptop as you work with 60W PD for faster charging, using the 135W power adapter. Easy and Convenient Setup For fast setup right out of the box, the combo cable (USB-C with attached USB-A adapter) lets you connect any laptop. The dock has mounting holes for workstation mounting (bracket not included). The Connections You Need Connect your devices with four USB 3.1 ports: 1x USB-C and 3x USB-A. Fast-charge your USB-C or USB-A smartphone. The dock provides a GbE port (PXE Boot support & Wake-on-LAN) and 3.5 mm 4-position headset audio jack. It also includes a security lock slot (K-slot) to protect against theft. For more installation flexibility, you can use StarTech.com mounting brackets (SSPMSVESA) that are specifically designed for our docks and hubs, to mount your dock to a desk, wall, or other surfaces to give you the customized setup you need. Connected Device Transparency with the StarTech.com MAC Address Changer Utility The DK30C2DPPDUE, includes a free Windows?- application that enables you to better manage your enterprise network security. When you connect to your network through the ethernet port of the dock, the computer's MAC address is typically not broadcast to the network, as your network only sees the MAC address of the docking station. However, the StarTech.com MAC Address Changer or Cloning software enables the USB-C dock to use MAC address spoofing of the connected Windows laptop rather than the MAC address of the dock itself. This ensures your network administrators have full visibility of each device on the network and can monitor and limit activity accordingly. To request access to our MAC Address Changer utility, please contact our Technical Support Department by phone, live chat , or e-mail. More from the Manufacturer More from the Manufacturer
Network & Communication

Ethernet TechnologyGigabit Ethernet

Power Description

Maximum Power Supply Wattage60 W

Software

Operating System SupportedUbuntu 20.04

Physical Characteristics

Weight (Approximate)280.7 g
Height30.5 mm
Width78.7 mm
Depth221 mm

Technical Information

Device SupportedNotebook
Connectivity TechnologyWired
Number of Displays Supported2
Supported Resolutions4096 x 2160
5120 x 2880
Screen Mode Supported4K

Miscellaneous

Package ContentsDual 4K Universal Laptop Docking Station - USB-C / USB 3.0 - 60W PD*
1 x USB-C Cable (with Attached USB-C to USB-A Adapter)
1 x Universal Power Adapter (NA/JP, ANZ)
1 x Quick-Start Guide

CompatibilityDell Notebooks
HP Notebooks
Lenovo Notebooks
Lenovo Thinkpad T Series
Lenovo X1 Carbon
Microsoft Surface Pro7
Apple MacBook
USB-C Chromebooks

Environmentally FriendlyYes
Brand CompatibilityHP
Lenovo
Apple
Dell
Kensington Security SlotYes
Environmental ComplianceWaste Electrical and Electronic Equipment Directive (WEEE)
Restriction of Hazardous Substances (RoHS)


General Information

Product TypeDocking Station
Manufacturer Part NumberDK30C2DPPDUE
Manufacturer Website Addresshttp://www.startech.com/uk
Packaged Quantity1
ManufacturerStarTech.com
Product NameDual 4K Universal Laptop Docking Station - USB-C / USB 3.0 - 60W PD
Brand NameStarTech.com

Interfaces/Ports

Host InterfaceUSB Type C
HDMIYes
Network (RJ-45)Yes
Audio Line OutYes
DisplayPortYes
Total Number of USB Ports4
USB Type-CYes
USB Type-C Detail1 x USB-C
Number of USB Type-C Ports1
Number of USB Type-A Ports3
USB Type-AYes
