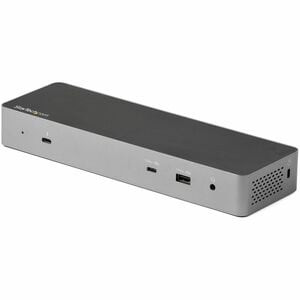

Startech Usb C Docking Station for Macbook Pro/Air-M1/M2/M3/M4 Thunderbolt Compa TB3CDK2DHUE

StarTech USB C Docking Station for MacBook Pro/Air-M1/M2/M3/M4 (Thunderbolt Compatible) - Dual HDMI/DisplayPort, 96W Power Delivery - Universal Thunderbolt 3 dock for TB3/USB Type-C laptops - Docking station with dual monitor 4K 60Hz DisplayPort 1.4 (DSC, single 8K) and/or HDMI, 3xUSB-A, 2xUSB-C 10Gbps, 96W PD, GbE, Audio - Windows/macOS - Auto install - Alternative to TB3DK2DPPDUE A high-performance Thunderbolt--- 3 Certified docking station with USB Type-C compatibility featuring dual monitor 4K 60Hz DSC support from either dual DisplayPort or dual HDMI 2.0 video outputs, 96W Power Delivery (100W peak power), 5x USB 3.2 Hub with 2x BC 1.2 fast charging ports, Gigabit Ethernet (PXE Boot/Wake-on-LAN) & headset ports. Flexible Dual Display Outputs This universal docking station features both dual DisplayPort 1.4 (Single 8K30 on HBR3 host) and dual HDMI video outputs that can be configured in three different ways:DisplayPort + DisplayPort HDMI + HDMI DisplayPort + HDMI Resolutions and video outputs are host-dependent. More Downstream USB Ports Featuring an integrated USB 3.2 hub, this docking station has 5 downstream USB ports: Front Facing:1x USB 3.2 Gen 2 Type-C (10 Gbps) with 15W (3A, 5V) Charging 1x USB 3.2 Gen 2 Type-A (10 Gbps) with B.C. 1.2 Fast-Charging Back Facing:2x USB 3.2 Gen 1 Type-A (5 Gbps) 1x USB 3.2 Gen 2 Type-C (10 Gbps) Easy to Set Up & Manage This universal Thunderbolt 3 / USB-C Dock has an automatic driver setup and includes a longer 0.8m (2.6ft) Thunderbolt 3 host cable, front-facing TB3/USB-C host port, front-facing LED indicator, mounting holes for the optional bracket, k-slot for security lock & MAC address changer utility. Enhance Productivity and Device Management with the StarTech Connectivity Tools Application Developed to improve performance and security, StarTech Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes: Advanced Windows Layout Utility: To setup and save custom windows layouts. Mac Address Pass-Through Utility: To improve network security. USB Event Monitoring Utility: To track and log connected USB devices Wi-Fi Auto Switch Utility: Enabling users to quickly access faster network speeds via wired LAN. For more information and to download the StarTech Connectivity Tools application, please visit: www.StarTech/Connectivity-Tools
Power Description

Maximum Power Supply Wattage96 W

Physical Characteristics

Weight (Approximate)249.5 g
Height30.5 mm
Width221 mm
Depth78.7 mm

General Information

Product TypeDocking Station
Manufacturer Part NumberTB3CDK2DHUE
startech/uk
ManufacturerStarTech
Product NameDocking Station
Brand NameStarTech

Miscellaneous

Package ContentsDocking Station
Universal Power Adapter
Power Cords (UK, EU)
Thunderbolt 3 Host Cable (80 cm)
User Manual

CompatibilitySupports Thunderbolt or USB4 laptops
Dual Display on M1, M2, M3 Max/Pro, M4 Pro/Max MacBooks
Single display on base M-series MacBooks
iPad Pro M1 & later

Brand CompatibilityHP
Lenovo
Apple
Dell
Kensington Security SlotYes

Technical Information

Cable Length79.25 cm
Device SupportedWorkstation
Notebook
Monitor
Connectivity TechnologyWired
FeaturesSecurity Lock
Charging CapabilityYes
Maximum Data Transfer Rate1.25 GB/s
Number of Displays Supported2
Supported Resolutions3840 x 2160
7680 x 4320
Screen Mode Supported4K @ 60Hz
8K @ 30Hz
Management FeaturesMAC Address Pass-through


Software

Operating System SupportedWindows 10
Mac OS X 10.14 Mojave
Windows 11
Windows 8
Ubuntu 18.04
Mac OS X 10.15 Catalina
Mac OS X 11.0 Big Sur
Mac OS X 12.0 Monterey
Ubuntu 20.04
Mac OS X 13.0 Ventura

Interfaces/Ports

Host InterfaceThunderbolt 3
USB Type C
HDMIYes
HDMI Version2
Number of HDMI Ports2
Network (RJ-45)Yes
Audio Line OutYes
DisplayPortYes
Number of DisplayPorts2
USB Type-CYes
USB Type-C Detail1 x USB 3.2 Gen 2 Type-C (10 Gbps) with 15W (3A, 5V) Charging, 1 x USB 3.2 Gen 2 Type-C (10 Gbps)
DisplayPort Version1.4
Number of USB Type-C Ports2
Number of USB Type-A Ports3
USB Power Delivery96W
Number of USB 3.2 Gen 1 Type-A Ports2
Number of USB 3.2 Gen 2 Type-A Ports1
