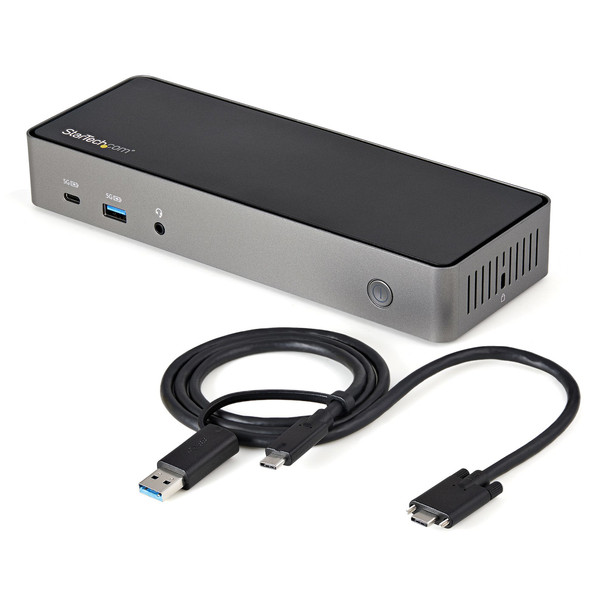

Startech USB-C & USB-A Dock - Hybrid Universal Triple Monitor Laptop Docking Sta DK31C3HDPDUE

USB-C & USB-A Dock | USB 3.2 Gen 2 10Gbps | 4K 60HZ HDMI | DisplayPort | 85W Power DeliveryThis USB-C Gen 2 10Gbps docking station turns your USB-C � or Thunderbolt� 3 MacBook Pro, Windows laptop, and Chromebook into a powerful workstation. A USB 3.2 Gen 2 Type-C dock features everything you need, from triple HDMI or DisplayPort video outputs up to 4K 60 Hz to 10Gbps USB-C & USB-A downstream peripheral ports to 85W Power Delivery. Older USB-A laptops are supported through universal hybrid USB-C/USB-A cable included.HDMI & DisplayPort for Triple Monitor OutputsThis USB-C Gen 2 docking station with DP 1.4 and HDMI 2.0 support, is a perfect choice for dual or triple monitor setup, supporting up to triple 4K 60Hz display output, with any combination of three DisplayPort or HDMI video interfaces, on USB-C Gen 2 (with DP 1.4 support) laptops, MacBooks and Windows-based Thunderbolt 3 laptops. Older USB-A laptops will only support dual monitor setup.HostDisplay OutputUSB-C Gen 1 or 2 (with DP 1.4)Triple Display - 3x 4K 60HzThunderbolt 3 (DP 1.4 Supported)Triple Display - 3x 4K 60HzUSB-C Gen 1 (with DP 1.2)Triple Display - 2x 4K 60Hz; 1x 4K 30HzUSB-A or USB-C (No DP Alt Mode)Dual Display - 2x 4K 60HzPower & Charge with 85W Power DeliveryPower and charge USB-C/Thunderbolt 3 workstation laptops & ultrabooks with 85 watt PDHigher power delivery, MORE than other USB-C 10G Triple monitor docks. Charge smartphones and other devices with two downstream front-facing charging ports with BC 1.2 for USB-A and USB-C devices. Fast-charge ports support always-on charging so devices will charge whether or not a host laptop is connected.Plenty of Downstream USB PortsThis USB-C Gen 2 docking station features 6 downstream USB ports in total to connect USB peripherals.� 1x USB-C 3.2 Gen 2 (10 Gbps)� 1x USB-A 3.2 Gen 2 (10 Gbps)� 1x USB-C 3.2 Gen 1 (5 Gbps)� 3x USB-A 3.2 Gen 1 (5 Gbps)Also included, is a gigabit Ethernet port with PXE Boot and WoL support, as well as 4-position TRRS stereo audio headset/mic port.Additional Security FeaturesThis USB-C/USB-A docking station comes with plenty of security features such as a screw-lock host port which includes a USB-IF Certified 1m 2-in-1 USB-C/USB-A screw-lock cable, and a K-slot for a Kensington style laptop lock.For added security, or flexibility where desk space is limited, this dock can be mounted to the wall, monitor, or underneath the desk with StarTech.com mounting brackets (SSPMSUDWM & SSPMSVESA). These mounting brackets (not included) are specifically designed for our docks and hubs to give you the customized setup you need.Enhance Productivity and Device Management with the StarTech.com Connectivity Tools ApplicationDeveloped to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:�Advanced Windows Layout Utility : To setup and save custom windows layouts.�Mac Address Pass-Through Utility : To improve network security.�USB Event Monitoring Utility : To track and log connected USB devices�Wi-Fi Auto Switch Utility : Enabling users to quickly access faster network speeds via wired LAN.For more information and to download the StarTech.com Connectivity Tools application, please visit: www.StarTech.com/Connectivity-ToolsThe StarTech.com Advantage

Features


FLEXIBLE MULTI DISPLAY SETUP: USB 3.2 Gen 2 10Gbps Type-C/A dock supports dual or triple monitor setup (up to 3x 4K 60Hz), using any combination of the 3x DisplayPort 1.4 & 3x HDMI 2.0


85W POWER DELIVERY: Power & charge USB-C/Thunderbolt 3 and 4 workstation laptops/ultrabooks incl Lenovo X1 Carbon, ThinkPad P Series, Dell Latitudes, Precision, XPS 15, HP Spectre, ZBook & MacBook Pro 16


UNIVERSAL DISPLAYLINK DOCKING STATION: Hybrid dock incl. combo 2-in-1 USB-C/USB-A USB-IF Certified host cable; Supports up to 3 extended displays on Macbook Pro/Air w/ Intel, M1, M1 Pro/Max, M2, Windows, macOS and Chrome OS


6-PORT USB HUB: 4x USB-A (1x 10Gbps), 2x USB-C (1x 10Gbps), incl. 2x BC 1.2 fast charge always-on front ports; USB-C Gen 1 & USB-A laptops will only support downstream port speeds up to USB 5Gbps


DEPLOYMENT READY: Docking station features a K-slot, 1m combo host cable; Gigabit Ethernet & headset ports; Windows, MacOS, Chrome OS; Mounting holes for mounting plates SSPMSUDWM/SSPMSVESA


CONNECTIVITY TOOLS: Provided with this device, the application improves performance and security, featuring MAC Address Changer, USB Event Monitoring, Windows Layout & Wi-Fi Auto Switch utilities



Weight & dimensions


Height

37 mm


Width

84 mm


Depth

233 mm


Weight

365 g



Packaging content


Cables included

USB Type-A to USB Type-C


Quick start guide

Yes


AC adapter included

Yes



Logistics data


Master (outer) case width

315 mm


Master (outer) case height

300 mm


Products per master (outer) case

6 pc(s)


Master (outer) case length

395 mm


Harmonized System (HS) code

84733020



Sustainability


Sustainability certificates

RoHS



Network


Ethernet LAN

Yes


Ethernet LAN (RJ-45) ports

1


Ethernet LAN data rates

10,100,1000 Mbit/s



Other features


Chipset

Realtek RTS5423, Realtek RTS5411, Realtek RTS5412, Realtek RTS5451, Realtek RTD2142, DisplayLink DL6950


Cable length

1 m



Software


Windows operating systems supported

Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64



Operational conditions


Operating temperature (T-T)

0 - 50 �C


Operating relative humidity (H-H)

0 - 95


Storage temperature (T-T)

-20 - 70 �C



Ports & interfaces


USB Power Delivery

Yes


Host interface

USB 3.2 Gen 2 (3.1 Gen 2) Type-C


Headphone outputs

1


DisplayPorts quantity

3


USB 3?2 Gen 1 (3?1 Gen 1) Type-C ports quantity

1


USB 3?2 Gen 2 (3?1 Gen 2) Type-A ports quantity

1


USB Power Delivery up to

85 W


Connectivity technology

Wired


HDMI ports quantity

3


USB 3?2 Gen 1 (3?1 Gen 1) Type-A ports quantity

3


USB 3?2 Gen 2 (3?1 Gen 2) Type-C ports quantity

1


HDMI version

2.0


DC-in jack

Yes


Combo headphone/mic port

Yes



Performance


Data transfer rate

10 Gbit/s


Cable lock slot type

Kensington


Cable lock slot

Yes


Maximum digital resolution

3840 x 2160 pixels


Product colour

Black, Grey


Card reader integrated

No


Housing material

Aluminium, Plastic


Certification

CE, FCC



Power


AC input voltage

100 - 240 V


Output voltage

20 V


Power plug type

Type M


Input current

2.5 A


Compatible power plug types

EU, UK


Output current

7.5 A



Packaging data


Package height

91 mm


Package depth

253 mm


Package width

172 mm


Package weight

1.7 kg
