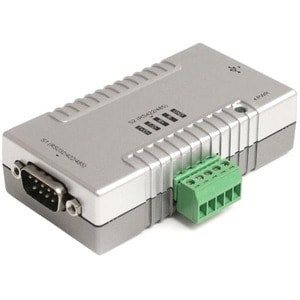

Startech Usb To Serial Adapter 2 Port Rs232 Rs422 Rs485 Com Port Retention Ftdi ICUSB2324852

StarTech USB to Serial Adapter 2 Port RS232 RS422 RS485 COM Port Retention FTDI USB to Serial Adapter USB Serial - 1 x 9-pin DB-9 Male RS-232/422/485 Serial The ICUSB2324852 2 Port USB to RS232 RS422 RS485 Serial Adapter with COM Retention lets you connect every type of serial device to your USB-enabled computer, whether it be for RS232, RS422, or RS485 communication. The adapter features a 9-pin (DB9) male and a 5-pin terminal block serial connector as well as dip-switch controls for easy port configuration with minimal software requirements. The adapter also supports using 2 ports simultaneously, including with mixed protocols; for example RS-232 on port 1, and RS-485 on port 2, or a number of other combinations. For a convenient, and clean installation in office or industrial settings, the RS232/RS422/RS485 USB Adapter is wall-mountable and fully powered via the host USB connection, providing power to the attached serial device without requiring an external power adapter. Backed by a StarTech 2-year warranty and free lifetime technical support. More from the Manufacturer More from the Manufacturer
Interfaces/Ports

Number of USB Ports1
Number of Serial Ports (External)1

Miscellaneous

Additional Information
OS Compatibility:Windows?� CE (4.2, 5.0, 6.0), XP Embedded, 98SE, 2000, XP, Vista, 7, 8, 8.1, 10, 11
Windows Server?� 2003, 2008 R2, 2012, 2012 R2, 2016, 2019, 2022
macOS 10.6 to 10.15, 11.0, 12.0, 13.0
Linux Kernel 3.0.x and up - LTS Versions only

Environmentally FriendlyYes
TAA CompliantYes

Physical Characteristics

Weight (Approximate)300 g
Form FactorExternal
Length82.3 mm
Height22.9 mm
Width43.2 mm


Technical Information

Host InterfaceUSB 2.0
Data Transfer Rate921.6kB/s Serial Port
Platform SupportedPC

General Information

Product TypeSerial Adapter
Manufacturer Part NumberICUSB2324852
startech/uk
Packaged Quantity1
ManufacturerStarTech
Product Name2 Port USB to RS232 RS422 RS485 Serial Adapter with COM Retention
Brand NameStarTech
