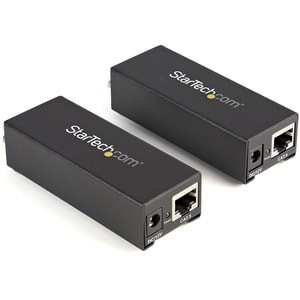

Startech Vga Over Cat5 Extender 250 Ft 80M 1 Local And 1 Remote Unit Vga Video O ST121UTPEP

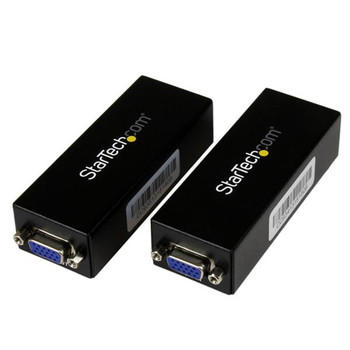

StarTech VGA Over CAT5 Extender 250 ft (80m) 1 Local and 1 Remote Unit VGA Video Over Ethernet Extender Kit (ST121UTPEP) - Extend a VGA signal to a remote display using Cat5 cabling - vga extender - vga to cat5 - cat 5 vga extender - cat5 vga extender - monitor extender The ST121UTPEP VGA Video Extender over Cat5 - Point to Point lets you connect a remote VGA display/projector up to 80m (250ft) away from the VGA signal source. The ST121UTPEP is a bundled kit that includes both a local and a remote unit providing a complete end to end solution for a single source/display connection, transmitting the source VGA signal over a standard Ethernet cable (Cat5or better UTP cable, terminated with RJ45 connectors). Offering convenient and cost-effective VGA distribution, the ST121UTPEP only requires one power adapter which can be installed at either the local or remote end of the connection, depending on what is most convenient for your application. To ensure a tidy installation, the ST121UTPEP includes a mounting bracket for the receiver to help eliminate unnecessary cable tangles. Backed by a StarTech 2-year warranty and free lifetime technical support. More from the Manufacturer More from the Manufacturer
Media & Performance

Twisted Pair Cable StandardCategory 5e
Media Type SupportedTwisted Pair

Video

Graphics ModesWUXGA
Maximum Video Resolution1920 x 1200

Technical Information

Connectivity TechnologyWired
Maximum Operating Distance80 m
Number of Output Devices Supported1
Number of Input Devices Supported1

Physical Characteristics

Transmitter Height25.40 mm
Transmitter Width137.16 mm
Transmitter Depth99.06 mm
Receiver Height25.40 mm
Receiver Width137.16 mm
Receiver Depth99.06 mm
Transmitter Weight (Approximate)263 g
Receiver Weight (Approximate)263 g
Product ColorBlack
Color FamilyBlack


Miscellaneous

Additional InformationExtends the connection distance of VGA displays by up to 250 feet (80 meters) offering flexibility in the placement of your equipment
Included mounting bracket provides versatile mounting options such as a wall, desk or cabinet, for a clean and manageable installation
The ST121UTPEP only requires one power adapter, installed at either the local or remote unit, wherever is most convenient for the application.

Package ContentsVGA to Cat 5 Monitor Extender Kit (250ft/80m) - VGA Cat5 Extender
Power Adapter
Mounting Bracket

Certifications & StandardsCE
FCC

Environmentally FriendlyYes
TAA CompliantYes

Interfaces/Ports

Number of Network (RJ-45) Ports2
Network (RJ-45)Yes
Number of VGA Outputs1
VGA InYes
VGA OutYes
Number of VGA Inputs1

General Information

Product TypeVideo Extender Transmitter/Receiver
Manufacturer Part NumberST121UTPEP
startech/uk
Packaged Quantity1 Kit
ManufacturerStarTech
Product NameVGA to Cat 5 Monitor Extender Kit (250ft/80m) - VGA Cat5 Extender
Brand NameStarTech
