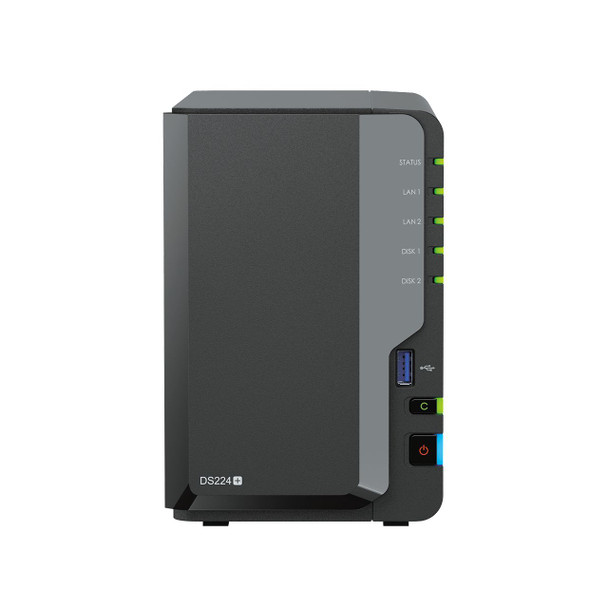

Synology DS224+ Desktop. 2-BAY. QUAD CORE. DS224+

DiskStation DS224+
Compact data storage for edge deployments

Consolidate and safeguard
Protect all your data with integrated security features and centralized access.

Manage important data
Share, back up, and access files, photos, surveillance video, and more.

Minimize energy impact
15 watts under full operation keeps operating costs low.

Simply faster
DS224+ is faster at indexing files in Synology Drive and Synology Photos and more capable of running demanding web applications compared to previous-generation systems.1

Store, share, and protect
Manage all your documents, images, and other files, back up applications and devices, and protect your property with professional video surveillance.

Private cloud for data sharing
Hybrid work in the private cloud
Store, sync, access, and share data from any device, wherever you are. Work together seamlessly across different platforms, accessing files through mobile apps, desktop clients, or a browser-based interface. Quickly and easily roll back files in case of unwanted deletion or modification thanks to smart versioning.

Multi-layered backup
Back up workstations, smartphones, cloud apps, and more
Consolidate and automate backup tasks for workstations, file servers, VMs, SaaS applications, and more with Active Backup Suite. Administer device backups remotely through a centralized portal and quickly restore specific files or entire devices to keep your business up and running. Take advantage of built-in remote backup solutions designed to protect your data with seamless 3-2-1 backup configurations.

Smart surveillance management
Synology Surveillance Station
Protecting your business has never been easier, with centralized management, support for over 8,300 IP camera models, and remote monitoring and playback. Synology�s video management system provides all the tools you need for live monitoring, investigation, management, and backup.3

Btrfs: advanced file system for data protection
The Synology DiskStation Manager (DSM) operating system that powers the DS224+ uses the advanced Btrfs file system, which safeguards your data against corruption and allows for the reversal of unintended or malicious changes through the use of snapshot technology.

Performance backed by Synology drives
Leverage high sustained performance and reliability with well-engineered drives designed specially for Synology systems.4

Design



Chassis type



Desktop


Cooling type



Active


Fan diameter



9.2 cm


LED indicators



Y, Yes


Number of fans



1 fan(s)


Product colour



Black


Memory



Internal memory



2 GB


Internal memory type



DDR4


Maximum RAM supported



6 GB


Network



Ethernet LAN



Yes


iSCSI support



Yes


Supported network protocols



SMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFS Kerberized sessions, iSCSI, HTTP, HTTPs, FTP, SNMP, LDAP, CalDAV


Wake-on-LAN ready



Yes


Operational conditions



Operating relative humidity (H-H)



5 - 95 %


Operating temperature (T-T)



0 - 40 �C


Storage temperature (T-T)



-20 - 60 �C


Package dimensions



Gross Weight (Package, kg)



2.258 kg


Packaging content



Cables included



AC, LAN (RJ-45)


External power adapter



Yes


Performance



Access Control List (ACL)



Yes


Backup function



Yes


Browser supported



Google Chrome, Firefox, Microsoft Edge, Safari


Device class



Home & Home Office


Noise level



22 dB


Number of users



1200 user(s)


On/off switch



Yes


Type



NAS


USB copy function



Yes


Ports & interfaces



Ethernet LAN (RJ-45) ports



2


USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity



2


USB port



Yes


Power



AC input frequency



50 - 60 Hz


AC input voltage



100 - 240 V


Power supply unit (PSU) capacity



60 Watt


Processor



CPU configuration (max)



1


Processor boost frequency



2.7 GHz


Processor cores



4


Processor family



Intel� Celeron�


Processor frequency



2 GHz


Processor manufacturer



Intel


Processor model



J4125


Product dimensions



Net Weight (Product, kg)



1.3 kg


Product Depth



23.22 cm


Product Height



16.5 cm


Product Width



10.8 cm


Storage



Installed storage drive type



No


Number of storage drives supported



2


RAID levels



0, 1, JBOD


RAID support



Yes


Storage drive interface



Serial ATA


Storage drive size



2.5/3.5 "


Storage drives installed



No


Supported file systems



BTRFS, Fat, HFS+, NTFS, exFAT, ext3, ext4


Supported storage drive types



HDD & SSD


Vendor information



Brand Name


Synology


Warranty



2 Year(s)
