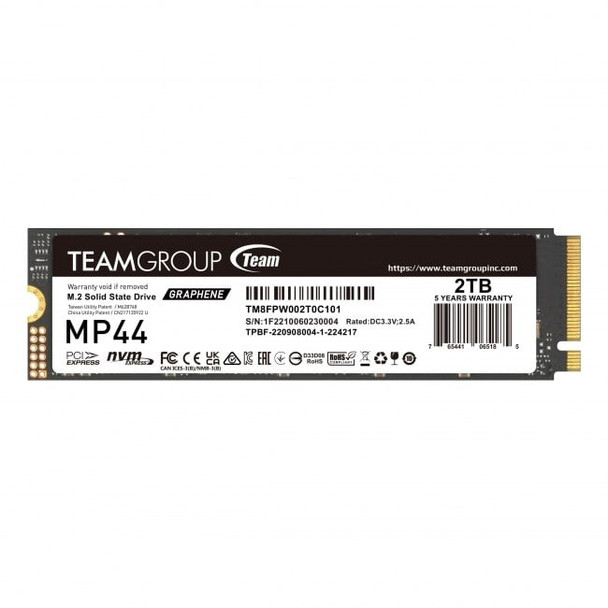

Team Group MP44 2 TB M.2 PCI Express 4.0 NVMe TM8FPW002T0C101

Gargantuan space for all-encompassing data storage
MP44 M.2 PCIe 4.0 SSD features a maximum capacity of 8TB, offering all-encompassing storage for documents, pictures, videos, games and all kinds of data on the computer.

Heat dissipating graphene label, the best enhancement to motherboard heat sink
MP44 M.2 PCIe 4.0 SSD adopts TEAMGROUP-s exclusive patented heat dissipating graphene label. Less than 1mm thick of M.2 2280 size, it eradicates any mechanical interference in assembly. Paired with the onboard M.2 heat sink, the heat dissipating performance is superior to that of the native heat sink alone. It is undoubtedly the best enhancement to the native heat sink.

PCIe Gen4 ultra-speed performance exceeding 7,000MB/s
It adopts the PCIe Gen4x4 interface, featuring read/write speeds of up to 7,400/7,000 MB/s that guarantee a smooth user experience.

SSD patented monitoring
TEAMGROUP-s exclusive patented intelligent SSD monitoring software, S.M.A.R.T, monitors product status and health at all times. It also monitors product quality and performance effortlessly through fast and easy setting and inspection.

Recyclable packaging contributing to environmental sustainability
MP44 M.2 PCIe 4.0 SSD uses recyclable packaging. It has passed environmental protection certifications, including RoHS, REACH, and ESG, contributing to sustainability endeavors.

Specs




Features


SSD capacity

The Solid State Drive's data storage capacity.

2 TB


SSD form factor

The size of the solid-state drive, given in inches

M.2


Interface

Interface ports to connect pieces of equipment. USB (Universal Serial Bus) has become the most popular wired interface to connect peripherals. USB 2.0 supports speeds up to 480 Mbit/s (USB 1: 12 Mbit/s). The interface FireWire is also known as the IEEE 1394 standard. Enhanced IDE (EIDE)is sometimes referred to as Fast ATA, Fast IDE or ATA-2.

PCI Express 4.0


NVMe

NVM Express (NVMe) or Non-Volatile Memory Host Controller Interface Specification (NVMHCIS) is an open logical device interface specification for accessing non-volatile storage media attached via a PCI Express (PCIe) bus. NVM Express, as a logical device interface, has been designed to capitalize on the low latency and internal parallelism of solid-state storage devices.




Component for

What this product is used as a part of (component for).

PC


Hardware encryption




M.2 SSD size

2280 (22 x 80 mm)


Read speed

The speed at which a device can read data.

7400 MB/s


Write speed

The speed at which a device can write data.

7000 MB/s


Random read (4KB)

650000 IOPS


Random write (4KB)

660000 IOPS


PCI Express interface data lanes

x4


S.M.A.R.T. support




Mean time between failures (MTBF)

Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism.
00000 h



Features


Windows operating systems supported

Windows vesions wich can be used with the device.

Windows 10, Windows 11, Windows 7, Windows 8, Windows 8.1, Windows Vista


Linux operating systems supported

8 RT. Linux (9.4, 9.5), Red Hat Enterprise Linux 5.0 (supported with a pre-built package); SUSE Linux (10.3, 11.0, 11, 11.1, 11.2), Fedora (9, 9.0, 10, 10.0, 11.0, 11, 12, 12.0), Ubuntu (8.04, 8.04.1, 8.04.2, 8.10, 9.04, 9.10, 10.04), Debian (5.0, 5.0.1, 5.0.2, 5.0.3)

Kernel 2.6.33, Kernel 3.12, Kernel 3.17, Kernel 3.3, Kernel 4.6.4, Linux Kernel 5.10, Linux Kernel 5.11, Linux Kernel 5.12, Linux Kernel 5.13, Linux Kernel 5.14, Linux Kernel 5.15, Linux Kernel 5.8, Linux Kernel 5.9


TBW rating

2500


Power


Operating voltage

Defines the range of operating voltages available

3.3 V


Weight & dimensions


Width

The measurement or extent of something from side to side.

22 mm


Depth

The distance from the front to the back of something.

80 mm


Height

The measurement of the product from head to foot or from base to top.

3.7 mm


Weight

Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.

7 g


Operational conditions


Operating temperature (T-T)

The minimum and maximum temperatures at which the product can be safely operated.

0 - 70 -C


Storage temperature (T-T)

The minimum and maximum temperatures at which the product can be safely stored.

-40 - 85 -C


Operating vibration

Environmental requirements for vibration in operating mode
G


Operating shock

Environmental requirements for optimal protection from impact in operating mode
00 G
