Thermaltake

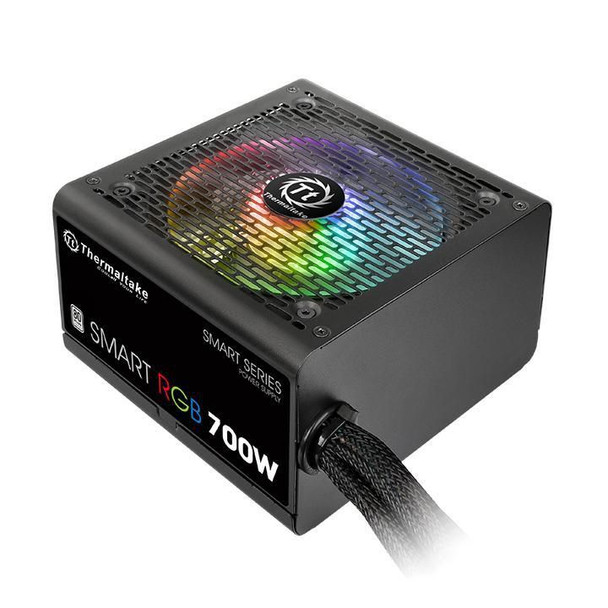

ThermalTake PS-SPR-0700NHSAWE-1 Netzteil Smart RGB 700W PS-SPR-0700NHSAWE-1
(No reviews yet)
Write a Review
- UPC:
- 4711246870475
- MPN:
- PS-SPR-0700NHSAWE-1
- Condition:
- New
- Availability:
- Available to Order: 3 - 4 weeks leadtime
Description
Thermaltake, as the pioneer who incorporates RGB lights into PSU, has launched the Thermaltake Smart RGB Series, coming with a pre-installed, 256 colors RGB fan hub with 15 lighting modes to choose from and built-in memory.
Featuring capacities ranging from 500W to 700W and 80 PLUS Standard certification, Smart RGB Series adopts the high quality components and silent design that always accommodate any mainstream build under any circumstance.
One Button to Your Desired Color
By pressing the RGB lighting button, the fan color can be switched among variants including Pulse Red/Green/Blue/Yellow/Purple/Light Blue/White, 256 Color RGB Cycle, Solid Red/Green/Blue/Yellow/Purple/Light Blue/ White, and a LED Off mode. The fan is also constructed with a built-in memory function, saving the color applied and insuring the same color selection every time you boot your PC.
10 LED Light Bulbs
The Smart RGB Series adopts 10 LED light bulbs to enhance the brightness and spawn an advanced user experience in the world of illumination.
Ultra Quiet 120mm Fan
SMART RGB series adopt 120mm cooling fan with intelligent RPM control guarantees excellent cool performance and silent operation.
High Amperage Single +12V Rail
Smart RGB 700W White is equipped with a powerful single +12V rail, eliminating the limitations caused by voltage distributions, delivering the power your CPU and VGA demand in any situations. Providing the best compatibility, conversion efficiency and stable voltage output.
Multiple Connectors
Smart RGB offers cable selection for users while powering the system at an advantageous voltage. Further, the multiple connectors make cable installation an easy task.
80 PLUS 230V Standard Certified and Kaby Lake Ready
Deliver up to 87% efficiency under real world load conditions to promise low power losses. Additionally, Smart RGB Series has been optimized to work with Intel’s latest, seventh-generation Kabylake processors to achieve maximum energy saving.
RGB Lighting Provides Best Aesthetics for All Chassis
Smart RGB Series is the best idea for users to go with when they are looking for an RGB PSU which permits remarkable functionality and aesthetics in all cases, especially Open Frame or Tower cases.
Design
Cooling type
Active
Fan diameter
12 cm
Fan location
Top
Illumination
Yes
Number of fans
1 fan(s)
Product colour
Black
Logistics data
Harmonized System (HS) code
84733020
Operational conditions
Operating relative humidity (H-H)
20 - 85 %
Operating temperature (T-T)
5 - 40 °C
Storage relative humidity (H-H)
10 - 95 %
Storage temperature (T-T)
-40 - 55 °C
Other features
Illumination colour
Multi
Performance
80 PLUS certification
80 PLUS
ATX version
2.3
Mean time between failures (MTBF)
100000 Hour
Noise level
28.1 dB
Power supply unit (PSU) form factor
ATX
Purpose
PC
Safety
CE/CB/TUV/ EAC
Ports & interfaces
ATX power connector (20+4 pin)
Yes
CPU power cable length
55 cm
CPU power connector (4+4 pin)
Yes
Floppy disk drive cable length
10 cm
Floppy disk drive connector
Yes
Floppy drive power connector
1
Motherboard power cable length
50 cm
Motherboard power connector
20+4 pin ATX
Number of SATA power connectors
6
PCI Express connector
Yes
PCI Express power connectors (6+2 pin)
2
Peripheral (Molex) power connectors (4-pin)
5
Power
AC input frequency
50 - 60 Hz
AC input voltage
230 V
Combined power (-12V)
6 Watt
Combined power (+12V)
648 Watt
Combined power (+3.3V)
120 Watt
Combined power (+5V)
120 Watt
Combined power (+5Vsb)
12.5 Watt
Efficiency
86 %
Hold time
16 Millisecond
Input current
9 A
Max output current (-12V)
0.5 A
Max output current (+12V)
54 A
Max output current (+3.3V)
24 A
Max output current (+5V)
17 A
Max output current (+5Vsb)
2.5 A
Power Factor Correction (PFC) type
Active
Power Good signal delay range
100 - 500 Millisecond
Total power
700 Watt
Vendor information
Brand Name
ThermalTake
Warranty
1 Year(s)
