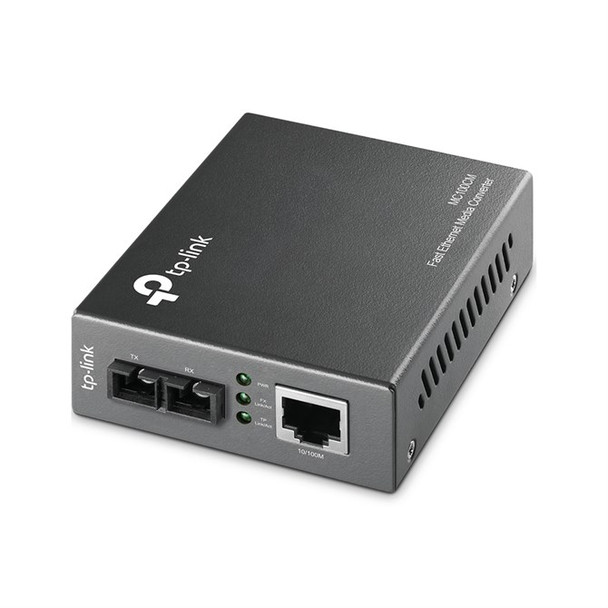

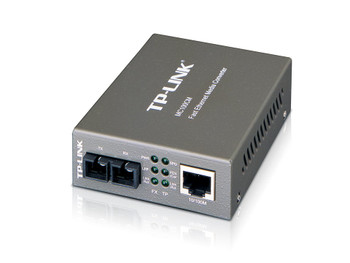

TP-Link 10/100Mbps Multi-Mode Media Converter MC100CM

What This Product Does
The MC100CM is a media converter designed to convert 100BASE-FX fiber to 100Base-TX copper media or vice versa. Designed under IEEE 802.3u 10/100Base-TX and 100Base-FX standards, the MC100CM is designed for use with multi-mode fiber cable utilizing the SC-Type connector. The MC100CM supports longwave (LX) laser specification at a full wire speed forwarding rate. It works at 1310nm on both transmitting and receiving data.

Other features of this module include the ability to be used as a stand alone device (no chassis required) or with TP-LINK´s 19´´system chassis, Auto MDI/MDI-X for TX port, Auto negotiation of duplex mode on TX port and front panel status LEDs. The MC100CM will transmit at extended fiber optic distances utilizing multi-mode fiber up to 2 kilometers.

Specs




Network


Maximum data transfer rate

The maximum speed with which data can be transmitted from one device to another.
00 Mbit/s


Networking standards

The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.

IEEE 802.3, IEEE 802.3u, IEEE 802.3x


Ethernet interface type

Gigabit Ethernet


Ethernet LAN data rates

The different speed levels of the Ethernet LAN connection.
00 Mbit/s


Fiber ethernet cabling technology
0BASE-FX


Cable types supported

Cat3, Cat4, Cat5, Cat5e


Performance


Maximum transfer distance

The greatest distance over which the data/signal can be transferred.
00 m


Wavelength

The distance over which a wave repeats itself. The wavelength determines the characteristics of the wave e.g. red light has a different wavelength to blue light.
10 nm


Features


Internal

The product is built in.




LED indicators




Product colour

The colour e.g. red, blue, green, black, white.

Black


Ports & interfaces


Connectivity technology

The technology that enables connectivity of the device, e.g. wired or wireless.

Wired


Ethernet LAN (RJ-45) ports

Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.

1


Fiber ports quantity

The number of sockets (ports) for fibers (cables).

1


Fiber optic connector

This terminates the end of an optical fiber, and enables quicker connection and disconnection than splicing. The connectors mechanically couple and align the cores of fibers so light can pass. Better connectors lose very little light due to reflection or misalignment of the fibers. In all there have been about 100 types of optic fiber connectors produced.

SC



Power


Power consumption (max)

The maximum amount of power used by the device.

2.5 W


Weight & dimensions


Width

The measurement or extent of something from side to side.

94.5 mm


Depth

The distance from the front to the back of something.

73 mm


Height

The measurement of the product from head to foot or from base to top.

27 mm


Operational conditions


Operating temperature (T-T)

The minimum and maximum temperatures at which the product can be safely operated.

0 - 40 °C


Storage temperature (T-T)

The minimum and maximum temperatures at which the product can be safely stored.

-40 - 70 °C


Operating relative humidity (H-H)
- 90%


Storage relative humidity (H-H)

5 - 90%


Packaging data


Package width

The distance from one side of the packaging to the other.
5 mm


Package depth

The distance from the front to the back of the packaging.
4 mm


Package height

The distance from the top to the bottom of the packaging.

65 mm


Package weight

Weight of the packaged product.

380 g


Certificates


Certification

FCC, CE
