Tplink

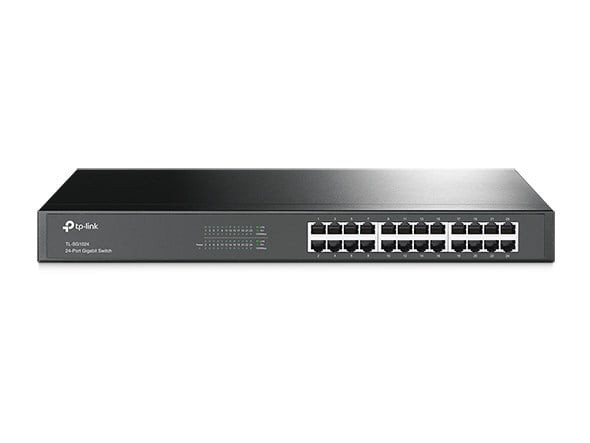

TP-Link 24-Port Gigabit Rackmount Network Switch TL-SG1024
(No reviews yet)
Write a Review
- UPC:
- 6935364020101
- MPN:
- TL-SG1024
- Condition:
- New
- Availability:
- Available with FREE Delivery (usually delivered within 5-7 working days)
Description
What This Product Does
The TL-SG1024 Gigabit Ethernet Switch provides you with a high-performance, low-cost, easy-to-use, seamless and standard upgrade to improve old network to 1000Mbps network. All 24 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SG1024 can save power consumption and 80% of the packaging material can be recycled, making it an eco-friendly solution for your business network.
TP-LINK Green Technology
This new generation TL-SG1024 Gigabit Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status to limit the carbon footprint of your network. It also complies with the EU’S RoHS, prohibiting the use of certain hazardous materials. Besides, 80% of the packaging material can be recycled.
High Performance
All 24 ports are Gigabit RJ-45 ports which can provide large file transferring and also be compatible with 10Mbps and 100Mbps Ethernet devices. Featuring non-blocking switching architecture, TL-SG1024 forwards and filters packets at full wire-speed for maximum throughput. With 10KB Jumbo frame, the performance of large files transfers is improved significantly. And IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the traffic congestion and make The TL-SG1024 work reliably. It’s a perfect choice to update your network to Gigabit while protecting your previous investment properly.
Ease of Use
The auto features of this gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance
Specs
Management features
Switch type
What switch device has, managed or unmanaged.
Unmanaged
Quality of Service (QoS) support
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
The number of basic switching RJ-45 Ethernet ports (sockets).
24
Basic switching RJ-45 Ethernet ports type
The type/category of basic switching RJ-45 Ethernet ports (sockets).
Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity
24
Network
Networking standards
The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.
IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
G support
The product can use Oracle 10G, which is a database management system introduced in 2003.
Copper ethernet cabling technology
00BASE-T, 100BASE-TX, 10BASE-T
Full duplex
A full-duplex system allows communication in both directions, and unlike half-duplex, allows this to happen simultaneously.
Half duplex
Flow control support
Auto MDI/MDI-X
A Medium Dependent Interface (MDI) describes the interface (both physical and electrical) in a computer network from a physical layer implementation to the physical medium used to carry the transmission. Ethernet over twisted pair also defines a medium dependent interface crossover (MDIX) interface. Auto-MDIX ports on newer network interfaces detect if the connection would require a crossover, and automatically chooses the MDI or MDIX configuration to properly match the other end of the link.
Auto-negotiation
Data transmission
Supported data transfer rates
Rates at which data can be transferred. May vary according to network configurations.
/100/1000 Mbps
Switching capacity
The data transfer capacity of the switch per second.
48 Gbit/s
Forwarding rate
35.7 Mpps
MAC address table
The MAC address is the 'Media Access Control Address'. It is a unique address given to a network interface controller (NIC) in a device. A MAC address table shows the addresses in a table format.
8000 entries
Store-and-forward
Maximum data transfer rate
1 Gbit/s
Jumbo frames support
Jumbo frames
000
Protocols
Supported network protocols
Network protocols tested as compatible with this product e.g. FTP,HTML, POP.
CSMA/CD, TCP/IP
Design
Rack mounting
The type of mounting that can position devices in a shelving system (rack).
Form factor
The shape or design of the product.
1U
Product colour
The colour e.g. red, blue, green, black, white.
Black
LED indicators
Power
Power source
What is providing power for the product e.g. mains electricity.
AC
Power
Power supply included
There is a power supply with this product.
AC input voltage
The voltage of the AC electricity that is inputted into the product.
0 - 240 V
AC input frequency
50 - 60 Hz
Power consumption (max)
The maximum amount of power used by the device.
.62 W
Other features
Connectivity technology
The technology that enables connectivity of the device, e.g. wired or wireless.
Wired
Bandwidth
48 Gbit/s
Connectivity LEDs
Dimensions (W x D x H) (imperial)
439.4 x 180.3 x 43.2 mm (17.3 x 7.1 x 1.7")
Operational conditions
Operating temperature (T-T)
The minimum and maximum temperatures at which the product can be safely operated.
0 - 40 °C
Storage temperature (T-T)
The minimum and maximum temperatures at which the product can be safely stored.
-40 - 70 °C
Operating relative humidity (H-H)
- 90%
Storage relative humidity (H-H)
5 - 90%
Operating temperature (T-T)
32 - 104 °F
Heat dissipation
The heat generated by the power supply.
46.44 BTU/h
Weight & dimensions
Width
The measurement or extent of something from side to side.
440 mm
Depth
The distance from the front to the back of something.
0 mm
Height
The measurement of the product from head to foot or from base to top.
44 mm
Packaging content
Cables included
AC
User guide
Rack mount kit
Packaging data
Package width
The distance from one side of the packaging to the other.
250 mm
Package depth
The distance from the front to the back of the packaging.
528 mm
Package height
The distance from the top to the bottom of the packaging.
80 mm
Package weight
Weight of the packaged product.
2.13 kg
Certificates
Certification
FCC, CE, RoHS
View AllClose
The TL-SG1024 Gigabit Ethernet Switch provides you with a high-performance, low-cost, easy-to-use, seamless and standard upgrade to improve old network to 1000Mbps network. All 24 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SG1024 can save power consumption and 80% of the packaging material can be recycled, making it an eco-friendly solution for your business network.
TP-LINK Green Technology
This new generation TL-SG1024 Gigabit Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status to limit the carbon footprint of your network. It also complies with the EU’S RoHS, prohibiting the use of certain hazardous materials. Besides, 80% of the packaging material can be recycled.
High Performance
All 24 ports are Gigabit RJ-45 ports which can provide large file transferring and also be compatible with 10Mbps and 100Mbps Ethernet devices. Featuring non-blocking switching architecture, TL-SG1024 forwards and filters packets at full wire-speed for maximum throughput. With 10KB Jumbo frame, the performance of large files transfers is improved significantly. And IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the traffic congestion and make The TL-SG1024 work reliably. It’s a perfect choice to update your network to Gigabit while protecting your previous investment properly.
Ease of Use
The auto features of this gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance
Specs
Management features
Switch type
What switch device has, managed or unmanaged.
Unmanaged
Quality of Service (QoS) support
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
The number of basic switching RJ-45 Ethernet ports (sockets).
24
Basic switching RJ-45 Ethernet ports type
The type/category of basic switching RJ-45 Ethernet ports (sockets).
Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity
24
Network
Networking standards
The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.
IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
G support
The product can use Oracle 10G, which is a database management system introduced in 2003.
Copper ethernet cabling technology
00BASE-T, 100BASE-TX, 10BASE-T
Full duplex
A full-duplex system allows communication in both directions, and unlike half-duplex, allows this to happen simultaneously.
Half duplex
Flow control support
Auto MDI/MDI-X
A Medium Dependent Interface (MDI) describes the interface (both physical and electrical) in a computer network from a physical layer implementation to the physical medium used to carry the transmission. Ethernet over twisted pair also defines a medium dependent interface crossover (MDIX) interface. Auto-MDIX ports on newer network interfaces detect if the connection would require a crossover, and automatically chooses the MDI or MDIX configuration to properly match the other end of the link.
Auto-negotiation
Data transmission
Supported data transfer rates
Rates at which data can be transferred. May vary according to network configurations.
/100/1000 Mbps
Switching capacity
The data transfer capacity of the switch per second.
48 Gbit/s
Forwarding rate
35.7 Mpps
MAC address table
The MAC address is the 'Media Access Control Address'. It is a unique address given to a network interface controller (NIC) in a device. A MAC address table shows the addresses in a table format.
8000 entries
Store-and-forward
Maximum data transfer rate
1 Gbit/s
Jumbo frames support
Jumbo frames
000
Protocols
Supported network protocols
Network protocols tested as compatible with this product e.g. FTP,HTML, POP.
CSMA/CD, TCP/IP
Design
Rack mounting
The type of mounting that can position devices in a shelving system (rack).
Form factor
The shape or design of the product.
1U
Product colour
The colour e.g. red, blue, green, black, white.
Black
LED indicators
Power
Power source
What is providing power for the product e.g. mains electricity.
AC
Power
Power supply included
There is a power supply with this product.
AC input voltage
The voltage of the AC electricity that is inputted into the product.
0 - 240 V
AC input frequency
50 - 60 Hz
Power consumption (max)
The maximum amount of power used by the device.
.62 W
Other features
Connectivity technology
The technology that enables connectivity of the device, e.g. wired or wireless.
Wired
Bandwidth
48 Gbit/s
Connectivity LEDs
Dimensions (W x D x H) (imperial)
439.4 x 180.3 x 43.2 mm (17.3 x 7.1 x 1.7")
Operational conditions
Operating temperature (T-T)
The minimum and maximum temperatures at which the product can be safely operated.
0 - 40 °C
Storage temperature (T-T)
The minimum and maximum temperatures at which the product can be safely stored.
-40 - 70 °C
Operating relative humidity (H-H)
- 90%
Storage relative humidity (H-H)
5 - 90%
Operating temperature (T-T)
32 - 104 °F
Heat dissipation
The heat generated by the power supply.
46.44 BTU/h
Weight & dimensions
Width
The measurement or extent of something from side to side.
440 mm
Depth
The distance from the front to the back of something.
0 mm
Height
The measurement of the product from head to foot or from base to top.
44 mm
Packaging content
Cables included
AC
User guide
Rack mount kit
Packaging data
Package width
The distance from one side of the packaging to the other.
250 mm
Package depth
The distance from the front to the back of the packaging.
528 mm
Package height
The distance from the top to the bottom of the packaging.
80 mm
Package weight
Weight of the packaged product.
2.13 kg
Certificates
Certification
FCC, CE, RoHS
Additional Information
Shipping: |
Usually shipped within 3-5 working days |
Delivery: |
Usually delivered within 5-7 working days |
