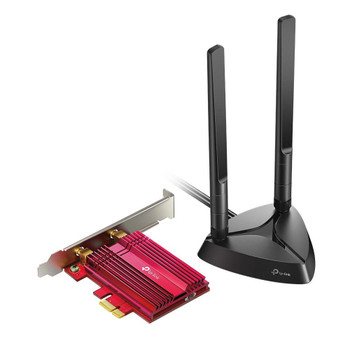

TP-Link Archer TX3000E Internal WLAN / Bluetooth 2402 Mbit/s ARCHERTX3000E

Next-Level Gaming
The very latest Wi-Fi 6 standard guarantees extreme speed, ultra-low latency, and uninterrupted connectivity. Utilizing the Wi-Fi 6 foundation, Archer TX3000E is designed to liberate your gaming from cables and fully optimize your gameplay. Discover the missing component of your gaming arsenal!

Stay Immersive 24-QAM and a 160 MHz bandwidth deliver powerful, continuous WiFi to fully unlock the potential of your Wi-Fi 6 router. Wi-Fi 6 drives your PC to peak performance so your setup keeps pace with your jaw-dropping skills.

Incredibly Smooth Gameplay
Lower latency is essential to gaming success. Revolutionary OFDMA reduces lag by up to 75%. Enjoy ultra-responsive real-time gaming or immersive VR experiences.

Broader Coverage
Two multi-directional and high-performance antennas with a magnetized base extends your existing WiFi reception capabilities, allowing you to game anywhere and anytime. Place the magnetized antenna base anywhere on your desktop to find the optimal location for signal reception.

Simultaneous Entertainment for All
A revolutionary combination of OFDMA and MU-MIMO technologies ensures the most efficient WiFi connection for your PC. OFDMA technology divides band resources into smaller units while MU-MIMO allows more devices to communicate simultaneously—without lag.

Bluetooth 5.0 Compatible
Archer TX3000E is compatible with the latest Bluetooth 5.0 Technology, achieving 2× faster speed and 4× broader coverage than Bluetooth 4.2. Connect as many devices as you want, including game controllers, headphones, and keyboards, to enjoy a smoother experience.

Advanced Security
The latest security enhancements—WPA3 provides more secure and individualized encryption in personal password safety, protecting your network from wireless hacking. Always keep your network safe while gaming online.

Fine Crafting for Ultimate Performance
Built with a specialized heatsink crafted to improve stability and reliability even in hot environments. Careful attention to every detail, such as gold plating on every contactor to resist oxidation, delivers a superior network experience.

Specs




Ports & interfaces


Connectivity technology

The technology that enables connectivity of the device, e.g. wired or wireless.

Wireless


Host interface

Interface that enables a host controller to communicate with a driver.

PCI Express


Interface

Interface ports to connect pieces of equipment. USB (Universal Serial Bus) has become the most popular wired interface to connect peripherals. USB 2.0 supports speeds up to 480 Mbit/s (USB 1: 12 Mbit/s). The interface FireWire is also known as the IEEE 1394 standard. Enhanced IDE (EIDE)is sometimes referred to as Fast ATA, Fast IDE or ATA-2.

WLAN / Bluetooth


Network


Maximum data transfer rate

The maximum speed with which data can be transmitted from one device to another.

2402 Mbit/s


Networking standards

The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.

IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n


Wi-Fi

Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves.




Wi-Fi band

The frequency bands the product features.

Dual-band (2.4 GHz / 5 GHz)


Frequency range

2.4 - 5 GHz


Top Wi-Fi standard

Connection of this device is done via Wi-Fi in a high standard.

Wi-Fi 6 (802.11ax)


Wi-Fi standards

The type of wireless local area network (LAN). It can be ad-hoc, where units in a network communicate peer-to-peer, or Infrastructure, where units communicate with each other via an access point A LAN interconnects computers in a small area e.g. home, school or office.

802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)


WLAN data transfer rates supported

54, 300, 574, 1733, 2402 Mbit/s


Modulation

Modulation is the process of varying one or more properties of a periodic waveform, called the carrier signal (High Frequency Signal), with a modulating signal which typically contains information to be transmitted. The aim of digital modulation is to transfer a digital bit stream over an analog bandpass channel, for example over the public switched telephone network (where a bandpass filter limits the frequency range to between 300 and 3400 Hz), or over a limited radio frequency band. The aim of analog modulation is to transfer an analog baseband (or lowpass) signal, for example an audio signal or TV signal, over an analog bandpass channel at a different frequency, for example over a limited radio frequency band or a cable TV network channel.
-QAM, 64-QAM, 256-QAM, CCK, DBPSK, DQPSK, OFDM


Security algorithms

Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product.

64-bit WEP, 128-bit WEP, 802.1x RADIUS, WPA, WPA-PSK, WPA2, WPA2-PSK, WPA3


Bluetooth

Bluetooth is a low-power radio technology developed to replace the cables and wires currently used to link or connect electronic devices such as personal computers, printers, and a wide variety of handheld devices including mobile phones. Because it uses radio-wave connectivity, a Bluetooth-enabled device has a constant, established connection to whatever browser it uses. This saves the user the trouble of logging on to check for emails or news updates, for example.




Bluetooth version

The type of bluetooth technology in the product e.g. Bluetooth Smart (v4.0).

5.0


Design


Component for

What this product is used as a part of (component for).

PC


Product colour

The colour e.g. red, blue, green, black, white.

Black, Red


Internal

The product is built in.




Antenna




Antenna design

External


Transmitting power (CE)

23 dBm


Transmitting power (FCC)

27 dBm


Chipset

Set of electronic components in an integrated circuit that manages the data flow between the processor, memory and peripherals. It is usually found in the motherboard of a computer. Chipsets are usually designed to work with a specific family of microprocessors. Because it controls communications between the processor and external devices, the chipset plays a crucial role in determining system performance.

Intel Wi-Fi 6



Design


Receiver sensitivity

5 GHz : 11ax HT160?-56.25dBm 11ax HT80: -59dBm 11ax HT40: -62.25dBm 11ax HT20: -65dBm 11ac HT160?-62dBm 11ac HT80: -65.5dBm 11ac HT40: -69.75dBm 11ac HT20: -73.75dBm 11n HT40: -74.5dBm 11n HT20: -77.5dBm 11a 54Mbps: -77.75dBm 11a 6Mbps: -94.5dBm 2.4GHz : 11ax HT40: -60.75dBm 11ax HT20: -63.75dBm 11n HT40: -73dBm 11n HT20: -76.25dBm 11g 54Mbps: -76.5dBm 11b 11Mbps: -89dBm


Operating modes

Infrastructure mode


System requirements


Windows operating systems supported

Windows vesions wich can be used with the device.

Windows 10 Education x64, Windows 10 Enterprise x64, Windows 10 Home x64, Windows 10 Pro x64, Windows 10 x64


Operational conditions


Operating temperature (T-T)

The minimum and maximum temperatures at which the product can be safely operated.

0 - 40 °C


Storage temperature (T-T)

The minimum and maximum temperatures at which the product can be safely stored.

-40 - 70 °C


Operating relative humidity (H-H)
- 90%


Storage relative humidity (H-H)

5 - 90%


Sustainability


Sustainability compliance




Weight & dimensions


Width

The measurement or extent of something from side to side.

95.2 mm


Depth

The distance from the front to the back of something.
0.8 mm


Height

The measurement of the product from head to foot or from base to top.

21.5 mm


Packaging data


Package width

The distance from one side of the packaging to the other.

270 mm


Package depth

The distance from the front to the back of the packaging.

215 mm


Package height

The distance from the top to the bottom of the packaging.

47 mm


Package weight

Weight of the packaged product.

480 g


Packaging content


Mounting brackets included




Resource CD




Bluetooth header cable




Quick installation guide




Technical details


Compliance certificates

CE, Federal Communications Commission (FCC), RoHS


Logistics data


Harmonized System (HS) code

85176990
