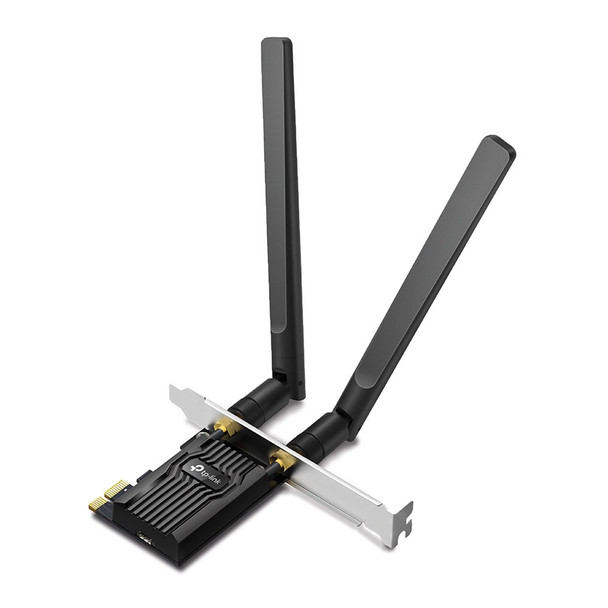

TP-Link AX1800 Wi-Fi 6 Bluetooth 5.2 PCIe Adapter ARCHER TX20E

Easily Get Start with Wi-Fi 6
AX1800 Wi-Fi 6 Bluetooth 5.2 PCIe Adapter

- Fully Featured Wi-Fi 6
- Warp Speed up to 1800 Mbps
- Superior Coverage
- Bluetooth 5.2
- Cutting-Edge Security

Cutting-Edge Wi-Fi 6
The latest Wi-Fi technology makes annoying lag, endless loading, and dead spots a thing of the past. Enjoy the future of faster network loads and more connections.

More Devices, Less Congestion
OFDMA creates separate channel segments for devices to communicate while MU-MIMO allows multiple clients to simultaneously receive data. Combining these technologies guarantees your PC gets strong, efficient, and lag-free wireless connectivity at the same time all of your other devices are communicating.

High-Gain Antennas for Broader Coverage
Two powerful signal-boosting high-gain antennas greatly extend existing Wi-Fi coverage, offering a fast, smooth online experience from farther away.

Bluetooth 5.2 Compatible
The latest Bluetooth 5.2 Technology, achieves speeds 2� faster and coverage 4� broader than Bluetooth 4.2, to perfectly coordinate with your game controllers, headphones, keyboards, and other Bluetooth devices.

Cutting-Edge Security
WPA3, the latest network security standard, provides more secure and individualized encryption in personal password safety, protects your network from wireless hacking and ensure your wireless connection is completely secure while surfing the web and shopping online.

Features


Unrivalled Wi-Fi 6 Speed-Breaks the gigabit barrier with speed up to 1201 Mbps (5 GHz) + 574 Mbps (2.4 GHz)


Wider Signal Coverage- Connect to your Wi-Fi in more parts of your home with two external high-gain antennas ensuring greater coverage and enhanced stability


Bluetooth 5.2-The latest Bluetooth technology achieves 2� Faster Speed and 4� Broader Coverage than BT 4.2


Improved Security-The latest security enhancements WPA3 provides enhanced protection in personal password safety


Backward Compatibility - Full support for 802.11ac/a/b/g/n standards



Design


Transmitting power (CE)

23 dBm


Transmitting power (FCC)

27 dBm


Antenna design

External


Product colour

Black


Internal

Yes


Component for

PC/Server


Operating modes

Infrastructure mode


Antenna

Yes


Plug and Play

Yes



Weight & dimensions


Height

20.9 mm


Width

120.8 mm


Depth

78.5 mm



Packaging content


Mounting brackets included

Yes


Quick installation guide

Yes


Bluetooth header cable

Yes


Resource CD

Yes



Sustainability


Sustainability compliance

Yes


Sustainability certificates

CE, Federal Communications Commission (FCC), RoHS



Network


Networking standards

IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n


Wi-Fi standards

802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)


WLAN data transfer rates supported

11,54,300,574,867,1200 Mbit/s


Security algorithms

64-bit WEP, 128-bit WEP, 802.1x RADIUS, WPA, WPA-PSK, WPA2, WPA2-PSK, WPA3


Bluetooth

Yes


Wi-Fi

Yes


Top Wi-Fi standard

Wi-Fi 6 (802.11ax)


Modulation

16-QAM, 64-QAM, 256-QAM, 1024-QAM, CCK, DBPSK, DQPSK, OFDM


Maximum data transfer rate

1800 Mbit/s


Wi-Fi band

Dual-band (2.4 GHz / 5 GHz)


Bluetooth version

5.2



Operational conditions


Operating temperature (T-T)

0 - 40 �C


Operating relative humidity (H-H)

10 - 90


Storage relative humidity (H-H)

5 - 90


Storage temperature (T-T)

-40 - 70 �C



Ports & interfaces


Host interface

PCI Express


Connectivity technology

Wireless


Interface

WLAN / Bluetooth



System requirements


Windows operating systems supported

Windows 10 Education x64, Windows 10 Enterprise x64, Windows 10 Home x64, Windows 10 Pro x64, Windows 10 x64, Windows 11 Enterprise x64, Windows 11 x64



Packaging data


Package height

41.5 mm


Package depth

152.5 mm


Package width

201.5 mm


Package weight

220 g
