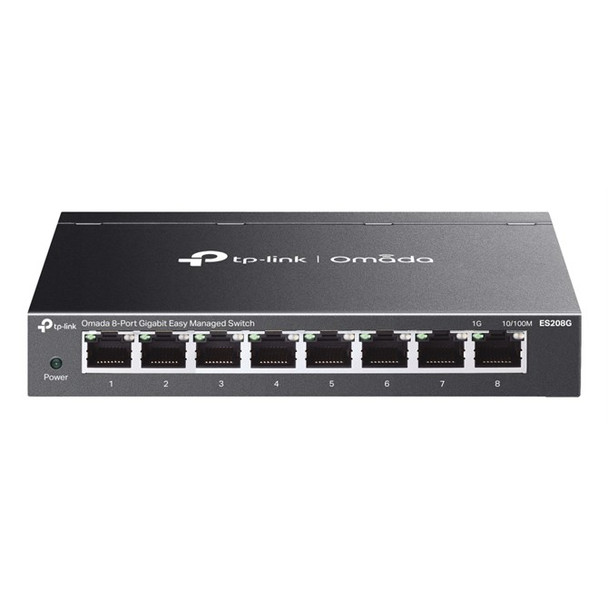

Tp-Link ES208G Omada 8-Port Gigabit Easy Managed Switch 8X Gb Ports Metal Casing ES208G

Omada 8-Port Gigabit Easy Managed Switch

8 x 10/100/1000Mbps RJ45 ports
Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
Centralized Cloud Management via the web or the Omada app
VLAN, Port Isolation, Cable Test, QoS for reliable surveillance networking
Automatic Loop Prevention and IGMP Snooping
Fanless design for silent operation
Durable metal casing and desktop/wall mounting design

DescriptionSpecification

Rackmountable: No
Managed: Yes
Number of Ports: 8
Max RJ45 Transfer Rate: 10/100/1000 Mbps
Interface(s): 8 x 10/100/1000 Mbps RJ45 Ports
Auto-Negotiation/Auto MDI/MDIX
PoE Ports (RJ45): -
Switching Capacity: 16 Gbps
Power Supply: DC Power Adapter (Output: 5VDC / 0.6A)
Dimensions: 158 x 101 x 25 mm
Transfer Method: Store-And-Forward
Mac Address Table: 8K
Packet Forwarding Rate: 11.9 Mpps
Packet Buffer Memory: 4 Mbit
Jumbo Frame: 15 KB
Additional Features: Durable Metal Casing
Desktop/Wall Mount
Physical Security Lock
Surge Protection: 6kV
Supports plug-and-play
Quality of Service: Port-based/802.1p/DSCP QoS
8 Priority Queues
Priority Schedule Mode
Queue Weight Config
Bandwidth Control
Storm Control
Layer Features: L2 Features:
Static Link Aggregation
Loop Prevention / Loopback Detection
Flow Control
Mirroring
Port Statistics
802.1ab LLDP

L2 Multicast:
IGMP Snooping
VLAN: MTU VLAN
Port-Based VLAN
802.1Q Tag VLAN
Management: "Omada App:
Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.

Centralized Management:
Omada Cloud-Based Controller
Omada Hardware Controller
Omada Software Controller

Cloud Access:
Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.

Zero-Touch Provisioning:
Requires the use of Omada Cloud-Based Controller"
.:
Management Features:
Web-based GUI
DHCP Client
Cable Diagnostics
Automatic Device Discovery
Batch Configuration
Batch Firmware Upgrading
Unified Configuration
Environment: Operating Temperature: -5°C
45°C
Storage Temperature: -40°C
70°C
Operating Humidity: 10%
90% non-condensing
Storage Humidity: 5%
90% non-condensing
Package Contents: ES208G
Power Adapter
Rubber Feet
Installation Guide
Package Type: Retail
Package Weight: 0.6500 kg
Warranty: Limited Lifetime
#Hide#POE: No
