TP-Link Gigabit Multi-Mode Media Converter MC200CM
(No reviews yet)
Write a Review
- UPC:
- 1210002611046
- MPN:
- MC200CM
- Condition:
- New
- Availability:
- Available with FREE Delivery (usually delivered within 5-7 working days)
Description
What This Product Does
The MC200CM is a media converter designed to convert 1000BASE-SX fiber to 1000Base-T copper media or vice versa. Designed under IEEE802.3ab 1000Base-T and IEEE802.3z 1000Base-SX standards, the MC200CM is designed for use with multi-mode fiber cable utilizing the SC-Type connector. The MC200CM supports shortwave (SX) laser specification at a full wire speed forwarding rate. It works at 850nm on both transmitting and receiving data.
Other features of this module include the ability to be used as a stand alone device (no chassis required) or with TP-LINK´s 19´system chassis, Auto MDI/MDI-X for TX port, and front panel status LEDs. The MC200CM will transmit at extended fiber optic distances utilizing multi-mode fiber up to 0.55 kilometers.
Specs
Network
Maximum data transfer rate
The maximum speed with which data can be transmitted from one device to another.
00 Mbit/s
Networking standards
The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.
IEEE 802.3ab, IEEE 802.3x, IEEE 802.3z
Ethernet interface type
Gigabit Ethernet
Ethernet LAN data rates
The different speed levels of the Ethernet LAN connection.
00 Mbit/s
Fiber ethernet cabling technology
00BASE-FX, 1000BASE?SX
Auto MDI/MDI-X
A Medium Dependent Interface (MDI) describes the interface (both physical and electrical) in a computer network from a physical layer implementation to the physical medium used to carry the transmission. Ethernet over twisted pair also defines a medium dependent interface crossover (MDIX) interface. Auto-MDIX ports on newer network interfaces detect if the connection would require a crossover, and automatically chooses the MDI or MDIX configuration to properly match the other end of the link.
Cable types supported
Cat6
Performance
Maximum transfer distance
The greatest distance over which the data/signal can be transferred.
550 m
Wavelength
The distance over which a wave repeats itself. The wavelength determines the characteristics of the wave e.g. red light has a different wavelength to blue light.
850 nm
Fiber mode structure
Multi-mode
Features
Internal
The product is built in.
LED indicators
Activity, Link
Product colour
The colour e.g. red, blue, green, black, white.
Black
Ports & interfaces
Connectivity technology
The technology that enables connectivity of the device, e.g. wired or wireless.
Wired
Ethernet LAN (RJ-45) ports
Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.
1
Fiber ports quantity
The number of sockets (ports) for fibers (cables).
1
Fiber optic connector
This terminates the end of an optical fiber, and enables quicker connection and disconnection than splicing. The connectors mechanically couple and align the cores of fibers so light can pass. Better connectors lose very little light due to reflection or misalignment of the fibers. In all there have been about 100 types of optic fiber connectors produced.
SC
Power
Power consumption (typical)
Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage.
5.5 W
Weight & dimensions
Width
The measurement or extent of something from side to side.
94.5 mm
Depth
The distance from the front to the back of something.
73 mm
Height
The measurement of the product from head to foot or from base to top.
27 mm
Operational conditions
Operating temperature (T-T)
The minimum and maximum temperatures at which the product can be safely operated.
0 - 40 °C
Storage temperature (T-T)
The minimum and maximum temperatures at which the product can be safely stored.
-40 - 70 °C
Operating relative humidity (H-H)
- 90%
Storage relative humidity (H-H)
5 - 90%
Packaging data
Package width
The distance from one side of the packaging to the other.
5 mm
Package depth
The distance from the front to the back of the packaging.
4 mm
Package height
The distance from the top to the bottom of the packaging.
65 mm
Package weight
Weight of the packaged product.
440 g
Certificates
Compliance certificates
RoHS
Certification
FCC, CE
View AllClose
The MC200CM is a media converter designed to convert 1000BASE-SX fiber to 1000Base-T copper media or vice versa. Designed under IEEE802.3ab 1000Base-T and IEEE802.3z 1000Base-SX standards, the MC200CM is designed for use with multi-mode fiber cable utilizing the SC-Type connector. The MC200CM supports shortwave (SX) laser specification at a full wire speed forwarding rate. It works at 850nm on both transmitting and receiving data.
Other features of this module include the ability to be used as a stand alone device (no chassis required) or with TP-LINK´s 19´system chassis, Auto MDI/MDI-X for TX port, and front panel status LEDs. The MC200CM will transmit at extended fiber optic distances utilizing multi-mode fiber up to 0.55 kilometers.
Specs
Network
Maximum data transfer rate
The maximum speed with which data can be transmitted from one device to another.
00 Mbit/s
Networking standards
The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.
IEEE 802.3ab, IEEE 802.3x, IEEE 802.3z
Ethernet interface type
Gigabit Ethernet
Ethernet LAN data rates
The different speed levels of the Ethernet LAN connection.
00 Mbit/s
Fiber ethernet cabling technology
00BASE-FX, 1000BASE?SX
Auto MDI/MDI-X
A Medium Dependent Interface (MDI) describes the interface (both physical and electrical) in a computer network from a physical layer implementation to the physical medium used to carry the transmission. Ethernet over twisted pair also defines a medium dependent interface crossover (MDIX) interface. Auto-MDIX ports on newer network interfaces detect if the connection would require a crossover, and automatically chooses the MDI or MDIX configuration to properly match the other end of the link.
Cable types supported
Cat6
Performance
Maximum transfer distance
The greatest distance over which the data/signal can be transferred.
550 m
Wavelength
The distance over which a wave repeats itself. The wavelength determines the characteristics of the wave e.g. red light has a different wavelength to blue light.
850 nm
Fiber mode structure
Multi-mode
Features
Internal
The product is built in.
LED indicators
Activity, Link
Product colour
The colour e.g. red, blue, green, black, white.
Black
Ports & interfaces
Connectivity technology
The technology that enables connectivity of the device, e.g. wired or wireless.
Wired
Ethernet LAN (RJ-45) ports
Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.
1
Fiber ports quantity
The number of sockets (ports) for fibers (cables).
1
Fiber optic connector
This terminates the end of an optical fiber, and enables quicker connection and disconnection than splicing. The connectors mechanically couple and align the cores of fibers so light can pass. Better connectors lose very little light due to reflection or misalignment of the fibers. In all there have been about 100 types of optic fiber connectors produced.
SC
Power
Power consumption (typical)
Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage.
5.5 W
Weight & dimensions
Width
The measurement or extent of something from side to side.
94.5 mm
Depth
The distance from the front to the back of something.
73 mm
Height
The measurement of the product from head to foot or from base to top.
27 mm
Operational conditions
Operating temperature (T-T)
The minimum and maximum temperatures at which the product can be safely operated.
0 - 40 °C
Storage temperature (T-T)
The minimum and maximum temperatures at which the product can be safely stored.
-40 - 70 °C
Operating relative humidity (H-H)
- 90%
Storage relative humidity (H-H)
5 - 90%
Packaging data
Package width
The distance from one side of the packaging to the other.
5 mm
Package depth
The distance from the front to the back of the packaging.
4 mm
Package height
The distance from the top to the bottom of the packaging.
65 mm
Package weight
Weight of the packaged product.
440 g
Certificates
Compliance certificates
RoHS
Certification
FCC, CE
Additional Information
Shipping: |
Usually shipped within 3-5 working days |
Delivery: |
Usually delivered within 5-7 working days |
Related Products
Related Products
Out of stock
TP-Link Gigabit Multi-Mode Media Converter 1000 Mbit/s IEEE 802.3ab IEEE 802.3i MC200CM
Tp-Link
£36.51
- Complies with IEEE 802.3ab and IEEE 802.3z
- Provides switch configuration of Force /Auto transfer mode for FX port.
- Extends fiber distance up to 0.5km
The MC200CM is a media converter designed...
TP-Link Gigabit Single-Mode Media Converter MC210CS
Tplink
£33.00
- Complies with IEEE 802.3ab and IEEE 802.3z - Provides switch configuration of Force /Auto transfer mode for FX port. - Extends fiber distance up to 15km The MC210CS is a media converter...

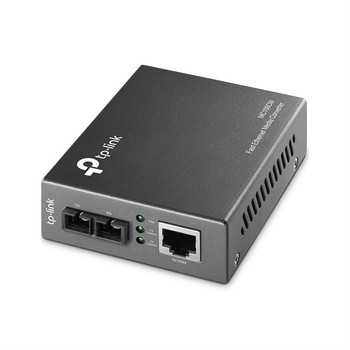

TP-Link 10/100Mbps Multi-Mode Media Converter MC100CM
