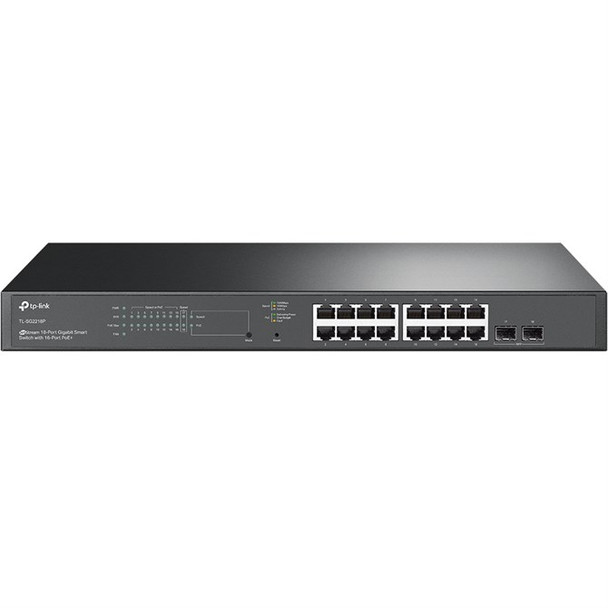

TP-Link JetStream 18-Port Gigabit Smart Switch with 16-Port PoE+ SG2218P

Realize More Possibilities with Omada
JetStream 18-Port Gigabit Smart Switch with 16-Port PoE+

Centralized
Cloud Management
Omada SDN Platform Integration

Advanced L2+ Features
L2/L3/L4 QoS, ACL,
Static Routing and More

Abundant Security
Strategies
LAN Area Investment Protection

PoE+ Output
16 PoE+ Ports with
Total 150 W Power Budget

Software Defined Networking (SDN) with Cloud Access
Omada's Software Defined Networking (SDN) platform integrates network devices, including access points, switches and gateways, providing 100% centralized cloud management. Omada creates a highly scalable network-all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.

Features


150 W PoE Budget: 16� 802.3at/af-compliant PoE+ ports with a total power supply of 150 W*


Full Gigabit Ports: 16� gigabit PoE+ ports and 2� gigabit SFP Slots provide high-speed connections


Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)**, Centralized Cloud Management, and Intelligent Monitoring


Centralized Management: Cloud access and Omada app for ultra convenience and easy management


Static Routing: Helps route internal traffic for more efficient use of network resources


Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more


Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping


IPv6: IPv6 support with dual IPv4/IPv6 stack, MLD snooping, IPv6 neighbor discovery



Design


Product colour

Black


Rack mounting

Yes


Form factor

1U


Certification

CE, FCC, RoHS


LED indicators

Yes



Weight & dimensions


Height

44 mm


Width

440 mm


Depth

180 mm



Network


Networking standards

IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z


Link aggregation

Yes


Spanning tree protocol

Yes


10G support

No


Auto MDI/MDI-X

Yes


Flow control support

Yes


Broadcast storm control

Yes


Auto-negotiation

Yes


Policy-based routing

Yes


VLAN support

Yes


Rate limiting

Yes


IP routing

Yes


Ethernet LAN data rates

10,100,1000 Mbit/s



Data transmission


Packet buffer memory

4.1 MB


Forwarding rate

26.78 Mpps


Jumbo frames

9


MAC address table

8000 entries


Jumbo frames support

Yes


Switching capacity

26.78 Gbit/s



Power over Ethernet (PoE)


Total Power over Ethernet (PoE) budget

150 W


Power over Ethernet (PoE)

Yes



Operational conditions


Operating temperature (T-T)

0 - 50 �C


Heat dissipation

619.06 BTU/h


Operating relative humidity (H-H)

10 - 90


Storage relative humidity (H-H)

5 - 90


Storage temperature (T-T)

-40 - 70 �C



Ports & interfaces


Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)


Basic switching RJ-45 Ethernet ports quantity

16


SFP module slots quantity

2



Security


DHCP features

DHCP client, DHCP relay, DHCP snooping


Access Control List (ACL)

Yes


Static port security

Yes


MAC address filtering

Yes


SSH/SSL support

Yes


Authentication

MAC-based authentication, Port-based authentication


Loop protection

Yes


BPDU filtering/protection

Yes



Management features


System event log

Yes


Web-based management

Yes


MIB support

MIB II (RFC1213), Bridge MIB (RFC1493), P/Q-Bridge MIB (RFC2674), Radius Accounting Client MIB (RFC2620), Radius Authentication Client MIB (RFC2618), Remote Ping, Traceroute MIB (RFC2925), Support TP-Link private MIBs, RMON MIB(RFC1757, rmon 1,2,3,9)


Switch layer

L2/L2+


Quality of Service (QoS) support

Yes


Cloud-managed

Yes


ARP inspection

Yes


Configuring Location Settings (CLI)

Yes


Switch type

Managed



Power


AC input voltage

100 - 240 V


AC input frequency

50/60 Hz


Power supply included

Yes


Power source

DC/PoE


Power consumption (max)

181.4 W



Multicast features


Multicast support

Yes


Multicast features

Multicast forwarding



Packaging data


Package height

80 mm


Cables included

LAN (RJ-45)


Package depth

528 mm


Package width

250 mm


Package type

Box


Package weight

2.76 kg


User guide

Yes
