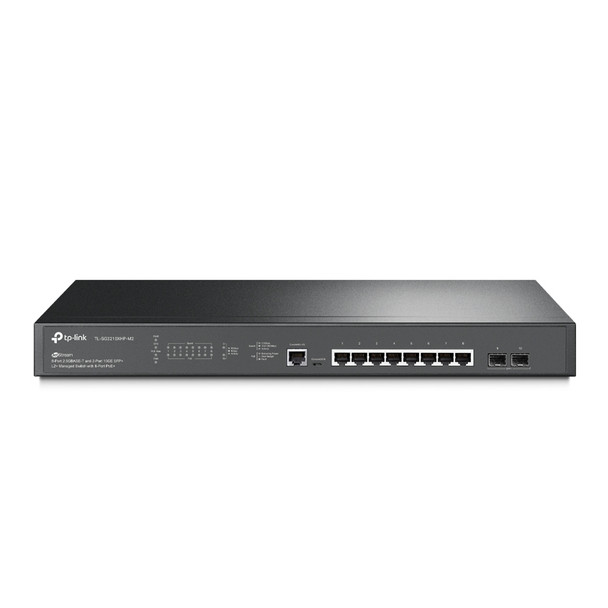

TP-Link JetStream 8-Port 2.5GBASE-T and 2-Port 10GE SFP+ L2+ Managed Switch with SG3210XHP-M2

Ultrafast 2.5G PoE+ Managed Switch with 10G Uplink for a Complete Omada Network

2.5G PoE+ Ports for WiFi 6
8� 2.5 Gbps Ports Unlock the Full Potential of WiFi 6 APs

10G Lightning-Fast Uplink Connection
2� 10 Gbps SFP+ Slots for High-Bandwidth Connectivity

PoE+ Output
8 PoE+ Ports with Total 240 W Power Budget*

Centralized Cloud Management
SDN Solutions Integration for a Highly Efficient Network

Unlock the Full Potential of WiFi 6
with Multi-Gigabit PoE+ Ports
Featuring 8� 2.5 Gbps PoE+ ports, the switch is capable of future network expansion and deployment, providing sufficient bandwidth for incoming WiFi 6 APs. Designed to use a single Ethernet cable for both data and power transmission, it supports up to 240 W total PoE power budget* and flexible installation to fit in various application scenarios.

Enterprise Switch
with 10G Uplink
2� 10 Gbps SFP+ slots provide non-blocking switching performance and ultra-low latency, so reliable and lightning-fast connections to servers and other switches are easily built.

Software-Defined Networking (SDN) with Cloud Access
Omada's Software-Defined Networking (SDN) platform integrates network devices, including access points, switches, and gateways, providing 100% centralized cloud management. Omada creates a highly scalable network-all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.

Advanced L3 Features
An abundance of L2+ and L3 features are supported to help build a highly scalable and robust network, providing a reliable and efficient solution for enterprises, campuses, and ISPs

Secure Networking
Security features include IP-MAC-Port-VID Binding, Port Security, Storm Control and DHCP Snooping to defend against a range of network threats. An integrated list of common DoS attacks is available, making it easier than ever to prevent them. In addition, the Access Control Lists (ACL, L2 to L4) feature restricts access to sensitive network resources by denying packets based on source and destination MAC address, IP address, TCP/UDP ports, or VLAN ID. Users' network access can be controlled via 802.1X authentication, which works with a RADIUS/Tacacs+ server to grant access only when valid user credentials are provided.

Enterprise Level Features
A complete lineup of L2+ features are supported, including 802.1Q VLAN, Port Mirroring, STP/RSTP/MSTP, Link Aggregation Control Protocol, and 802.3x Flow Control. Advanced IGMP Snooping ensures the switch intelligently forwards multicast streams to only the appropriate subscribers, cutting out unnecessary traffic, while IGMP throttling & filtering restrict each subscriber on a port level to prevent unauthorized multicast access. Static Routing is a simple way of segmenting the network and internally routs traffic through the switch for improved efficiency.

Advanced QoS
Voice and video traffic can be prioritized based on IP address, MAC address, TCP port number, UDP port number, and more. With QoS (Quality of Service), voice and video services remain smooth, even when bandwidth is in short supply.

ISP Features
sFlow, QinQ, L2PT PPPoE ID Insertion, and IGMP authentication features are provided, developed with service providers in mind. 802.3ah OAM and Device Link Detection Protocol (DLDP) offer easy monitoring and troubleshooting of Ethernet links.

IPv6 Support
IPv6 functions such as Dual IPv4/IPv6 Stack, MLD Snooping, IPv6 ACL, DHCPv6 Snooping, IPv6 Interface, Path Maximum Transmission Unit (PMTU) Discovery, and IPv6 Neighbor Discover guarantee your network is ready for the Next Generation Network (NGN) without upgrading your hardware.

Features


2.5G PoE+ Ports for WiFi 6: 8� 2.5 Gbps ports smash the gigabit barrier and unlock the full potential of WiFi 6 APs


10G Lightning-Fast Uplink: 2� 10 Gbps SFP+ slots enable high-bandwidth connectivity and non-blocking switching capacity


240 W PoE Budget: 8� 802.3at/af-compliant PoE+ ports with a total power supply of 240 W*


Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)**, Centralized Cloud Management, and Intelligent Monitoring


Centralized Management: Cloud access and Omada app for ultra convenience and easy management


Static Routing: Helps route internal traffic for more efficient use of network resources


Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more


Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping



Protocols


GARP VLAN Registration Protocol (GVRP)

Yes


Management protocols

SNMPv1/v2c/v3, SNTP



Data transmission


Packet buffer memory

12 MB


Forwarding rate

59.52 Mpps


Jumbo frames

9000


Number of static routes

48


MAC address table

16000 entries


Jumbo frames support

Yes


Static route

Yes


Switching capacity

80 Gbit/s


Number of IP interfaces

16



Power over Ethernet (PoE)


Power over Ethernet plus (PoE+) ports quantity

8


Total Power over Ethernet (PoE) budget

240 W


Power over Ethernet (PoE)

Yes


Power over Ethernet (PoE) power per port

30 W



Ports & interfaces


Console port

RJ-45/micro-USB


Basic switching RJ-45 Ethernet ports type

2.5G Ethernet (100/1000/2500)


Basic switching RJ-45 Ethernet ports quantity

8


SFP+ module slots quantity

2


Power connector

AC-in jack


2?5G Ethernet (copper) ports quantity

8



Security


DHCP features

DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping


Static port security

Yes


Security algorithms

HTTPS, SSH, SSH-2, SSL/TLS


IP-MAC-Port binding

Yes


Queue scheduling algorithms

SP, WRR+SP, Weighted Round Robin (WRR)


Loop protection

Yes


Authentication type

AAA, TACACS+


BPDU filtering/protection

Yes


Access Control List (ACL)

Yes


MAC address filtering

Yes


Password protection

Yes


SSH/SSL support

Yes


Authentication

MAC-based authentication, Port-based authentication


IGMP snooping

Yes



Management features


System event log

Yes


Web-based management

Yes


MIB support

RFC2925, RFC2618, RFC2620, RFC2021, RFC2819, RFC2674, RFC1493, RFC1643, RFC2233, RFC1213


Switch layer

L2+


Quality of Service (QoS) support

Yes


Cloud-managed

Yes


ARP inspection

Yes


Configuring Location Settings (CLI)

Yes


Traffic classification

Yes


Switch type

Managed



Multicast features


Multicast support

Yes


Multicast Listener Discovery (MLD) snooping

Y



Design


Number of fans

2 fan(s)


Product colour

Black


Rack mounting

Yes


Form factor

1U


Certification

CE, FCC, RoHS


LED indicators

Yes



Weight & dimensions


Height

44 mm


Width

440 mm


Depth

180 mm



Logistics data


Harmonized System (HS) code

85176990



Network


Networking standards

IEEE 802.1D, IEEE 802.1s, IEEE 802.1w


Virtual LAN features

MAC address-based VLAN, Port-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN


Link aggregation

Yes


Spanning tree protocol

Yes


10G support

Yes


Number of VLANs

4000


Head-of-line (HOL) blocking

Yes


Port mirroring

Yes


Flow control support

Yes


Broadcast storm control

Yes


VLAN support

Yes


Rate limiting

Yes


IP routing

Yes


Ethernet LAN data rates

100,1000,2500 Mbit/s



Operational conditions


Operating temperature (T-T)

0 - 45 �C


Heat dissipation

996.35 BTU/h


Operating relative humidity (H-H)

10 - 90


Storage relative humidity (H-H)

5 - 90


Storage temperature (T-T)

-40 - 70 �C



Power


AC input voltage

100 - 240 V


AC input frequency

50/60 Hz


Power supply included

Yes


Power source

AC


Power consumption (max)

292 W



Packaging data


Package height

80 mm


Cables included

AC


Package depth

250 mm


Quick start guide

Yes


Package width

528 mm


Package type

Box


Package weight

2.84 kg
