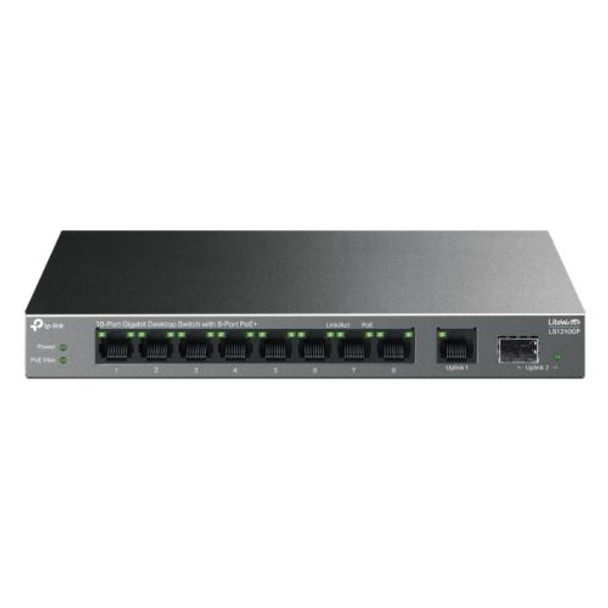

Tp-Link LS1210GP 10-Port Gigabit Desktop Litewave Switch With 8-Port Poe+ Gb Sfp LS1210GP

10-Port Gigabit Desktop Switch with 8-Port PoE+

Full Gigabit Ports: 9x gigabit auto-negotiation RJ45 Ethernet ports and 1x gigabit SFP port provide up to 20 Gbps switching capacity.
61 W PoE Budget: Eight gigabit 802.3af/at-compliant PoE+ ports easily connect and power fixed devices like IP cameras, access points, and IP phones via a single cable. Up to 30 W PoE output is supported by each PoE port.
Up to 250 m PoE Transmission: With Extend Mode, PoE transmission distance reaches up to 250m, perfect for surveillance camera deployment in large areas.
PoE Auto Recovery: Automatically reboots your dropped or unresponsive PoE-powered devices.
Traffic Separation for Higher Security: Isolation Mode allows one-click client traffic separation to avoid snooping and tampering, and isolate broadcast storm.
Plug and Play: Simply plug and play for instant connectivity with no configuration required.
Silent Operation: Fanless design reduces power consumption and ensures silent operation, ideal for noise-sensitive homes or businesses.
Reliable Hardware Design: Durable metal casing and desktop/wall-mounting design are well-suited for different environments.



DescriptionSpecification

Rackmountable: No
Managed: No
Number of Ports: 10
Max RJ45 Transfer Rate: 10/100/1000 Mbps
#Hide#Max SFP Transfer Rate: GB SFP
Interface(s): 9 x 10/100/1000 Mbps RJ45
1 x Gigabit SFP Port
PoE Ports (RJ45): "Standard: 802.3at/802.3af compliant
PoE Ports: Ports 1–8, up to 30 W PoE output per port
PoE Power Budget: 61W"
Switching Capacity: 20 Gbps
Power Supply: External Power Adapter (Output: 53.5VDC / 1.31A)
Dimensions: 209 x 126 x 26 mm
Transfer Method: Store-And-Forward
Mac Address Table: 4K
Packet Forwarding Rate: 14.88 Mpps
Jumbo Frame: 16 KB
Advanced Functions: "Extend Mode Button (Ports 1–4, Up to 250m PoE power & data transmission)
Isolation Mode Button (Ports 1–8)
PoE Auto Recovery Button (Ports 1–8)
Compatible With IEEE 802.3af/at Compliant PDs
IEEE802.3x Flow Control
802.1p/DSCP QoS
IGMP Snooping
Green Technology"
Security: Physical Security Lock
Environment: Operating Temperature: 0–40°C (32–104°F)
Storage Temperature: -40–70°C (-40–158°F)
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing
Package Contents: LS1210GP
Power Adapter
Installation Guide
Package Type: Retail
Package Weight: To be confirmed
Warranty: 3 Years
#Hide#POE: Yes
