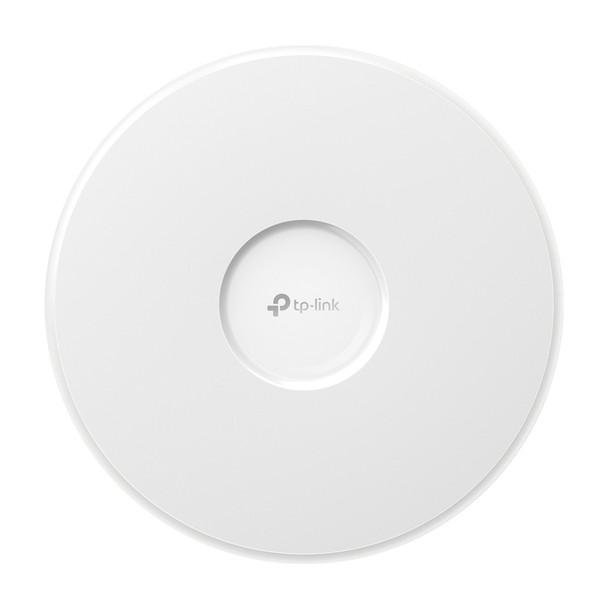

TP-Link Omada BE9300 Ceiling Mount Tri-Band Wi-Fi 7 Access Point 2.4 GHz 5 GHz 6 EAP772

Ultra-Thin Enterprise WiFi 7 Access Point

- Next-Gen WiFi 7
- Wi-Fi Speeds up to 9214 Mbps
- Multi-Link Operation (MLO)
- 1 2.5G RJ45 Port
- PoE Power
- Ultra-Thin Design
- Centralized Cloud Management
- Omada Mesh Technology

Ultra-Thin Design for Flexible Deployment
The overall design of EAP772 utilizes a thinner circular arc with a groove around the top cover, fitting closer to various installation surfaces such as ceilings. The compact internal hardware layout and heat-dissipating design ensure high performance with a sharp aesthetic.

Boosted Network Security

- Secure Guest Network with up to 24 SSIDs
- Boost Your Business with SMS Login
- WPA3 for Worry-Free Open Public Networks
- Rogue AP Detection

Features


BE9300 Tri-Band Wi-Fi 7 (5760 Mbps on 6 GHz + 2880 Mbps on 5 GHz + 574 Mbps on 2.4 GHz)


A clear 6 GHz band brings cleaner and wider band resources


1 2.5G Port unlocks the full potential of Wi-Fi 7


320 MHz bandwidth enables many more simultaneous transmissions


Multi-Link Operation and Multi-RUs ensure the high performance of your network


Advanced Functions: Centralized management, mesh, and AI roaming



Design


Placement

Ceiling, Wall


Product colour

White


LED indicators

Yes



Weight & dimensions


Height

32.5 mm


Width

220 mm


Depth

220 mm



Packaging content


Quantity per pack

1 pc(s)


Mounting kit

Yes


AC adapter included

No



Certificates


Certification

CE, FCC, RoHS, IC



Features


Networking standards

IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11be, IEEE 802.11g, IEEE 802.11n


Bluetooth

Yes


Maximum data transfer rate (2?4 GHz)

574 Mbit/s


6 GHz

Yes


Maximum data transfer rate

9300 Mbit/s


Number of users

380 user(s)


Airtime Fairness (ATF)

Yes


Maximum data transfer rate (6 GHz)

5760 Mbit/s


MIMO type

Multi User MIMO


5 GHz

Yes


Maximum data transfer rate (5 GHz)

2880 Mbit/s


Quality of Service (QoS) support

Yes


VLAN support

Yes


MIMO

Yes


BeamForming

Yes


Bluetooth version

5.2


2?4 GHz

Yes


Ethernet LAN data rates

2500 Mbit/s



Operational conditions


Operating temperature (T-T)

0 - 40 C


Operating relative humidity (H-H)
- 90


Storage relative humidity (H-H)

5 - 90


Storage temperature (T-T)

-40 - 70 C



Security


Access Control List (ACL)

Yes


Security algorithms

SNMP, SNMPv2, SNMPv3, WPA-Enterprise, WPA-Personal, WPA2-Enterprise, WPA2-Personal, WPA3-Enterprise, WPA3-Personal


Remote Authentication Dial-In User Service (RADIUS)

Yes


MAC address filtering

Yes


Number of SSID supported

24


Service Set Identifier (SSID) features

Multiple SSIDs



Ports & interfaces


Ethernet LAN (RJ-45) ports

1



Management features


Web-based management

Yes



Antenna


Antenna type

Internal
