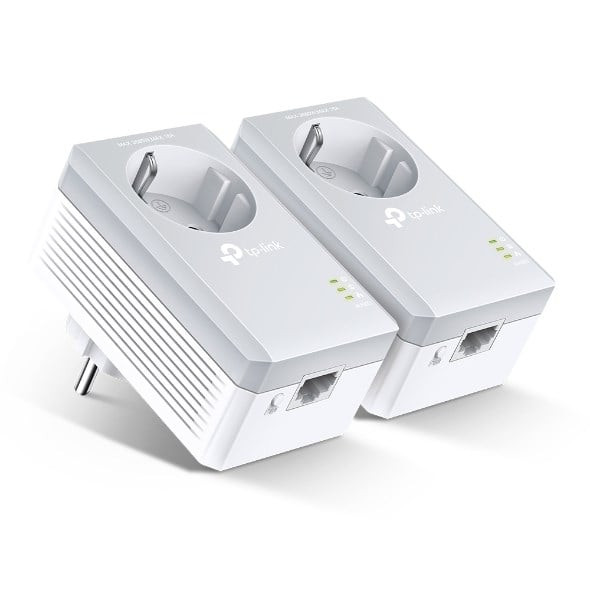

TP-Link Passthrough Powerline 600 Starter Kit 1 Port TL-PA4010PKIT

What This Product Does
The TL-PA4010P KIT turns your existing powerline into a high speed network with no need for new wires or drilling. No configuration is required, simply plug your adapter into your power socket and you can establish networking infrastructure in a flash. In additon, its integrated power socket makes sure that no power outlet is going to waste.

Easy Ethernet Connections
With advanced HomePlug AV technology, the TL-PA4010P KIT can provide users with a stable high-speed data transmission over a household electric circuit for up to 300 meters. the TL-PA4010P KIT is a great choice for a whole home solution to connect all network compatible devices--from computers and game consoles to set-top boxes for IPTV to printers and NAS hard drives.

Mains Filter for Better Performance
With its Integrated Mains Filter, the TL-PA4010P KIT can optimize powerline communication performance by suppressing noise interference generated by surrounding electronic equipment that can affect network performance. That means that users won't experience a sudden speed drop when a larger power consuming device is plugged into the power socket.

Pair Button for Easy Network Security
You can set up a hassle-free Powerline network within minutes with TP-Link’s powerline adapters, just plug in and play. Also, the adapters’ “Pair” buttons can be utilized for securing or managing multiple powerline adapters in your home powerline network.

1. Plug one Internet connected adapter into a nearby power outlet.

2. Connect additional adapters to PCs/laptops/Internet TVs or other networked devices via an Ethernet cable - and you're done!

Extra Power Socket for Additional Devices
With its integrated power socket, the new TL-PA4010P KIT provides real convenience for your home network. The integrated power socket allows an additional device or power bar to be connected to the adapter as though it were a normal wall socket. This ensures that even with the TL-PA4010P KIT plugged in, no power outlet is going to waste.

Reduce Power Consumption by Up to 85%
The TL-PA4010P KIT, a new-generation of Powerline Adapter, with its practical product design and environment-conscious Power-Saving Mode, will automatically switch from its regular "Working Mode" to "Power-Saving Mode" that will reduce energy consumption by up to 85%.

Specs




Performance


Maximum data transfer rate

The maximum speed with which data can be transmitted from one device to another.

600 Mbit/s


Ethernet LAN

An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.




Ethernet LAN interface type

The characteristics of the Ethernet LAN interface.

Fast Ethernet


Ethernet LAN data rates

The different speed levels of the Ethernet LAN connection.
, 100 Mbit/s


Ethernet LAN (RJ-45) ports

Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.

1


Wi-Fi

Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves.




Networking standards

The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.

IEEE 802.3, IEEE 802.3u


Built-in power socket

There is a power socket (port) in the device.




PowerLine standard

Power-line communication (PLC) carries data on a conductor that is also used simultaneously for AC electric power transmission or electric power distribution to consumers. Two distinctly different sets of standards apply to powerline networking as of early 2010. Within homes, the HomePlug AV and IEEE 1901 standards specify how, globally, existing AC wires should be employed for data purposes. The IEEE 1901 includes HomePlug AV as a baseline technology, so any IEEE 1901 products are fully interoperable with HomePlug AV, HomePlug GreenPHY or HomePlug AV2 specification.

HomePlug AV


Modulation

Modulation is the process of varying one or more properties of a periodic waveform, called the carrier signal (High Frequency Signal), with a modulating signal which typically contains information to be transmitted. The aim of digital modulation is to transfer a digital bit stream over an analog bandpass channel, for example over the public switched telephone network (where a bandpass filter limits the frequency range to between 300 and 3400 Hz), or over a limited radio frequency band. The aim of analog modulation is to transfer an analog baseband (or lowpass) signal, for example an audio signal or TV signal, over an analog bandpass channel at a different frequency, for example over a limited radio frequency band or a cable TV network channel.

OFDM


Security algorithms

Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product.
8-bit AES


Maximum operating distance

The maximum distance from which you can operate the device.

300 m


Encryption button




Plug and Play

Indicates whether this product supports is "plug and play". Plug and play is hardware or software that, after being installed ("plugged in"), can immediately be used ("played with"), as opposed to hardware or software which requires configuration.




Power


Power consumption (typical)

Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage.

4.6 W


Power consumption (standby)

The amount of electricity that is consumed when the product is on standby.

0.72 W


Design


LED indicators




Product colour

The colour e.g. red, blue, green, black, white.

White


Certification

FCC, CE


System requirements


Windows operating systems supported

Windows vesions wich can be used with the device.




Linux operating systems supported

8 RT. Linux (9.4, 9.5), Red Hat Enterprise Linux 5.0 (supported with a pre-built package); SUSE Linux (10.3, 11.0, 11, 11.1, 11.2), Fedora (9, 9.0, 10, 10.0, 11.0, 11, 12, 12.0), Ubuntu (8.04, 8.04.1, 8.04.2, 8.10, 9.04, 9.10, 10.04), Debian (5.0, 5.0.1, 5.0.2, 5.0.3)





System requirements


Mac compatibility

Product can be used with Apple Mac software and/or hardware.




Mac operating systems supported

Mac operating systems e.g. OS X can be used with the device.




Operational conditions


Operating temperature (T-T)

The minimum and maximum temperatures at which the product can be safely operated.

0 - 40 °C


Storage temperature (T-T)

The minimum and maximum temperatures at which the product can be safely stored.

-40 - 70 °C


Operating relative humidity (H-H)
- 90%


Storage relative humidity (H-H)

5 - 90%


Weight & dimensions


Width

The measurement or extent of something from side to side.

95 mm


Depth

The distance from the front to the back of something.

58 mm


Height

The measurement of the product from head to foot or from base to top.

42 mm


Certificates


Compliance certificates

RoHS


Packaging data


Package width

The distance from one side of the packaging to the other.
0 mm


Package depth

The distance from the front to the back of the packaging.
6 mm


Package height

The distance from the top to the bottom of the packaging.
0 mm


Package weight

Weight of the packaged product.

540 g


Packaging content


Quantity per pack

2 pc(s)


Quick installation guide




Cables included

LAN (RJ-45)


Logistics data


Harmonized System (HS) code

85171800
