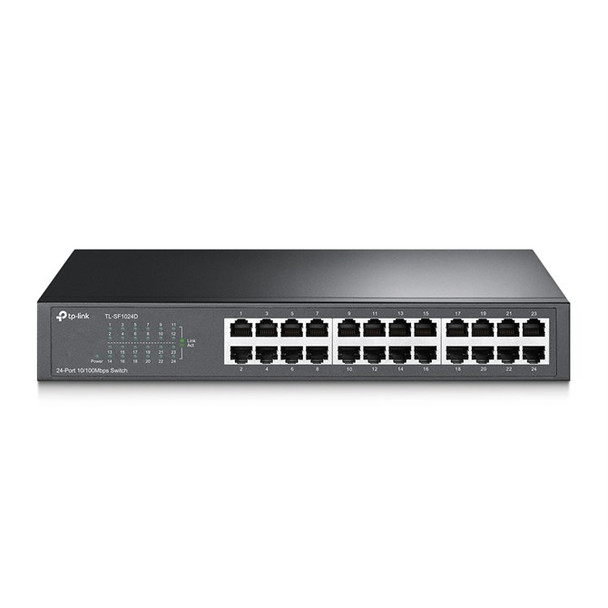

TP-Link TL-SF1024D Network Switch Unmanaged Fast Ethernet 10/100 Grey TL-SF1024D

What This Product Does
The 24-Port 10/100Mbps Switch TL-SF1024D provides you with a high-performance, low-cost, easy-to-use, seamless and standard upgrade to improve old network to 100Mbps network. All 24 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SF1024D can save the power consumption and most of the packaging material can be recycled, making it an eco-friendly solution for your business network.

What This Product Does
The 24-Port 10/100Mbps Switch TL-SF1024D provides you with a high-performance, low-cost, easy-to-use, seamless and standard upgrade to improve old network to 100Mbps network. All 24 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SF1024D can save up to 75%* of the power consumption and 80% of the packaging material can be recycled, making it an eco-friendly solution for your business network.

TP-LINK Green Technology
This new generation The 24-Port 10/100Mbps Switch TL-SF1024D features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network. It also complies with the EU'S RoHS, prohibiting the use of certain hazardous materials. Besides, 80% of the packaging material can be recycled.

High Performance
The rack-mount size steel case design, combined with a safety-certified internal power supply, make the switch the most robust product, which is very cost-effective for a less than 16-user environment. Featuring non-blocking switching architecture, TL-SF1024D forwards and filters packets at full wire-speed for maximum throughput. And IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the traffic congestion and make TL-SF1024D work reliably.

Easy to Use
The auto features of this fast ethernet switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10, 100 Mbps) and intelligently adjusts for compatibility and optimal performance.

- Innovative energy-efficient technology saves power up to 75%
- Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode
- Non-blocking switching architecture that forwards and filters packets at full wire-speed for maximum throughput
- 4.8 Gbps Switching Capacity
- Store and forward Switching scheme
- Auto-MDI/MDIX eliminates the need for crossover cables
- Supports MAC address auto-learning and auto-aging
- Auto-negotiation ports provide smart integration between 10Mbps, 100Mbps hardware.
- Plug and Play design simplifies installation
- Fanless design to make sure it works quietly

Specs




Management features


Switch type

What switch device has, managed or unmanaged.

Unmanaged


Ports & interfaces


Basic switching RJ-45 Ethernet ports quantity

The number of basic switching RJ-45 Ethernet ports (sockets).

24


Basic switching RJ-45 Ethernet ports type

The type/category of basic switching RJ-45 Ethernet ports (sockets).

Fast Ethernet (10/100)


Fast Ethernet (copper) ports quantity

24


Power connector

AC-in jack


Network


Networking standards

The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.

IEEE 802.3i, IEEE 802.3u, IEEE 802.3x

G support

The product can use Oracle 10G, which is a database management system introduced in 2003.




Copper ethernet cabling technology
GBASE-T, 100BASE-TX


Cable types supported

Cat3, Cat5e, Cat4, Cat5


Auto MDI/MDI-X

A Medium Dependent Interface (MDI) describes the interface (both physical and electrical) in a computer network from a physical layer implementation to the physical medium used to carry the transmission. Ethernet over twisted pair also defines a medium dependent interface crossover (MDIX) interface. Auto-MDIX ports on newer network interfaces detect if the connection would require a crossover, and automatically chooses the MDI or MDIX configuration to properly match the other end of the link.




Ethernet LAN data rates

The different speed levels of the Ethernet LAN connection.
,100 Mbit/s


Data transmission


Switching capacity

The data transfer capacity of the switch per second.

4.8 Gbit/s


Throughput

3.57 Mpps


Forwarding rate

3.57 Mpps


MAC address table

The MAC address is the 'Media Access Control Address'. It is a unique address given to a network interface controller (NIC) in a device. A MAC address table shows the addresses in a table format.

8000 entries


Store-and-forward




Packet buffer memory

2 MB


Protocols


Supported network protocols

Network protocols tested as compatible with this product e.g. FTP,HTML, POP.

CSMA/CD, TCP/IP


Design


Rack mounting

The type of mounting that can position devices in a shelving system (rack).




Stackable

Devices can be placed on top of each other.




Product colour

The colour e.g. red, blue, green, black, white.

Grey


Housing material

What the casing of the product is made of.

Metal


LED indicators




Performance


Fanless




Power


Power source

What is providing power for the product e.g. mains electricity.

AC


Power supply included

There is a power supply with this product.





Power


AC input voltage

The voltage of the AC electricity that is inputted into the product.
0 - 240 V


AC input frequency

50/60 Hz


Power consumption (typical)

Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage.

3.53 W


Power over Ethernet (PoE)


Power over Ethernet (PoE)

The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras.




Operational conditions


Operating temperature (T-T)

The minimum and maximum temperatures at which the product can be safely operated.

0 - 40 -C


Storage temperature (T-T)

The minimum and maximum temperatures at which the product can be safely stored.

-40 - 70 -C


Operating relative humidity (H-H)
- 90%


Storage relative humidity (H-H)

5 - 90%


Heat dissipation

The heat generated by the power supply.
.88 BTU/h


Weight & dimensions


Width

The measurement or extent of something from side to side.

294 mm


Depth

The distance from the front to the back of something.
0 mm


Height

The measurement of the product from head to foot or from base to top.

44 mm


Packaging content


Cables included

AC


User guide




Rack mount kit




Packaging data


Package type

The type of product package e.g. box.

Box


Package width

The distance from one side of the packaging to the other.

250 mm


Package depth

The distance from the front to the back of the packaging.

400 mm


Package height

The distance from the top to the bottom of the packaging.

80 mm


Package weight

Weight of the packaged product.

2 kg


Sustainability


Sustainability compliance




Certificates


Compliance certificates

CE, Federal Communications Commission (FCC), RoHS


Logistics data


Harmonized System (HS) code

85176990
