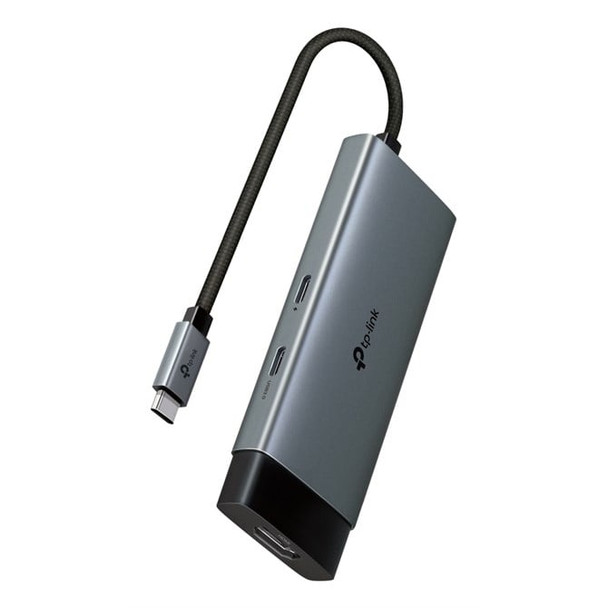

TP-Link UH5020C Interface Hub USB Type-C 5000 Mbit/s Grey UH5020C

5 in 1 USB-C Hub
UH5020C turns a single USB-C port into 5 ports with a 4K@60Hz HDMI, 100W Power Delivery, 1× USB-C Data Port, 2× USB-A Data Ports.

Ultra High-Definition Media Display
Connect to an external monitor via the 4K@60Hz HDMI port for a stunning ultra high-definition experience.

Powerful 100W Fast Charging
Plug the charging cable into UH5020C and continuously deliver up to 100W of power to your PC while transferring files or streaming media.

5 Gbps SuperSpeed Data Transfer
UH5020C adds three USB 3.0 ports to your device, enabling simultaneous use of multiple USB devices.

Easy to Use with Plug & Play
Simply plug in and start using in seconds, thanks to driver-free install with Mac OS, Windows 11/10/8.1/8/7, Linux OS, iPadOS, iOS, Android, Chrome OS, and Nintendo OS.

Compact and Elegant Design
The self-storing design not only protects the connector, but also but also improves portability. Aluminum alloy case and braided cable make UH5020C more durable. Bring you a better user experience.

Specs




Ports & interfaces


Host interface

Interface that enables a host controller to communicate with a driver.

USB Type-C


Hub interfaces

A hub is a device for connecting multiple devices together. The hub interface is where the hub connects to other devices via input/output (I/O) ports.

HDMI, USB 3.2 Gen 1 (3.1 Gen 1) Type-A, USB Type-C


USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2


USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

Number of USB 3.0 (3.1 Gen 1) ports with Type-C connector. USB 3.0 (3.1 Gen 1) is USB interface version which supports transfer rate up to 5 Gbit/s (SuperSpeed). USB Type-C connector has symmetrical design architecture and compatible with Thunderbolt 3 interface.

2


HDMI ports quantity

The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards.

1


Ports quantity

The number of ports or external interfaces to which other equipment can be connected.

5


Card reader integrated

A card reader is a device that enables reading and, in some cases, writing data to and from a memory card.




DC-in jack

The socket/plug where the DC electricity supply connects to the device.




Features


Data transfer rate

Rate at which data can be transferred, usually measured in units per second. May vary with network configurations.

5000 Mbit/s


Maximum refresh rate

60 Hz


Supported video modes

The video modes that can be displayed by the device.

2160p


Maximum resolution (HDMI)

4096 x 2160 pixels


Product colour

The colour e.g. red, blue, green, black, white.

Grey


Housing material

What the casing of the product is made of.

Aluminium


USB Power Delivery (USB PD)




USB Power Delivery up to
0 W


Fast charging




Cable type

Type of cable e.g. electicity cable, optical cable.

Round cable


Cable length

How long the cable is.

0.18 m


Plug and Play

Indicates whether this product supports is "plug and play". Plug and play is hardware or software that, after being installed ("plugged in"), can immediately be used ("played with"), as opposed to hardware or software which requires configuration.





Features


Certification

HDMI


Power


Power supply type

The type of power supply which this product uses.

USB


System requirements


Windows operating systems supported

Windows vesions wich can be used with the device.

Windows 10, Windows 11, Windows 7, Windows 8, Windows 8.1


Mac operating systems supported

Mac operating systems e.g. OS X can be used with the device.

MacOS


Linux operating systems supported

8 RT. Linux (9.4, 9.5), Red Hat Enterprise Linux 5.0 (supported with a pre-built package); SUSE Linux (10.3, 11.0, 11, 11.1, 11.2), Fedora (9, 9.0, 10, 10.0, 11.0, 11, 12, 12.0), Ubuntu (8.04, 8.04.1, 8.04.2, 8.10, 9.04, 9.10, 10.04), Debian (5.0, 5.0.1, 5.0.2, 5.0.3)




Other operating systems supported

Android, ChromeOS, iOS, iPadOS


Compatible operating systems

List of desktop operating systems tested as compatible with this product.

Nintendo OS


Weight & dimensions


Width

The measurement or extent of something from side to side.
8.2 mm


Depth

The distance from the front to the back of something.

40 mm


Height

The measurement of the product from head to foot or from base to top.
.2 mm


Packaging data


Quantity per pack

1 pc(s)


Package type

The type of product package e.g. box.

Hanging box


Packaging content


Quick start guide

Instructions, either online, as a computer program or in paper form, to allow you to set up and start using the product quickly.




Operational conditions


Operating temperature (T-T)

The minimum and maximum temperatures at which the product can be safely operated.

0 - 40 °C


Operating relative humidity (H-H)
- 90%


Storage relative humidity (H-H)

5 - 90%


Design


Cable colour

Colour of the cable e.g. white, gray.

Black


Technical details


Compliance certificates

BSMI, CE, EAC, Federal Communications Commission (FCC), RoHS, UKCA
