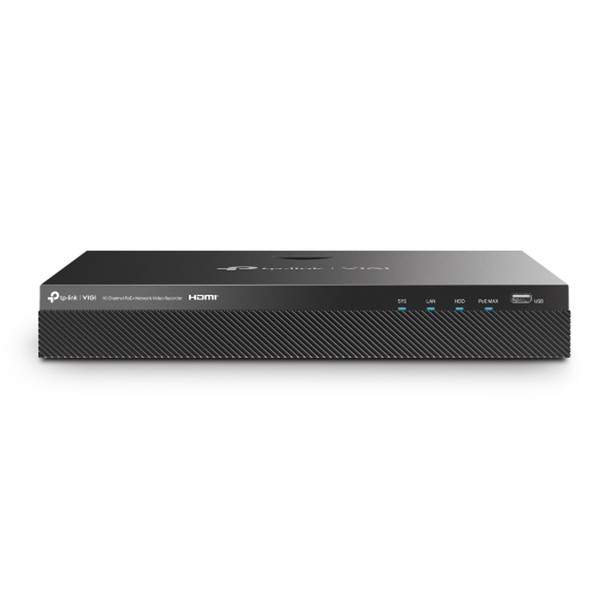

TP-Link VIGI NVR2016H-16MP 16 channels 3840 x 2160 pixels 16 channels 720p 1080p VIGI NVR2016H-16MP

TP-Link VIGI NVR2016H-16MP. Video input channels: 16 channels, Maximum resolution: 3840 x 2160 pixels, Number of simultaneously playbacked channels: 16 channels. Maximum storage capacity: 10 TB, HDD interface: SATA. Ethernet LAN data rates: 10,100,1000 Mbit/s, Networking standards: IEEE 802.3af, IEEE 802.3at, Supported network protocols: UPnP (Plug and Play), NTP (Network Timing). Product colour: Black, Certification: CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC, HDMI. Power consumption (max): 40 W, Output current: 2.43 A, Output voltage: 53.5 V

Weight & dimensions


Package weight

4.1 kg


Height

45 mm


Width

330 mm


Depth

285 mm


Weight

2.1 kg



Packaging content


Cables included

AC


Quick installation guide

Yes


AC adapter included

Yes



Hard drive


HDD capacity

0 GB


Maximum storage capacity
TB


HDD interface

SATA


Number of HDDs supported

2



Features


Reset button

Yes


Product colour

Black


Certification

CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC, HDMI



Wireless LAN features


Wi-Fi

No



Operational conditions


Operating temperature (T-T)

-10 - 55 C


Operating relative humidity (H-H)
- 90


Storage temperature (T-T)

-40 - 70 C



Performance


Video input channels
channels


Output bandwidth

60 Mbit/s


Maximum resolution

3840 x 2160 pixels


Audio formats supported

G.711 A-law, G.711 -law, G.726


Recording modes

Manual, Schedule


Video recording modes

720p, 1080p


Playback modes

Digital zoom, Fast play, Forward, Full screen, Pause, Play, Stop


Video formats supported

H.264, H.264+, H.265, H.265+


Playback controls

Yes


Video motion detection

Yes


Maximum frame rate

30 fps


Input bandwidth

80 Mbit/s


Number of simultaneously playbacked channels
channels



Ports & interfaces


Networking standards

IEEE 802.3af, IEEE 802.3at


eSATA ports quantity

1


Supported network protocols

UPnP (Plug and Play), NTP (Network Timing)


Power over Ethernet (PoE)

Yes


Power over Ethernet (PoE) ports quantity



VGA (D-Sub) output ports

1


HDMI ports quantity

1


eSATA

Yes


Audio output

1


Internal SATA ports quantity

2


Ethernet LAN (RJ-45) ports

1


DC-in jack

Yes


Line-in

Yes


Ethernet LAN data rates
,100,1000 Mbit/s


USB 2?0 ports quantity

2



Power


Total Power over Ethernet (PoE) budget
0 W


Output voltage

53.5 V


Output current

2.43 A


Power consumption (max)

40 W
