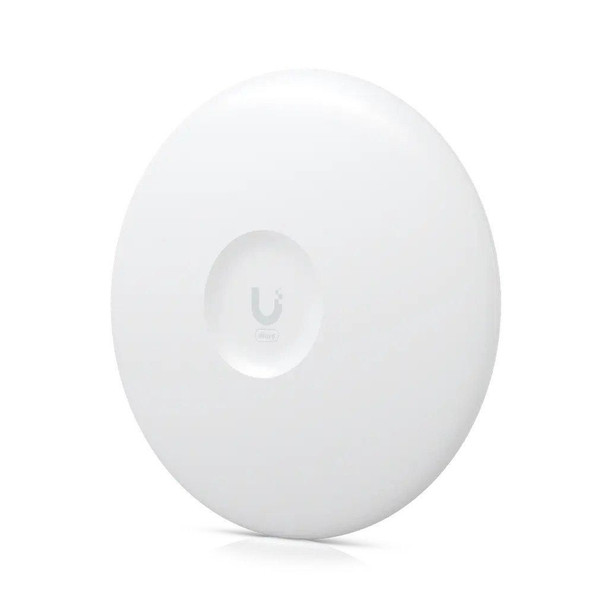

Ubiquiti WAVE-PRO-EU High-capacity 60 GHz radio WAVE-PRO

High-capacity 60 GHz radio that supports long-distance PtP (bridge) and PtMP links.

Antenna



Antenna gain level (max)



46 dBi


Antenna type



Internal


Certificates



Certification



FCC, IC, CE


Data transmission



Maximum data transfer rate



5400 Mbit/s


Maximum transfer distance



15000 m


Design



Certification



FCC, IC, CE


Housing material



Aluminium, Plastic


International Protection (IP) code



IPX6


LED indicators



GPS, LAN, Link, Power


Placement



Pole


Product colour



White


Reset button



Yes


Features



2.4 GHz



No


5 GHz



Yes


6 GHz



No


Bluetooth



Yes


Channel bandwidth



2160 MHz


Ethernet LAN data rates



2500


Frequency band



57 - 71 GHz


GPS (satellite)



Yes


International Protection (IP) code



IPX6


Isolation



20 dB


LED indicators



GPS, LAN, Link, Power


Material



Aluminium, Plastic


Maximum data transfer rate



2500 Mbit/s


Maximum outdoor range



15000 m


Mounting type



Pole


Network Time Protocol (NTP) client



Yes


Networking standards



IEEE 802.11ax


Power LED



Yes


Product colour



White


Product type



Network bridge


Reset button



Yes


Throughput data rate



5400 Mbit/s


Memory



RAM capacity



512 MB


RAM type



DDR3L


Network



Ethernet LAN



Yes


Ethernet LAN data rates



2500


Ethernet LAN interface type



Multi-Gigabit Ethernet


Operational conditions



Operating relative humidity (H-H)



5 - 95 %


Operating temperature (T-T)



-40 - 140 �F


Operating temperature (T-T)



-40 - 60 �C


Package dimensions



Gross Weight (Package, kg)



2.8 kg


Packaging content



Mounting bracket(s) included



Yes


Mounting kit



Yes


Number of products included



1 pc(s)


PoE adapter included



Yes


Quick installation guide



Yes


Quick start guide



Yes


Packaging data



Quantity per pack



1 pc(s)


Performance



Built-in processor



Yes


Internal memory



512 MB


Processor frequency



1400 MHz


Processor model



ARM Cortex-A53


Ports & interfaces



Connectivity technology



Wired & Wireless


DC-in jack



Yes


Ethernet LAN (RJ-45) ports



2


Power



DC input voltage



22 - 27, 44 - 54 V


DC output voltage



48 V


Output current



0.65 A


Output voltage



48 V


Power consumption (max)



26 Watt


Power over Ethernet (PoE)



Yes


Power over Ethernet (PoE) type supported



Passive PoE


Power source type



DC, PoE


Processor



Processor family



ARM Cortex


Processor frequency



1400 MHz


Processor manufacturer



ARM


Processor model



Cortex-A53


Product dimensions



Net Weight (Product, kg)



2.8 kg


Product Depth



42.44 cm


Product Height



16.62 cm


Product Width



42.44 cm


Security



Security algorithms



WPA2-PSK


Vendor information



Brand Name


Ubiquiti


Warranty



2 Year(s)


Wireless LAN features



Frequency band



5.15 - 5.875 GHz


Modulation



16-QAM, 64-QAM, 256-QAM, 1024-QAM, BPSK, QPSK


Top Wi-Fi standard



Wi-Fi 6 (802.11ax)


Wi-Fi



Yes


Wi-Fi band



Single-band (5 GHz)
