Ventev M6060060D3D3602TM 2400~2500 / 4900~5900 MHz M6060060D3D3602TM

Description

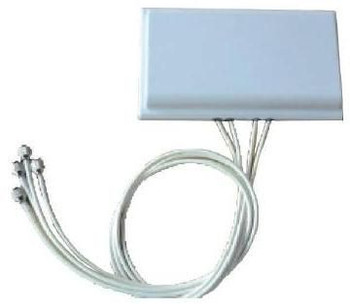

Ventev�s Small Form Factor Patch Wi-Fi Antenna with Medium Strength Articulating Mount offers outstanding Wi-Fi performance in a small package with a rugged mounting solution. The antenna and mount combination are designed for use indoors or outdoors and are compatible with Cisco 2602e, 2702e, 3602e, 3702e, and 1850e access points. The mount articulates horizontally and vertically for a variety of mounting positions and can be installed on poles or walls. This antenna and mount combination ships both products in a single box.

Features



Antenna connector type



RP-TNC


Compatible products



Cisco 2602e, 2702e, 3602e, 3702e, 1850e


Front to back ratio



15 dB


International Protection (IP) code



IP54


Mounting



Wall/Pole


Power handling



20 Watt


Product colour



White


Purpose



Indoor & outdoor


Ultraviolet (UV) resistant



Yes


Voltage Standing Wave Ratio (VSWR)



2:1


Operational conditions



Operating temperature (T-T)



-40 - 70 �C


Package dimensions



Depth (package,cm)



46.77 cm


Gross Weight (Package, kg)



0.49 kg


Height (package,cm)



30.65 cm


Width (package,cm)



46.77 cm


Packaging content



Mounting kit



Yes


Performance



Antenna gain level (max)



6 dBi


Bandwidth note



100/985 MHz


Frequency band



2.4 - 5.9 GHz


Horizontal beam width



80 �


Impedance



50 ?


Vertical beam width



90 �


Product dimensions



Net Weight (Product, kg)



0.39 kg


Product Depth



2.5 cm


Product Height



11.9 cm


Product Width



11.9 cm


Vendor information



Brand Name


Ventev


Warranty



2 Year(s)
