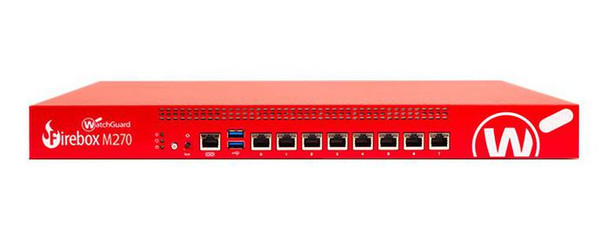

WatchGuard WGM27071 Firebox M270 Hardware WGM27071

Make your WatchGuard Firebox M270 even more robust with a second High Availability unit for active/passive clustering.

The Firebox M270 High Availability includes 1 year Standard Support for hardware warranty, technical support, and software updates.

he Firebox M270 in short:- 8 1 Gb ports
- Manage and monitor your device with WatchGuard System Manager, the WatchGuard management servers, and WatchGuard Dimension
- Available with Standard Support, the Basic Security Suite or Total Security

Standard Support includes:- Hardware warranty
- Unlimited 24x7 technical support
- Software updates
- Threat alerts
- Access to security education resources

Data transmission



Branch Office VPN



50


Firewall throughput



4900 Mbit/s


Maximum firewall connections per second



40000


Design



Form factor



1U


Rack mounting



Yes


Logistics data



Harmonized System (HS) code



85176990


Management features



Web-based management



Yes


Memory



Internal memory



4096 MB


Network



DHCP client



Yes


DHCP server



Yes


Networking standards



IEEE 802.3ad


Number of users



500 user(s)


Number of VLANs



100


Point-to-point protocol over Ethernet (PPPoE)



Yes


Quality of Service (QoS) support



Yes


Operational conditions



Non-operating altitude



0 - 4570 m


Operating altitude



0 - 3000 m


Operating relative humidity (H-H)



10 - 85 %


Operating temperature (T-T)



0 - 40 �C


Storage relative humidity (H-H)



10 - 95 %


Storage temperature (T-T)



-40 - 70 �C


Package dimensions



Depth (package,cm)



13 cm


Gross Weight (Package, kg)



4.69 kg


Height (package,cm)



54 cm


Width (package,cm)



56 cm


Performance



Built-in processor



Yes


Certification



WEEE, RoHS, REACH


Concurrent connections



2000000


Heat dissipation



256 BTU/h


Mean time between failures (MTBF)



51644 Hour


Processor cores



4


Processor family



Intel Atom�


Syslog



Yes


Ports & interfaces



Connectivity technology



Wired


Console port



RJ-45


Ethernet LAN (RJ-45) ports



8


Ethernet LAN data rates



10, 100, 1000


USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity



2


Power



AC input voltage



100-240 V


Power consumption (typical)



75 Watt


Product dimensions



Net Weight (Product, kg)



3.61 kg


Protocols



Management protocols



SNMP v2/v3


Routing protocols



BGP4, OSPF, RIP-1, RIP-2


Supported network protocols



HTTP, HTTPS, FTP, DNS, TCP/UDP, POP3, SMTP, IMAPS, POP3S, IPv6


Security



DDoS protection



Yes


Deep Packet Inspection (DPI)



Yes


Security algorithms



3DES, 128-bit AES, 256-bit AES, DES, SHA-2


Stateful Packet Inspection (SPI)



Yes


Vendor information



Brand Name


WatchGuard


Warranty



1 Year(s)


Weight & dimensions



Dimensions (WxDxH)



438 x 44 x 320 mm
