Western Digital

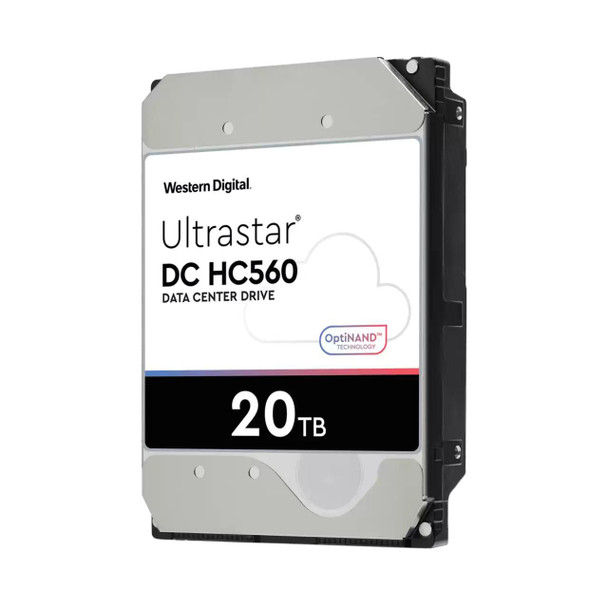

Western Digital 0F38785 Ultrastar DC HC560 3.5" 20000 0F38785
(No reviews yet)
Write a Review
- UPC:
- 5715063043011
- MPN:
- 0F38785
- Condition:
- New
- Availability:
- Available to Order: 3 - 4 weeks leadtime
Description
20TB capacity with a reimagined HDD
An innovative storage architecture to help our customers meet their need for exponential data growth.
Reimagining the HDD for Exponential Data Growth
Hyperscale cloud, CSPs, enterprises, smart video surveillance partners, NAS suppliers and more need storage solutions to meet the exponential growth in data creation. When it comes to cost-effective storage of data at scale, hard disk drives (HDDs) continue to play a central role. HDDs deliver the capacity, performance and reliability needed to store vast amounts of data today and well into the future. Investments in HDD technology remain critical to supporting worldwide data growth.
Western Digital has developed flash-enhanced drives with OptiNAND� technology by vertically integrating our leading NAND flash with our world-class HDDs. Western Digital HDDs have been leaders in areal density with industry first technologies of energy-assisted magnetic recording technology (EAMR), triple-stage actuator (TSA), HelioSeal�, and now OptiNAND technology. Higher areal density means higher capacities to meet storage challenges.
20TB1 HDDs with OptiNAND Technology
OptiNAND integrates an iNAND� Universal Flash Storage (UFS) Embedded Flash Drive (EFD) with traditional spinning disk media, and incorporates innovative changes to the firmware algorithm and system-on-a-chip (SoC). OptiNAND is not a hybrid technology. The drive works smarter, with enhanced firmware algorithms taking advantage of expanded metadata that has been offloaded to the iNAND, enabling more tracks per inch (TPI) with resulting increased areal density.
The Ultrastar DC HC560, with the first implementation of OptiNAND technology�s capacity-enabling features, delivers an unbeaten 20TB capacity in a nine-disk platform (2.2TB/platter) with CMR recording format
Features
24/7 operation
Yes
Average latency
4.16 Millisecond
Component for
Server/workstation
HDD capacity
20 TB
HDD interface transfer rate
6 Gbit/s
HDD size
3.5 "
HDD speed
7200 RPM
HDD sustained transfer rate
257 MiB/s
Interface
Serial ATA
Linux operating systems supported
Y, Yes
Mean time between failures (MTBF)
2.5 Hour
Storage drive buffer size
512 MB
Type
HDD
Windows operating systems supported
Y, Yes
Workload rate limit
550 TB/year
Logistics data
Harmonized System (HS) code
84717050
Operational conditions
Non-operating shock
250 G
Non-operating vibration
1.04 G
Operating shock
50 G
Operating temperature (T-T)
5 - 60 �C
Operating vibration
0.7 G
Storage temperature (T-T)
-40 - 70 �C
Package dimensions
Gross Weight (Package, kg)
0.8 kg
Product dimensions
Net Weight (Product, kg)
0.69 kg
Product Depth
2.62 cm
Product Height
14.7 cm
Product Width
10.16 cm
Vendor information
Brand Name
Western Digital
Warranty
1 Year(s)
