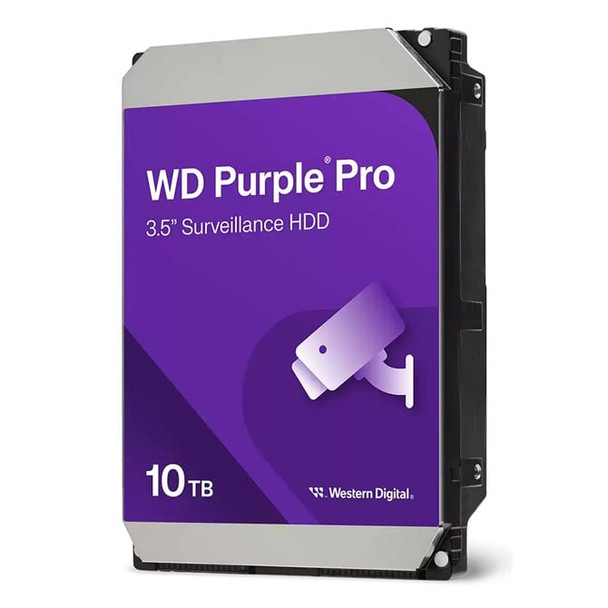

Western Digital Purple Pro WD102PURP Internal Hard Drive 10 TB 7200 RPM 512 MB 3 WD102PURP

Advanced Storage for Smart Video Solutions

WD Purple Pro drives are designed for advanced AI-enabled recorders, video analytics servers and deep learning solutions requiring additional capacity, performance and workload capability.

Purpose-built storage for your smart video solution
The WD Purple™ Pro HDD, with OptiNAND™ technology in 24TB1, delivers big capacity in an enterprise-class drive for video analytics servers, AI, and deep learning systems to enable data-driven outcomes.

Western Digital's exclusive AllFrame™ AI technology
AllFrame AI technology supports up to 32 AI streams for deep learning analytics within the system while reducing frame drops.

Multiple cameras, multiple streams
WD Purple™ Pro drives are optimized to handle up to 64 single-stream HD cameras2 in addition to 32 concurrent AI streams. This flexibility allows you to easily upgrade and scale your smart video solution to meet your changing needs.

Advanced workload capability for advanced systems
These reliable drives are built with a workload rating up to 550TB/year3 to keep up with the 24/7 data capture and analysis demands of advanced AI-enabled recorders, video analytics appliances, and deep learning analytics servers.

Designed for reliable operation
Engineered with an MTBF of up to 2.5 million hours4 and backed with a 5-year limited warranty, the WD Purple™ Pro HDD also features tarnish-resistant components and full multi-bay support for dependable operation in large-scale surveillance systems.

Proactive storage management with WDDA™
Western Digital Device Analytics™ (WDDA) provides drive health management features for compatible recorders and video management systems.

Specs




Features


HDD capacity

The maximum storage capacity of the hard disk, usually measured in bytes e.g. GB.
TB


HDD speed

The rotational speed of a hard disk expressed in rotations per minute. The faster the better.

7200 RPM


Storage drive buffer size

512 MB


HDD size

The amount of data that the hard drive can store.

3.5"


Interface

Interface ports to connect pieces of equipment. USB (Universal Serial Bus) has become the most popular wired interface to connect peripherals. USB 2.0 supports speeds up to 480 Mbit/s (USB 1: 12 Mbit/s). The interface FireWire is also known as the IEEE 1394 standard. Enhanced IDE (EIDE)is sometimes referred to as Fast ATA, Fast IDE or ATA-2.

Serial ATA III


Type

Characteristics of the device.

HDD


Component for

What this product is used as a part of (component for).

Server/workstation


HDD interface transfer rate

6 Gbit/s


HDD average transfer rate

272 MB/s


Operational conditions


Operating temperature (T-T)

The minimum and maximum temperatures at which the product can be safely operated.

0 - 60 °C



Operational conditions


Storage temperature (T-T)

The minimum and maximum temperatures at which the product can be safely stored.

-40 - 70 °C


Weight & dimensions


Width

The measurement or extent of something from side to side.
1.6 mm


Height

The measurement of the product from head to foot or from base to top.

26.1 mm


Depth

The distance from the front to the back of something.
7 mm


Weight

Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.

750 g


Packaging data


Quantity per pack

1 pc(s)


Other features


Certification

BSMI, ICES-003/NMB-003, CE, FCC, KC, Maghreb, RCM, UKCA, VCCI, CB-Scheme, TUV, UL
