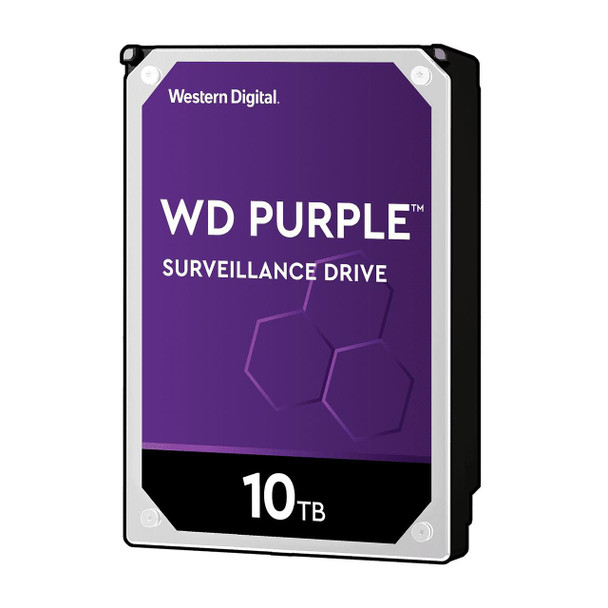

Western Digital WD102PURZ-RFB Purple 10TB SATA 6Gb/s CE WD102PURZ-RFB

The Right Drive for the Job
WD Purple drives have been engineered specifically for the extreme demands of high temperature, 24/7 surveillance systems.

Performance You Can Trust
From a worldwide leader in the storage industry, WD Purple is engineered for quality video playback when you need it most.

Expand Your View to 64
WD Purple drives are optimized to support up to 64 cameras, giving you flexibility to upgrade or expand your security system.

Seamless Integration
With A Wide Range Of Industry-Leading Enclosures And Chipsets Supported, You're Sure To Find The Configuration And Compatibility That's Right For Your Nvr.

Less Is More
Low Power Consumption Is A Must In A High-Temperature, Always-On Surveillance Environment. Intelliseek Technology Helps Reduce Damaging Ambient Noise And Vibrations.

Designed For Surveillance
The WD Purple Drive Is Designed For Both Dvr And Nvr Security Systems, And Is Compatible With Many Of The The Leading Surveillance And Security Manufacturers. We Can Help You Find The Perfect Storage For Your System.

Features



24/7 operation



Yes


Component for



Surveillance system


HDD capacity



10 TB


HDD interface transfer rate



6 Gbit/s


HDD size



3.5 "


HDD speed



7200 RPM


HDD sustained transfer rate



265 MiB/s


Hot-swap



No


Interface



Serial ATA III


Mean time between failures (MTBF)



1500000 Hour


Noise level (idle)



34 dB


RoHS compliance



Yes


Start/stop cycles



300000


Storage drive buffer size



256 MB


Type



HDD


Workload rate limit



360 TB/year


Logistics data



Harmonized System (HS) code



84717050


Operational conditions



Non-operating shock



250 G


Operating shock



70 G


Operating temperature (T-T)



0 - 65 �C


Storage temperature (T-T)



-40 - 70 �C


Package dimensions



Depth (package,cm)



14.5 cm


Gross Weight (Package, kg)



0.88 kg


Height (package,cm)



2.7 cm


Width (package,cm)



10.2 cm


Packaging data



Quantity



1


Storage drive adapter included



No


Power



Power consumption (idle)



8 Watt


Power consumption (read)



9 Watt


Power consumption (standby)



0.5 Watt


Power consumption (write)



9 Watt


Product dimensions



Net Weight (Product, kg)



0.74 kg


Product Depth



14.7 cm


Product Height



2.61 cm


Product Width



10.16 cm


Technical details



Harmonized System (HS) code



84717050


Sustainability certificates



RoHS


Vendor information



Brand Name


Western Digital


Warranty



1 Year(s)
