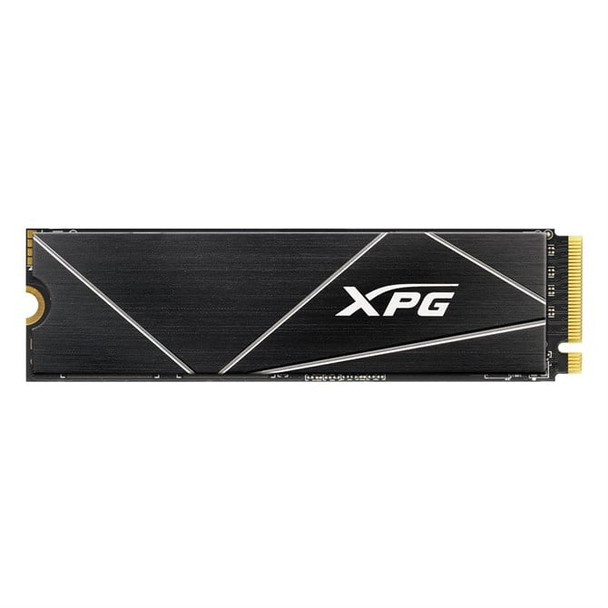

XPG GAMMIX S70 Blade 2 TB M.2 PCI Express 4.0 NVMe 3D NAND AGAMMIXS70B2TCS

Speed Ahead with PCIe 4.0
With the latest PCIe Gen4 interface, the GAMMIX S70 BLADE will help you dominate the competition with sequential read/write performance of up to 7400/6800/MB per second. That's up to two times faster than PCIe 3.0 SSDs! For ease of use, it's backward compatible with PCIe 3.0.

Cool in the Heat of Battle
Sporting a robust high-temperature resistant aluminum heatsink, the GAMMIX S70 BLADE gets rid of heat effectively. So effective in fact it is able to reduce temperatures by up to 20 percent. Plus, the heatsink looks amazing too with its streamlined surface and ridged geometric lines.

Perfect for Compact and Thin Devices
Featuring a M.2 2280 form factor, the GAMMIX S70 BLADE is perfect for laptops and thinner devices, giving you the performance you need regardless of space constraints.

Boosting Your Performance
In combination with Dynamic SLC Caching and DRAM Cache Buffer, the GAMMIX S70 BLADE gives you a performance boost for video editing, rendering, and gaming.

Security and Integrity
On top of its core performance characteristics, the S70 BLADE supports LDPC error correcting code technology to detect and fix a comprehensive range of data errors for accurate data transmissions. In addition, with End-to-End (E2E) Data Protection, RAID Engine support, and AES 256-bit Encryption, the S70 BLADE ensures data security and integrity.

Specs




Features


NVMe version

1.4


Security algorithms

Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product.

256-bit AES


SSD capacity

The Solid State Drive's data storage capacity.

2 TB


SSD form factor

The size of the solid-state drive, given in inches

M.2


Interface

Interface ports to connect pieces of equipment. USB (Universal Serial Bus) has become the most popular wired interface to connect peripherals. USB 2.0 supports speeds up to 480 Mbit/s (USB 1: 12 Mbit/s). The interface FireWire is also known as the IEEE 1394 standard. Enhanced IDE (EIDE)is sometimes referred to as Fast ATA, Fast IDE or ATA-2.

PCI Express 4.0


NVMe

NVM Express (NVMe) or Non-Volatile Memory Host Controller Interface Specification (NVMHCIS) is an open logical device interface specification for accessing non-volatile storage media attached via a PCI Express (PCIe) bus. NVM Express, as a logical device interface, has been designed to capitalize on the low latency and internal parallelism of solid-state storage devices.




Memory type

Type of memory in the device e.g. DDR3, SRAM (Static RAM).

3D NAND


Component for

What this product is used as a part of (component for).

PC


Hardware encryption




Read speed

The speed at which a device can read data.

7400 MB/s


Write speed

The speed at which a device can write data.

6400 MB/s


Random read (4KB)

750 IOPS


Random write (4KB)

750 IOPS


Controller type

Innogrit IG5236


PCI Express interface data lanes

x4



Features


ECC

ECC means Error Correction Code, and it is memory that is able to detect and correct some memory errors without user intervention.




Mean time between failures (MTBF)

Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism.
00000 h


TBW rating
80


Certification

CE, FCC, BSMI, KC, Morocco, EAC


Brand-specific features


Brand specific technologies

SLC Caching


Weight & dimensions


Width

The measurement or extent of something from side to side.

22 mm


Depth

The distance from the front to the back of something.

4.3 mm


Weight

Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
g


Operational conditions


Operating temperature (T-T)

The minimum and maximum temperatures at which the product can be safely operated.

0 - 70 °C


Storage temperature (T-T)

The minimum and maximum temperatures at which the product can be safely stored.

-40 - 85 °C


Operating shock

Environmental requirements for optimal protection from impact in operating mode
00 G


Logistics data


Harmonized System (HS) code

84717070
