Zalman CNPS10X PERFORMA WHITE High Performance White Coated CNPS10X PERFORMA WHITE

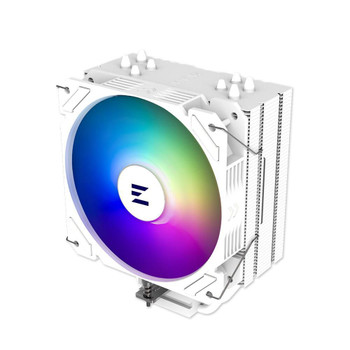

Zalman CNPS10X Performa White
Ready for Intel 12th generation processors
It is fully compatible with the latest Intel processors and AMD Ryzen. The power management technology for each processor is seamless, so you don't have to worry about compatibility issues.

Excellent cooling performance
An optimally designed aluminum radiant fin and 4 heat pipes are used to effectively dissipate the heat from the CPU.

Zalman's DTH technology
Direct Touch Heatpipes (DTH) technology, which transfers heat directly from the CPU to a heatpipe, utilizes or minimizes thermal resistance and maximizes cooling performance.

Asymmetrical heatsink
Asymmetric heat pipes provide more memory space.

Powerful fan with 135 mm . annular blades
- Anti vibration
- Strong durability
- Noise reduction
- Powerful airflow
- VRM cooling motherboard

Long Life EBR Bearing
An EBR bearing is more advanced by preventing dust from entering the bearing housing and enables stable and near-silent operation, resulting in a product that cools your PC with less noise.

PWM fan for automatic speed control
PWM automatically adjusts fan speed based on the user's ambient noise level to provide optimal performance.

Electrophoretic Coating Process
Special white coating ensures optimum heat transfer during electrophoresis.

Specifications
Model: CNPS10X PERFORMA WHITE
Dimensions: 135 x 95 x 155 (H) mm
Materials: Pure copper, pure aluminum
Weight: 860g
Heat dissipation area: 9,271 cm�
Heat pipe: 4
TDP: 180W
Fan dimensions: 135 x 135 x 25 (H) mm
Fan Bearing Type: EBR Bearing
Fan Speed: 700 1,500 RPM � 10%
Maximum fan noise level: 27.0 dB (A) � 10%
Maximum fan airflow: 75.16 CFM
Maximum fan air pressure: 1.35 mm H�O
Fan life: 50,000 hours
Fan connector type: 4-pin
Fan Control Method: PWM Control
Rated voltage: 12V DC
Rated current: 0.2A
Power consumption: 2.4 W
Socket Compatibility: Intel LGA 1700/2066/2011-V3/2011/1200/115X CPUs, AMD AM4 CPUs

Design



Fan connector



4-pin


Material



Aluminium, Copper


Number of heat pipes



4


Product colour



White


Package dimensions



Gross Weight (Package, kg)



0.26 kg


Performance



Fan diameter



13.5 cm


Maximum air pressure



1.35 mmH2O


Maximum airflow



75.16 cfm


Mean time between failures (MTBF)



50000 Hour


Noise level (high speed)



27 dB


Pulse-width modulation (PWM) support



Yes


Rotational speed (max)



1500 RPM


Rotational speed (min)



700 RPM


Suitable location



Processor


Supported processor sockets



LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1700, LGA 2011 (Socket R), LGA 2011-v3 (Socket R), LGA 2066


Type



Air cooler


Power



Fan power consumption



2.4 Watt


Rated current



0.2 A


Rated voltage



12 V


Thermal Design Power (TDP)



180 Watt


Product dimensions



Net Weight (Product, kg)



0.2 kg


Product Depth



2.5 cm


Product Height



13.5 cm


Product Width



13.5 cm


Vendor information



Brand Name


Zalman


Warranty



1 Year(s)
