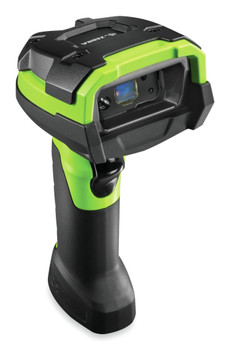

Zebra Ds3678-Hd. Type: Handheld Bar Code Reader Scanner Type: 1D/2D Sensor Type: DS3678-HD2F003VZWW

Zebra DS3678-HD. Type: Handheld bar code reader, Scanner type: 1D/2D, Sensor type: Laser. Connectivity technology: Wired & Wireless, Standard interfaces: RS-232, USB, Keyboard wedge, Wireless range: 100 m. Product colour: Black, Green, International Protection (IP) code: IP67, Protection features: Dust resistant, Shock resistant, Water resistant. Power source type: Battery, Battery technology: Lithium-Ion (Li-Ion), Battery capacity: 3100 mAh. Weight: 411 g, Width: 142 mm, Depth: 76 mm Unstoppable performance for high density 1D/2D barcodes As a member of the Zebra 3600 Ultra-Rugged Series of scanners, the practically indestructible 1D/2D DS3608-HD corded and DS3678-HD cordless scanner is ready for one of the world's toughest environments - the electronics manufacturing production line. You get the truly unstoppable performance you need to prevent the high cost of unplanned production line downtime. Your workers get first-time every time capture of the many types of small and high-density barcodes printed on the components in the products you make. And since these scanners also capture standard barcodes in virtually any condition, you get a real value - unstoppable performance in a single flexible device that can meet scanning needs from the assembly line to the warehouse.
Network & Communication

BluetoothYes

Miscellaneous

Additional Information
USB Cable separate

Environmentally FriendlyYes
Environmental ComplianceRestriction of Hazardous Substances (RoHS)

General Information

Product TypeBarcode Scanner
Manufacturer Part NumberDS3678-HD2F003VZWW
zebra/gb/en
ManufacturerZebra Technologies Corporation
Product ModelDS3678-HD
Product NameDS3678-HD Handheld Barcode Scanner
Product Series3600
Brand NameZebra


Technical Information

Barcode Symbology Supported1D:Code 39
Code 128
Code 93
Codabar/NW7
Code 11
MSI Plessey
UPC/EAN
I 2 of 5
Korean 3 of 5
GS1 DataBar
Base 32 (Italian Pharma)
2D:PDF417
Micro PDF417
Composite Codes
TLC-39
Aztec
DataMatrix
MaxiCode
QR Code
Micro QR
Chinese Sensible (Han Xin)
Postal Codes

Connectivity TechnologyWireless
Image Sensor TypeImager
Scanning Capability2D
1D

Physical Characteristics

Weight (Approximate)411.1 g
Form FactorHandheld
Height185.4 mm
Width76.2 mm
Depth142.2 mm
Product ColorIndustrial Green
