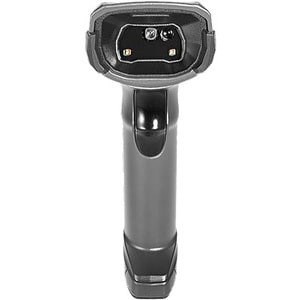

Zebra Ds8108-Sr. Type: Handheld Bar Code Reader Scanner Type: 1D/2D Sensor Type: DS8108-SR7U2100AZW

Zebra DS8108-SR. Type: Handheld bar code reader, Scanner type: 1D/2D, Sensor type: LED. Connectivity technology: Wired, Standard interfaces: USB. Product colour: Black, International Protection (IP) code: IP42. Input voltage: 5 V, Power consumption: 450 mA. Weight: 156 g, Width: 66 mm, Depth: 107 mm ULTIMATE IN PERFORMANCE A PowerPrecision Plus smart battery powers the DS8178 for up to 24 hours of continuous scanning on a single charge. The unique programmable charge indicator on the scanner lets you see at a glance when the battery needs charging, so you can ensure that your workers always start their day with a scanner that has ample power for the busiest shift. And with our proprietary Wi-Fi Friendly Mode, only from Zebra, you can confidently implement Bluetooth cordless models without creating interference on your wireless LAN (WLAN).
Interfaces/Ports

Host InterfaceUSB

Network & Communication

BluetoothYes

Technical Information

Barcode Symbology Supported
1D:Code 39
Code 128
Code 93
Codabar/NW7
Code 11
MSI Plessey
UPC/EAN
I 2 of 5
Korean 3 of 5
GS1 DataBar
Base 32 (Italian Pharma)

2D:PDF417
Micro PDF417
Composite Codes
TLC-39
Aztec
DataMatrix
MaxiCode
QR Code
Micro QR
Chinese Sensible (Han Xin)
Postal Codes

Connectivity TechnologyCable
Light SourceLED
Image FormatsBMP
JPEG
TIFF
Drop SpecificationDesigned to withstand multiple drops at 6.0 ft./1.8 m to concrete
Image Sensor TypeImager
Scanning Capability2D
1D
Field of View (Horizontal)48??
Field of View (Vertical)37??
Reading Angle (Skew)60??
Reading Angle (Pitch)60??
Maximum Ambient Light96840 lux
Minimum Print Contrast16%
Minimum Element Resolution (Code 39)0.08 mm


Miscellaneous

Package ContentsStandard cradle, presentation cradle, wall mount bracket, spare battery, spare PowerCap; document capture stands
Environmentally FriendlyYes
Ingress Protection (IP) RatingIP52
Environmental ComplianceRestriction of Hazardous Substances (RoHS)

Physical Characteristics

Weight (Approximate)153.1 g
Form FactorHandheld
Height167.6 mm
Width66 mm
Depth106.7 mm
Product ColorTwilight Black
Color FamilyBlack

General Information

Product TypeBarcode Scanner
Manufacturer Part NumberDS8108-SR7U2100AZW
zebra/gb/en
ManufacturerZebra Technologies Corporation
Product ModelDS8108
Product NameDS8108 Handheld Barcode Scanner
Product SeriesDS8100
Brand NameZebra
