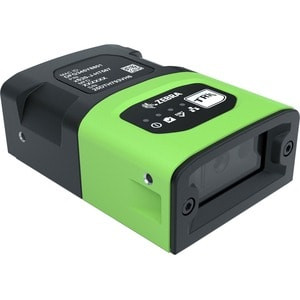

Zebra Fs20. Type: Fixed Bar Code Reader Scanner Type: 1D/2D Sensor Type: Cmos. C FS20-SR10F3-3C00W

Zebra FS20. Type: Fixed bar code reader, Scanner type: 1D/2D, Sensor type: CMOS. Connectivity technology: Wired, Standard interfaces: RJ-45, RS-232, Ethernet LAN data rates: 10,100,1000 Mbit/s. Product colour: Black, Green, Housing material: Aluminium, International Protection (IP) code: IP65, IP67. Power source type: DC, PoE, Power consumption (typical): 7.5 W, Input voltage: 10 - 30 V. Weight: 195 g, Width: 54.6 mm, Depth: 94.2 mm Easily integrate high quality scanning into your network The increasing demands of international commerce and its global supply chain are pressuring companies to deliver more-and to do it faster. From manufacturing to logistics to the end customer, success is driven by the ability to quickly move and track the products that drive your business. Address it all with the compact Zebra FS20 Fixed Industrial Scanner. With the FS20, it's easy to track and trace every item as it moves through production, storage and fulfillment. Scan barcodes on components moving through your assembly line to ensure the right part is used at the right time-and enable rapid targeted recalls of products that contain defective parts. Scan barcodes on items as they are placed on warehouse shelves to provide visibility into real time inventory. And scan barcodes when fulfilling orders to ensure the right items are sent to the right customer. Whatever you want to track and trace, the FS20 makes it easy. Zebra's smallest networkable Fixed Industrial Scanner fits wherever you need to capture barcodes. And with the powerful and intuitive Zebra Aurora software platform, the FS20 is exceptionally easy to set up, deploy and run. Multiple connectivity options make it easy to integrate with your PLC or Host network. When it comes to capturing barcodes, Zebra-exclusive features like ImagePerfect and PRZM Intelligent Imaging deliver first-time, every-time capture of every barcode in virtually any condition. As your needs change, easily add support for new codes, increase scanning speed and upgrade to machine vision functionality all through the simple purchase of software licenses that future-proof your investment. Take your success to the next level with extraordinary visibility into your operational processes with the FS20, only from Zebra. Easy to Set Up Automatic Setup With Auto-Tune Just Auto-Tune and run for consistent, reliable read rates-right out of the box. With the press of one button, Auto-Tune dials in the perfect image for faster and more accurate set up. IoT Ready With Zebra Savanna The IoT-ready FS20 can send images to Zebra's subscription-based cloud service, Zebra Savanna----or any other cloud service-allowing you to meet industry regulations or store images for further analysis, all without the need to purchase and manage servers. Power it All Over Ethernet Reduce setup complexity and cost with support for Power-over-Ethernet (PoE). This standard feature powers the FS20 and attached accessories right over the network, eliminating the cost of power drops and power supplies. Don't have a PoE infrastructure? No problem. You can also power the FS20 with a standard 24V DC power supply.
Interfaces/Ports

Host InterfaceSerial

Miscellaneous

Application/UsageIndustrial
Ingress Protection (IP) RatingIP67
IP65

Technical Information

Barcode Symbology Supported1D:
Codabar
Code 39
Code 93
Code 128
I 2 of 5
MSI Plessey
UPC/EAN
2D:Aztec
Data Matrix
DotCode
MaxiCode
PDF417
Micro PDF417
QR Code
Micro QR
OCR:Deep Learning-based OCR via an add-on license1 . Supports Latin Letters (A-Z, a-z, digits or one of: !#$%&()*+,-./:;?@[]^_'{|}
"'\--?-?-)

Connectivity TechnologyCable
Scanning Distance609.60 mm
Light SourceLED
Scanner RangeStandard Range
Image Sensor TypeCMOS
Illumination TypeLED
Illumination ColorRed
Cable Type IncludedSerial
Scanning Capability2D
1D
Field of View (Horizontal)35??
Field of View (Vertical)26??
Minimum Element Resolution (DataMatrix)0.13 mm
Maximum Element Resolution (DataMatrix)0.38 mm


General Information

Product TypeBarcode Scanner
Manufacturer Part NumberFS20-SR10F3-3C00W
Manufacturer Website Addresshttp://www.zebra.com/gb/en
ManufacturerZebra Technologies Corporation
Product ModelFS20
Product NameFS20 Fixed Industrial Scanner
Brand NameZebra

Physical Characteristics

Weight (Approximate)195 g
Form FactorFixed Mount
Height27.9 mm
Width53.3 mm
Depth94 mm
Product ColorIndustrial Green
Color FamilyGreen
RuggedYes
