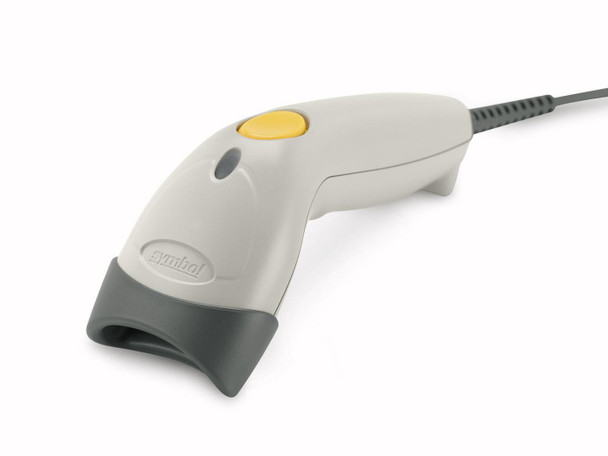

Zebra LS1203-1AZU0100ZR Ls1203 1D Laser Scanner White LS1203-1AZU0100ZR

This bi-directional LS1203 handheld scanner handles all 1D bar codes and is ideal for small retailers. It delivers the functionality, features and reliability needed to improve operational efficiencies from the check-out line to the storeroom. It minimizes manual keying � ensuring accuracy in all customer transactions � and it automates paper-based inventory processes. The device easily integrates multiple interfaces to help ensure connectivity to a host and PC system.

Durable, single-board construction
Meets 5-ft drop tests, significantly reducing downtime and repair costs.

Multiple interfaces: RS232, USB, keyboard wedge (KBW) in one scanner
Simplifies installation and integration, ensuring future compatibility.

Sleek, lightweight, ergonomic design
Maximizes comfort for all-day use.

Intuitive scanning and plug-and-play capability
Minimizes setup and training time.

Choice of triggered or continuous mode
Ensures versatile, accurate first-time scanning.

Design



Product colour



White


Logistics data



Harmonized System (HS) code



84716070


Operational conditions



Operating relative humidity (H-H)



5 - 95 %


Operating temperature (T-T)



0 - 50 �C


Storage temperature (T-T)



-40 - 70 �C


Other features



Dimensions (WxDxH)



60 x 180 x 62 mm


Electromagnetic emissions



FCC P. 15 Cl. B, ICES 003 Cl. B


Light source



650nm


Safety



UL 60950-1, C22.2 No. 60950-1, EN 60950-1, IEC 60950-1,EN 60825-1, IEC 60825-1, 21CFR1040.10


Package dimensions



Gross Weight (Package, kg)



0.21 kg


Performance



Product colour



White


Ports & interfaces



Standard interfaces



USB


Power



Input voltage



5 V


Power consumption



100 mA


Product dimensions



Net Weight (Product, kg)



0.005 kg


Product Depth



2.54 cm


Product Height



2.54 cm


Product Width



2.54 cm


Scanning



Decoding standards



UPC/EAN UPC/EAN + Supplementals UCC/EAN 128 Code 39 Code 39 Full ASCII Code 39 TriOptic Code 128 Code 128 Full ASCII Codabar Interleaved 2/5 Discrete 2/5 Code 93 MSI Code 11 IATA GS1 DataBar (RSS) Chinese 2/5


Pitch reading angle



-65 - 65 �


Scan speed



100 sec/page


Scanner type



1D


Sensor type



Laser


Tilt reading angle



-30 - 30 �


Yaw reading angle



-60 - 60 �


Technical details



Harmonized System (HS) code



84716070


Vendor information



Brand Name


Zebra


Warranty



3 Year(s)
