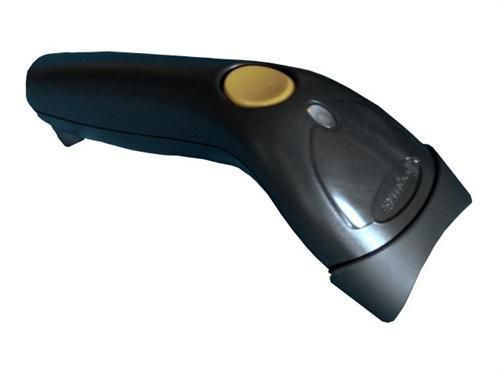

Zebra LS1203-7HDU0100SR Symbol LS1203. HD. USB Kit LS1203-7HDU0100SR

This bi-directional LS1203 handheld scanner handles all 1D bar codes and is ideal for small retailers. It delivers the functionality, features and reliability needed to improve operational efficiencies from the check-out line to the storeroom. It minimizes manual keying � ensuring accuracy in all customer transactions � and it automates paper-based inventory processes. The device easily integrates multiple interfaces to help ensure connectivity to a host and PC system.

Durable, single-board construction
Meets 5-ft drop tests, significantly reducing downtime and repair costs.

Multiple interfaces: RS232, USB, keyboard wedge (KBW) in one scanner
Simplifies installation and integration, ensuring future compatibility.

Sleek, lightweight, ergonomic design
Maximizes comfort for all-day use.

Intuitive scanning and plug-and-play capability
Minimizes setup and training time.

Choice of triggered or continuous mode
Ensures versatile, accurate first-time scanning

Design



Certification



FCC Part 15 B, ICES-003 B, EMC, SMA, VCCI/MITI/Dentori


Product colour



Black


Logistics data



Harmonized System (HS) code



84716070


Operational conditions



Operating relative humidity (H-H)



5 - 95 %


Operating temperature (T-T)



0 - 50 �C


Storage temperature (T-T)



-40 - 70 �C


Other features



Dimensions (WxDxH)



60 x 180 x 62 mm


Safety



IEC Class 1, UL1950, CSA C22.2 No. 950, EN60950/IEC950


Package dimensions



Gross Weight (Package, kg)



15.7 kg


Packaging data



Cables included



USB


Performance



Certification



FCC Part 15 B, ICES-003 B, EMC, SMA, VCCI/MITI/Dentori


Product colour



Black


Ports & interfaces



Standard interfaces



RS-232, USB, Keyboard wedge


Power



Input voltage



5 V


Power consumption



100 mA


Product dimensions



Net Weight (Product, kg)



15 kg


Scanning



Decoding standards



UPC/EAN, UPC/EAN, UCC/EAN 128, Code 39, Code 39 Full ASCII, Code 39 TriOptic, Code 128, Code 128 Full ASCII, Codabar, Interleaved 2 of 5, Discrete 2 of 5, Code 93, MSI, Code 11, IATA, GS1 DataBar (RSS), Chinese 2 of 5


Light levels (direct sunlight)



5 - 95 lx


Pitch reading angle



-65 - 65 �


Read rate (max)



100 reads/s


Scanner type



1D


Tilt angle range



-30 - 30 �


Wavelength



650 nm


Working distance



26 cm


Yaw reading angle



-60 - 60 �


Technical details



Harmonized System (HS) code



84716070


Vendor information



Brand Name


Zebra


Warranty



3 Year(s)
