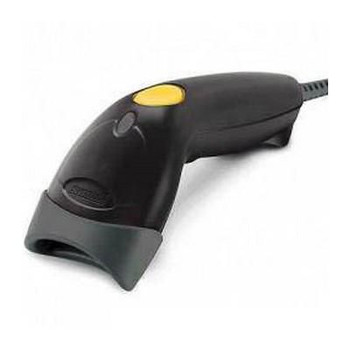

Zebra Motorola Ls1203. Type: Handheld Bar Code Reader Sensor Type: Laser Linear LS1203-7AZU0100ER

Motorola LS1203. Type: Handheld bar code reader, Sensor type: Laser, Linear (1D) barcodes supported: Codabar, Code 11, Code 128, Code 39, Code 93, GS1-128 (UCC/EAN-128). Connectivity technology: Wired, Standard interfaces: USB. Product colour: Black. Power source type: DC, Input voltage: 5 V, Power consumption: 100 mA. Weight: 122 g, Width: 60.9 mm, Depth: 180.3 mm This bi-directional LS1203 hand-held scanner handles all 1D bar codes and is ideal for small retailers. It delivers the functionality, features and reliability needed to improve operational efficiencies from the checkout line to the storeroom. It minimises manual key input - ensuring accuracy in all customer transactions - and it automates paper-based inventory processes. The device easily integrates multiple interfaces to help ensure connectivity to a host and PC system.
Interfaces/Ports

Host InterfaceUSB

Power Description

Input Voltage5 V DC
Power SourceDC

Technical Information

Barcode Symbology SupportedUPC/EAN
UPC/EAN With Supplementals
UCC/EAN 128
Code 39
Code 39 Full ASCII
Code 39 TriOptic
Code 128
Code 128 Full ASCII
Codabar
Interleaved 2 Of 5
Discrete 2 Of 5
Code 93
MSI
Code 11
IATA
GS1 DataBar (Formerly RSS) Variants
Chinese 2 of 5

Connectivity TechnologyCable
Scanning Distance203 mm
Light SourceLaser
Maximum Scan Resolution0.13 mm
Scanner RangeExtended Range
Drop SpecificationWithstands multiple 5 ft./1.524m drops to concrete
Depth of Field0.25" - 5"@5mil - Code 39
0" - 7.75"@7.5mil - Code 39
0" - 8.5"@10mil - Code 39
0" - 8.5"@13mil - 100% UPC
0" - 10.25"@26mil - 200% UPC

Scan PatternBi-directional
Scan Rate100 scan/s
Stand IncludedYes
Cable Type IncludedUSB
Scanning Capability1D
Reading Angle (Skew)60??
Reading Angle (Pitch)65??
Reading Angle (Roll)30??
Maximum Ambient Light86111 lux
Minimum Print Contrast30%
Minimum Element Resolution (Code 39)0.13 mm
Maximum Element Resolution (Code 39)0.66 mm


Miscellaneous

Application/UsageRetail
Industrial
Package ContentsSymbol LS1203 General Purpose Handheld Barcode Scanner
USB Cable
Stand

Platform SupportedPC
Environmentally FriendlyYes
Ingress Protection (IP) RatingIP41
Environmental ComplianceRestriction of Hazardous Substances (RoHS)

Physical Characteristics

Weight (Approximate)121.9 g
Form FactorHandheld
Length180.3 mm
Height61 mm
Width61 mm
Product ColorTwilight Black
Color FamilyBlack

General Information

Product TypeBarcode Scanner Kit
Manufacturer Part NumberLS1203-7AZU0100ER
zebra/gb/en
ManufacturerZebra Technologies Corporation
Product ModelLS1203
Product NameSymbol LS1203 General Purpose Handheld Barcode Scanner
Product LineSymbol
Brand NameZebra
