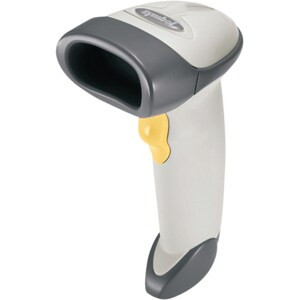

Zebra Motorola Ls2208. Sensor Type: Laser Read Rate Max: 100 Reads/S Wavelength: LS2208-7AZU0100ZR

Motorola LS2208. Sensor type: Laser, Read rate (max): 100 reads/s, Wavelength: 650 nm. Standard interfaces: USB. Product colour: Black. Input voltage: 5 V, Power consumption: 130 mA. Weight: 146 g The affordable LS2208 handheld bar code scanner provides fast, reliable scanning in an ergonomic, lightweight form. The wide working range from near contact to 17 inches makes this device ideal for retail, hospital, education or government settings. Multiple on-board interfaces ensure integration with a variety of host systems.
Interfaces/Ports

Host InterfaceUSB

Power Description

Input Voltage5 V DC
Power SourceUSB

Miscellaneous

Application/UsageEducation
Retail
Package ContentsSymbol LS2208 Handheld Barcode Scanner
USB Cable

Platform SupportedPC
Environmentally FriendlyYes
Ingress Protection (IP) RatingIP30
Environmental ComplianceRestriction of Hazardous Substances (RoHS)

Technical Information

Barcode Symbology SupportedFull ASCII
Discrete 2 of 5
Codabar
Code 128
Code 11
UPC
Interleaved 2 of 5
Code 128 Full ASCII
Code 39 Trioptic

Connectivity TechnologyCable
Scanning Distance431.80 mm
Light SourceLaser
Scanner RangeStandard Range
Drop SpecificationDesigned to withstand multiple drops at 5.0 ft./1.5 m to concrete
Scan PatternSingle Line
Scan Rate100 scan/s
Stand IncludedNo
Cable Type IncludedUSB
Scanning Capability1D
Reading Angle (Skew)60??
Reading Angle (Pitch)65??
Reading Angle (Roll)30??
Maximum Ambient Light86111 lux
Minimum Print Contrast20%
Minimum Element Resolution (Code 39)0.08 mm
Maximum Element Resolution (Code 39)1.02 mm


General Information

Product TypeBarcode Scanner
Manufacturer Part NumberLS2208-7AZU0100ZR
Manufacturer Website Addresshttp://www.zebra.com/gb/en
ManufacturerZebra Technologies Corporation
Product ModelLS2208
Product NameSymbol LS2208 Handheld Barcode Scanner
Product LineSymbol
Brand NameZebra

Physical Characteristics

Weight (Approximate)146 g
Form FactorHandheld
Height152.4 mm
Width63.5 mm
Depth84.8 mm
Product ColorTwilight Black
Color FamilyBlack
RuggedYes
