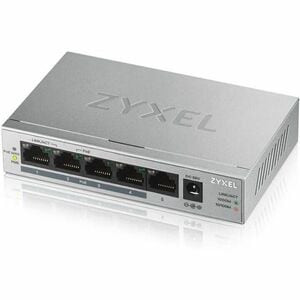

Zyxel Gs1005Hp Unmanaged Gigabit Ethernet 10/100/1000 Full Duplex Power Over Eth GS1005HP-GB0101F

Zyxel GS1005HP, Unmanaged, Gigabit Ethernet (10/100/1000), Full duplex, Power over Ethernet (PoE) The Zyxel GS1005HP/GS1008HP GbE Unmanaged PoE Switch is equipped with 5 or 8 Gigabit Ethernet ports, 4 of which are PoE ports that can deliver up to 60 w of total PoE budget. The GS1005HP/1008HP can easily connect with PoE ready devices to your network with plug-and-play design and provides power-saving benefits without compromising performance. The GS1005HP/1008HP fills a long-standing hole in the market for unmanaged PoE switches that feature the 802.3at standard, have a high power budget and are affordable for SOHOs and small businesses. Benefits | Smart PoE+ 802.3af/802.3at support The Zyxel GS1005HP/GS1008HP GbE Unmanaged PoE Switch supports the IEEE 802.3at standard, providing a maximum of 30 watts per port (with a max total power budget of 60 watts) to supply power to PoE network devices such as wireless APs, IP cameras, and VoIP phones. Easy PoE budget management The Zyxel GS1005HP/GS1008HP boasts a total power budget of 60 w and features a handy LED indicator that shows orange when the 50 w threshold is reached. Gigabit data transmission Featuring Gigabit performance, it provides 10 times faster than Fast Ethernet. Delivers up to 2,000 Mbps of dedicated bandwidth per port. Fanless, noiseless design Fanless design ensures noiseless operation and greater reliability over time with no moving parts that may fail. Advanced energy-savings at work IEEE 802.3az Energy Efficient Ethernet (EEE) function automatically detects network traffic and adjusts power consumption dynamically.
Management & Protocols

ManageableNo

Interfaces/Ports

Network (RJ-45)Yes
Total Number of Network Ports5
Port/Expansion Slot Details5 x Gigabit Ethernet Network

Media & Performance

Network Technology1000Base-T
Ethernet TechnologyGigabit Ethernet
Media Type SupportedTwisted Pair

Network & Communication

Layer Supported2
Networking StandardsIEEE 802.3af
IEEE 802.3at

Power Description

Power SourcePower Adapter
PoE (RJ-45) PortYes
PoE Budget60 W

General Information

Product TypeEthernet Switch
Manufacturer Part NumberGS1005HP-GB0101F
Manufacturer Website Addresshttp://www.zyxel.co.uk
ManufacturerZYXEL Communications Corp.
Product ModelGS1005HP
Product Name5-Port GbE Unmanaged PoE Switch
Brand NameZYXEL


Technical Information

FeaturesEnergy Efficient
Fanless
Plug and Play

Physical Characteristics

Weight (Approximate)235 g
Form FactorDesktop
Height26 mm
Width121 mm
Depth75 mm
Product ColorSilver
Color FamilySilver

Miscellaneous

Application/UsageSmall Office Home Office (SOHO)
Wireless Access Point
IP Camera
VoIP Phone
Small Business
Network
Country of OriginChina
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
