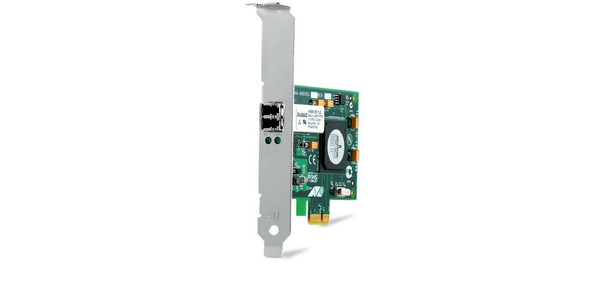

Allied Telesis AT-2914SP-901 2914Sp Internal Fiber 1000 AT-2914SP-901

The Allied Telesis 2914SP is a gigabit PCIe x1 network adapter with an open SFP port. This port supports both Fast Ethernet and Gigabit SFP�s. This adapter supports Wake-on-LAN without the use of an external power supply.

Design



Certification



UL, FCC/EN55022 Class A, TUV, EN55024, CE, C-TICK, VCCI


Internal



Yes


LED indicators



Y, Yes


Logistics data



Harmonized System (HS) code



85176990


Network



Auto-negotiation



Yes


Ethernet LAN data rates



100, 1000


Jumbo frames



9600


Jumbo frames support



Yes


Load balancing system



Yes


Maximum data transfer rate



1000 Mbit/s


Networking standards



IEEE 802.1Q, IEEE 802.1p, IEEE 802.2, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3z


Quality of Service (QoS) support



Yes


Wake-on-LAN ready



Yes


Operational conditions



Operating relative humidity (H-H)



5 - 90 %


Operating temperature (T-T)



0 - 50 �C


Storage temperature (T-T)



-25 - 70 �C


Other features



Flow control support



Yes


Priority queuing supported



Yes


Package dimensions



Gross Weight (Package, kg)



0.26 kg


Packaging data



Low-profile bracket



Yes


Quantity



1


Ports & interfaces



Connectivity technology



Wired


Fiber optic connector



SFP


Fiber ports quantity



1


Host interface



PCI Express


Interface



Fiber


Power



Output voltage



3.3 V


Product dimensions



Net Weight (Product, kg)



0.2 kg


Product Height



6.9 cm


Product Width



8.8 cm


Sustainability



Sustainability certificates



RoHS


System requirements



Linux operating systems supported



Yes


Server operating systems supported



Windows Server 2008, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2


Windows operating systems supported



Windows 10, Windows 7, Windows 8, Windows Vista


Vendor information



Brand Name


Allied Telesis


Warranty



1 Year(s)
