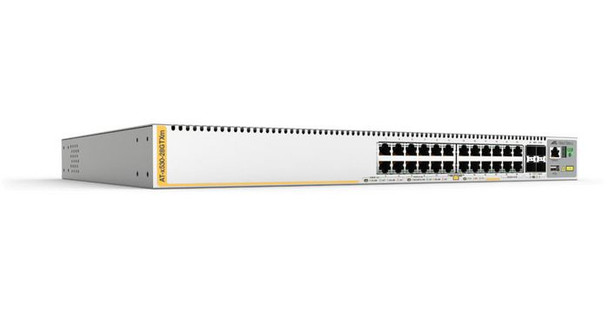

Allied Telesis AT-X530-28GTXM-50 Managed L3 Gigabit Ethernet AT-X530-28GTXM-50

The Allied Telesis x530 Series of stackable Multi-Gigabit Layer 3 switches feature high capacity, resiliency and easy management, making them the ideal choice for demanding distribution and high-speed connectivity applications.

Allied Telesis x530 Series switches are a high-performing and feature-rich choice for today�s networks. They offer a versatile solution for enterprise applications. With 20 x 10M/100M/1Gigabit ports, 4 x 100M/1/2.5/5 Gigabit ports, and 10 Gigabit uplinks, plus the power of Allied Telesis Virtual Chassis Stacking (VCStack�), the x530 Series can connect anything from a small workgroup to a large business.

Powerful network management
Allied Telesis Autonomous Management Framework� (AMF) automates many everyday tasks including configuration management, easing the workload of modern networks. The entire network can be managed as a single virtual device with powerful centralized features. Growing the network can be accomplished with plug-and-play simplicity, and network node recovery is fully zero-touch.

AMF secure mode increases network security with management traffic encryption, authorization, and monitoring. AMF Guestnode allows third party devices, such as IP phones and security cameras, to be part of an AMF network.

Network resiliency
Today�s converging online services means there is increasing demand for highly-available networks with minimal downtime. VCStack�, in conjunction with link aggregation, provides a network with no single point of failure and application resiliency.

x530 Series switches can form a VCStack of up to four units for enhanced resiliency and simplified device management. Long Distance Stacking (VCStack LD), which enables stacks to be created over long distance fiber links, makes the x530 Series the perfect choice for distributed environments too.

Allied Telesis Ethernet Protection Switched Ring (EPSRing�), and the standards-based G.8032 Ethernet Ring Protection, ensure that distributed network segments have high-speed, resilient access to online resources and applications.

Reliable
The x530 Series was designed with reliability in mind, and guarantees continual delivery of essential services. With dual built-in power supplies and near-hitless online stack reconfiguration, maintenance may be performed without affecting network uptime.

Secure
A secure network environment is guaranteed. The x530 Series offers powerful control over network traffic types, secure management options, loop guard to protect against cabling mistakes, and tri-authentication for comprehensive access control.

Future proof
The x530 Series ensures a future-proof network, with superior flexibility and the ability to stack multiple units. All x530 Series models feature 10 Gigabit uplink ports and a comprehensive IPv6 feature set, to ensure they are ready for future network traffic demands.

High-speed wireless
The spread of high-speed wireless (802.11ac or �Wave2�) can be problematic for network infrastructure. Unless infrastructure is upgraded to cope with increased speeds, a bottleneck occurs which negatively impacts the effectiveness of the wireless network. However, increasing speeds from 1 Gigabit has traditionally meant moving to 10 Gigabit, which requires expensive new cabling. The x530 series solves this issue, because it provides support for both 2.5 and 5 Gigabit. At these speeds, the wireless network runs at full capacity, and there is no need to upgrade existing Cat5e and Cat6/6A cables.

Environmentally friendly
The x530 Series support Energy Efficient Ethernet (EEE), automatically reducing the power consumed by the switch whenever there is no traffic on a port. This sophisticated feature significantly lowers operating costs by reducing the power requirements of the switch and any associated cooling equipment.

Data transmission



Forwarding rate



119 Mpps


Jumbo frames



10000


Jumbo frames support



Yes


Latency (1 Gbps)



4.05 �s


Latency (10 Gbps)



1.63 �s


Latency (10-100 Mbps)



7.38 �s


MAC address table



16000 entries


Number of queues



8


Packet buffer memory



1.5 MB


Switching capacity



160 Gbit/s


Design



Certification



UL, cUL, UL60950-1, CAN/CSA-C22.2 No. 60950-1-03, EN60950-1, EN60825-1, AS/NZS 60950.1


Electromagnetic compatibility



EN55032 class A, FCC class A, VCCI class A, ICES-003 class A


Form factor



1U


LED indicators



Y, Yes


Product colour



Grey


Rack mounting



Yes


Stackable



Yes


Management features



Configuring Location Settings (CLI)



Yes


Quality of Service (QoS) support



Yes


Switch layer



L3


Switch type



Managed


Traffic classification



Yes


Web-based management



Yes


Multicast features



Multicast support



Yes


Network



10G support



Yes


Auto-negotiation



Yes


Cable types supported



Cat5e, Cat6, Cat6a


Copper ethernet cabling technology



10GBASE-T


Flow control support



Yes


Link aggregation



Yes


Networking standards



IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z


Policy-based routing



Yes


Port mirroring



Yes


Spanning tree protocol



Yes


Virtual LAN features



VLAN Identifier ( VLAN ID)


VLAN support



Yes


Operational conditions



Operating altitude



0 - 3048 m


Operating relative humidity (H-H)



5 - 90 %


Operating temperature (T-T)



0 - 50 �C


Storage relative humidity (H-H)



5 - 95 %


Storage temperature (T-T)



-25 - 70 �C


Optical fiber



Fiber ethernet cabling technology



100BASE-X, 1000Base-X


Wavelength



850 nm


Package dimensions



Depth (package,cm)



53.4 cm


Gross Weight (Package, kg)



6.24 kg


Height (package,cm)



12.8 cm


Width (package,cm)



56.3 cm


Performance



Flash memory



256 MB


Internal memory



1000 MB


Memory type



DDR3-SDRAM


Noise level



42 dB


Physical stacking (units)



4


Ports & interfaces



Basic switching RJ-45 Ethernet ports quantity



24


Basic switching RJ-45 Ethernet ports type



Gigabit Ethernet (10/100/1000)


Fast Ethernet (copper) ports quantity



4


Gigabit Ethernet (copper) ports quantity



20


Power connector



AC-in jack


SFP+ module slots quantity



4


USB 2.0 ports quantity



1


Power



Power consumption (max)



900 Watt


Power over Ethernet (PoE)



Power over Ethernet (PoE)



No


Product dimensions



Net Weight (Product, kg)



4.8 kg


Product Depth



32.3 cm


Product Height



4.4 cm


Product Width



44.1 cm


Security



Access Control List (ACL)



Yes


Authentication



MAC-based authentication, Port-based authentication, Web-based authentication


Authentication type



IEEE 802.1x


BPDU filtering/protection



Yes


DHCP features



DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 relay


IGMP snooping



Yes


Loop protection



Yes


MAC address filtering



Yes


Password protection



Yes


Security algorithms



802.1x RADIUS, SSH, SSH-2, SSL/TLS


Vendor information



Brand Name


Allied Telesis


Warranty



1 Year(s)
