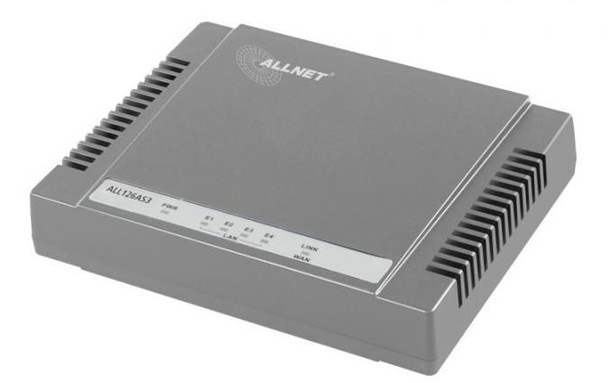

ALLNET ALL126AS3 DSL-Modem VDSL2 100MBit Slave ALL126AS3

ALLNET ALL126AS3 / VDSL 100 Mbit Slave Modem "ADSL-Backward"
VDSL2 Master Modem for dedicated lines via 2-wire connections up to a
lenght of 2500 Meters and a bandwidth of 100 Mbit/s (depends on length). Supports DPBO (Downstream Power Back Off).

The ALLNET ALL126AS3 is a VDSL2 Router that leverages the extraordinary bandwidth promise of VDSL2 (max. 100Mbps Symmetric) technology, the next step in the delivery of new high-speed Internet applications to end-users in their homes or offices.

Quick, easy and economical to install and maintain, the ALL126AM2 works with the ALL126AS3 over existing copper wire infrastructure. ALL126AM2 is a CO (Central Office) device while ALL126AS3 is a CPE (Customer Premise Equipment) device.

The ALLNET ALL126AS3 will allow operators worldwide to compete with cable and satellite operators by offering services such as HDTV, VOD, videoconferencing, high speed Internet access and advanced voice services including VoIP, over a standard copper telephone cable. ALLNET ALL126Ax series is seen by many operators as an ideal accompaniment to a FTTP rollout, where for instance fiber is supplied direct to an apartment block and from there copper cable is used to supply residents with high-speed VDSL2.

Features



Certification



CE


Flow control support



Yes


Indication



LED indicators



Yes


Modem



Chipset



Lantiq VRX


Network



Networking standards



IEEE 802.3, IEEE 802.3u, IEEE 802.3z


Operational conditions



Operating relative humidity (H-H)



10 - 90 %


Operating temperature (T-T)



0 - 50 �C


Storage temperature (T-T)



-20 - 70 �C


Packaging content



Cables included



LAN (RJ-45), Phone (RJ-11)


Ports & interfaces



Ethernet LAN (RJ-45) ports



4


Modem (RJ-11) ports



2


RS-232 ports



1


Power



Power consumption (typical)



6.7 Watt


Product dimensions



Net Weight (Product, kg)



0.7 kg


Vendor information



Brand Name


ALLNET


Warranty



1 Year(s)


Weight & dimensions



Dimensions (WxDxH)



183 x 145 x 36 mm
