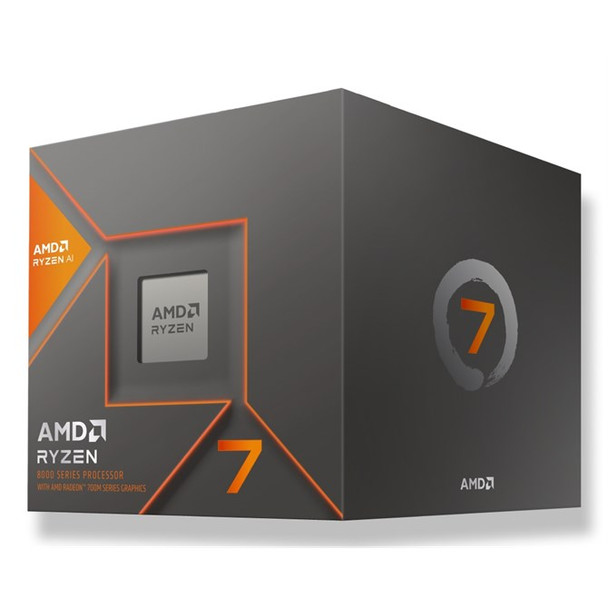

AMD Ryzen 7 8700G Processor 4.2 GHz 16 MB L3 Box 100-100001236SBX

AMD Ryzen™ 7 8700G with AMD Ryzen AI is the ultimate all-in-one desktop processor with AMD Radeon™ 780M Graphics capabilities

Specs




Processor


Processor manufacturer

The manufacturer that produced the processor.

AMD


Processor generation

AMD Ryzen 8000 Series


Processor model

The model number for the processor in a computer.

8700G


Processor base frequency

4.2 GHz


Processor family

A family of processors is a group of processors produced by one company over a short period of time e.g. Intel Pentium processors.

AMD Ryzen™ 7


Processor cores

The number of central processing units ('cores') in a processor. Some processors have 1 core, others have 2 (e.g. Intel Core Duo) or more (e.g. the Intel Xeon E7-2850 has 10 cores).

8


Processor socket

Mechanical component(s) that provides mechanical and electrical connections between a microprocessor and a printed circuit board (PCB). This allows the processor to be replaced without soldering.

Socket AM5


Processor lithography

The process which is performed by the processor e.g. CPU (Central Processing Unit).

4 nm


Processor threads



Processor operating modes

Operating modes for the processors that place restrictions on the type and scope of operations for certain processes run by the CPU. This design allows the operating system to run with more privileges than application software.

64-bit


Processor boost frequency

The turbo boost is an automatic, managed accelleration of the processor when one of the cores is overloaded.

5.1 GHz


Processor cache
MB


Processor cache type

L3


Thermal Design Power (TDP)

65 W


Configurable TDP-up

65 W


Package type

The type of product package e.g. box.

Box


Cooler included

The device comes with an integrated cooler.




Configurable TDP-down

45 W


Neural processor unit (NPU)


Neural processor unit (NPU)

AMD Ryzen AI


NPU performance up to
TOPs


Memory


Maximum internal memory supported by processor

256 GB



Memory


Memory types supported by processor

DDR5-SDRAM


Memory clock speeds supported by processor

3600, 5200 MHz


Memory channels

Dual-channel


Graphics


On-board graphics card

Graphics hardware which is built into the motherboard or CPU, as opposed to a separate graphics adapter (video card). On-board graphics uses CPU and RAM for graphics processing.




Discrete graphics card




On-board graphics card model

"Graphic adapter" is the hardware that produces images on a display. "On-board" means that the graphics adapter is intergrated inside the motherboard.

AMD Radeon 780M


On-board graphics card outputs supported

DisplayPort 2.1, HDMI 2.1


On-board graphics card base frequency

2900 MHz


On-board graphics card DirectX version
.0


On-board graphics card maximum resolution (DisplayPort)

7680 x 4320 pixels


On-board graphics card refresh rate at maximum resolution (DisplayPort)

60 Hz


Discrete graphics card model

A graphics adapter (often known as a video card) generates images for a display. A discrete graphics adapter plugs into the motherboard, and usually produces much better graphics than an integrated graphics adapter. There are various models of discrete graphics adapters.

Not available


Features


Market segment

Desktop


Maximum number of PCI Express lanes



PCI Express slots version

4.0


Supported instruction sets

AES, AVX, AVX 2.0, AVX-512, MMX, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSSE3


Compatible operating systems

List of desktop operating systems tested as compatible with this product.

Windows 10/11 x64, RHEL x86 64-bit, Ubuntu x86 64-bit


I/O configuration


USB ports quantity

5
