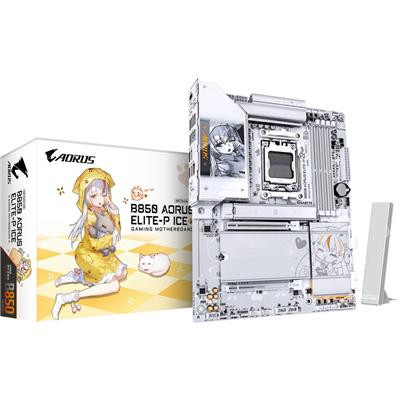

Aorus B850 AORUS ELITE-P ICE Socket Am5/B850/Ddr5/S-Ata 6/Atx B850 AORUS ELITE-P ICE

Product Group:

Motherboards



Manufacturer:

GIGABYTE



SKU:
0191


Product Specifications



Product Name:

Aorus B850 AORUS ELITE-P ICE (Socket AM5/B850/DDR5/S-ATA 6/ATX)



Web Address:

www.gigabyte



Model Number:

B850 AORUS ELITE-P ICE



EAN:

4719331882488



Package Type:

Retail



Warranty:

3 Years



BIOS:


1 x 512 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0




Chipset:

AMD B850



CPU Interface:

Socket AM5



CPU Support:

gigabyte /uk/Motherboard/B850-AORUS-ELITE-P-ICE/support#Support-Cpu-Support



RAM Technology:

DDR5 (Dual Channel)



RAM Slots:

4 x 288-pin



RAM Speeds:

Up to DDR5 8200 (O.C.)



Max. Memory Support:

256GB



PCI Express 4.0 x16:

1



PCI Express 5.0 x16:

1



S-ATA 6Gb/s Port(s):

2



RAID:

Raid 0/1/5/10



M.2 Socket(s):


1 x PCIe Gen 5.0 x4
2 x PCIe Gen 4.0 x4




LAN Speed:

Realtek 5GbE LAN chip (5 Gbps/2.5 Gbps/1 Gbps/100 Mbps)



Wireless NIC:

Wi-Fi 7



Wireless Technology:

802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands



Bluetooth:

v5.4



On-Board Audio:

Realtek ALC1220 CODEC



On-Board Video:

Processor with integrated graphics is required



Back USB 2.0 Port(s):

4



Back USB 3.2 Port(s) Type-A Gen 1:

4



Back USB 3.2 Port(s) Type-A Gen 2:

2



Back USB 3.2 Port(s) Type-C Gen 2:

2



Back HDMI Port(s):

1



Back LAN Port(s):

1



Back Audio Jack(s):

2



Back S/PDIF Output Port(s):

2



Back Other Port(s):

2 x Antenna Connectors (2T2R)



Back Button(s):


1 x Reset
1 x Power
1 x Clear CMOS
1 x Q-Flash Plus




24-pin ATX Power:

1



8-pin ATX Power:

2



USB 2.0 Header(s):

2



USB 3.2 Header(s) Gen 1:

1



USB 3.2 Header(s) Gen 2x2:

1



Front Panel Audio Connector:

1



TPM Header(s):

1



Internal Other Port(s):


3 x Addressable RGB Gen2 LED strip headers
1 x RGB LED strip header




Form Factor:

Standard ATX



Product Width:

244mm



Product Length:

305mm



Package Width:

27cm



Package Length:

33cm



Package Height:

8cm



Net Weight:

1.63Kg



Gross Weight:

2.19Kg



Special Features:


When Technology Meets Anime with Next-level Performance.
X3D Turbo Mode: Unleash new era gaming performance.
DDR5 OC up to 8200MT/s.
AMD Socket AM5: Supports AMD Ryzen 9000 / 8000 / 7000 Series Processors.
Digital twin 16+2+2 phases VRM solution.
Dual Channel DDR5: 4 x DIMMs with AMD EXPO Memory Module Support.
WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation.
EZ-Latch Plus: PCIe and M.2 slots with Quick Release and Screwless Design.
M.2 EZ-Latch Click 2: M.2 heatsinks with screwless design.
Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW.
Ultra-Fast Storage: 4 x M.2 slots, including PCIe 5.0 x4.
Efficient Thermal: VRM Thermal Armor Advanced & M.2 Thermal Guard Ext.
Fast Networking: 5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna.
Extended Connectivity: HDMI.
PCIe UD Slot: PCIe 5.0 x16 slots with 10X strength for graphics card and Better Heat dissipation effect.




Package Contents:


Motherboard
Manual
1 x Antenna
2 x SATA cables
1 x G Connector
Three packs of M.2 thick/thin rubber pads
One ARI Plush Toy
