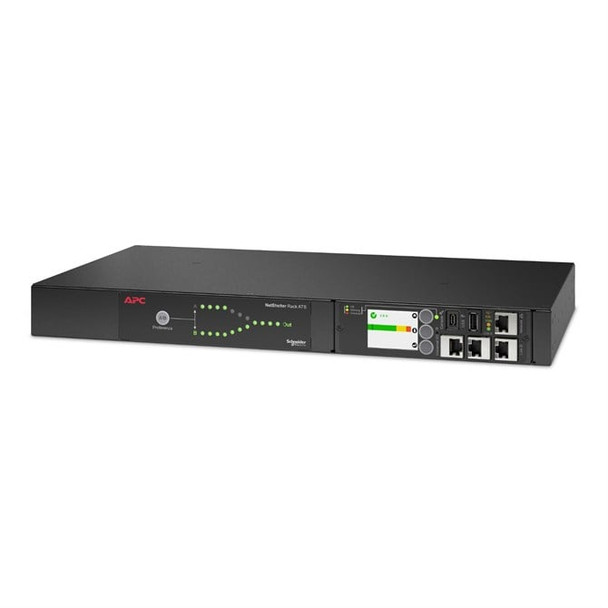

APC AP4421A Automatic Transfer Switch ATS AP4421A

APC NetShelter Rack Automatic Transfer Switch (ATS) AP4421A is the Fifth-Generation range of high availability switches offering greater control of your IT equipment from Cloud to Edge. With Industry leading reliability, agility, and manageability the APC NetShelter Rack ATS provides redundant power to single-corded equipment loads in the IT rack. AP4421A is single phase 1U Rack ATS with 10A rated current, 230V rated voltage and 2000VA load capacity. It comes with 2 IEC C14 inlet and 12 IEC C13 outlet sockets. This has been upgraded with APC NMC3 and various technical advancements for network port sharing, environmental monitoring and enhanced security. It has 2-years of standard warranty and 5-years of extended warranty for peace of mind and use for years to come. Users can access and configure Rack ATS through secure Web UI, SNMP, CLI and are fully compatible with EcoStruxure IT.

Specs




Power


Input operation voltage (min)

The minumum voltage needed by the device during operation.
7 V


Input operation voltage (max)

The maximum input voltage supported by the device.

253 V


AC input frequency

50 - 60 Hz


Input current
A


Output current
A


Design


Form factor

The shape or design of the product.

Rackmount


Rack capacity

The spase that device fill in rack.

1U


Product colour

The colour e.g. red, blue, green, black, white.

Black


Display

The description of display that can includes display type, resolution, size etc.

LCD


Ports & interfaces


AC outlets quantity

The number of sockets in the device where AC electrical power can be connected.
AC outlet(s)


AC outlet types

The type of outlet for AC electricity.

C13 coupler



Operational conditions


Operating temperature (T-T)

The minimum and maximum temperatures at which the product can be safely operated.

-5 - 45 ?C


Storage temperature (T-T)

The minimum and maximum temperatures at which the product can be safely stored.

-25 - 65 ?C


Operating relative humidity (H-H)

5 - 95%


Technical details


Total carbon footprint (kg of CO2e)

The total mean carbon footprint value generated across various lifecycle stages (manufacturing, transportation / logistics, use and end of life) per unit (for one single product) i.e., measured in kilograms CO2e.

450.72


Weight & dimensions


Width

The measurement or extent of something from side to side.

432 mm


Depth

The distance from the front to the back of something.

236 mm


Height

The measurement of the product from head to foot or from base to top.

44 mm


Weight

Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.

3.93 kg
