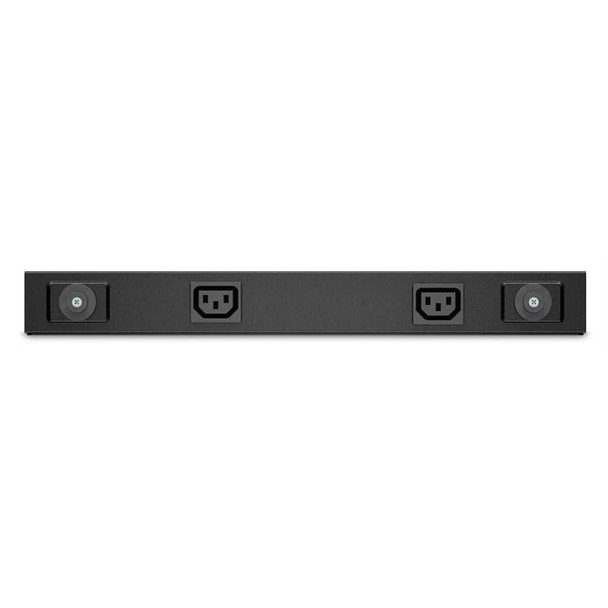

APC AP6020A power distribution unit PDU 13 AC outlets 0U/1U Black AP6020A

Reliable rack power distribution designed to increase manageability and efficiency in the data center The output and input connections are (13) C13 Real-time remote monitoring of connected loads User-defined alarms warn IT and data center managers of potential circuit overloads to prevent accidental power loss to critical equipment.

Specs




Design


PDU types

A power distribution unit (PDU) is a device fitted with multiple outputs designed to distribute electric power, especially to racks of computers and networking equipment located within the data center. PDUs vary from simple and inexpensive rack-mounted "power strips" to larger floor-mounted PDUs with multiple functions including power filtering to improve power quality, intelligent load balancing, and remote monitoring and control by LAN or SNMP.

Basic


Type

Characteristics of the device.

Single-phase


Rack capacity

The spase that device fill in rack.

0U/1U


Mounting

What size the mounting head of the product is, to couple it with a camera.

Horizontal/Vertical


Product colour

The colour e.g. red, blue, green, black, white.

Black


Ports & interfaces


AC outlets quantity

The number of sockets in the device where AC electrical power can be connected.
AC outlet(s)


Power plug

A power plug is a 2 or 3 pinned device that is placed into an electrical socket in order to make an electrical connection.

C20 coupler


AC outlet types

The type of outlet for AC electricity.

C13 coupler


Output connections

IEC 320 C13


Power


Nominal input voltage

The voltage which the manufacturer recommends that the device needs to operate normally.
0-240 V


AC input frequency

50 - 60 Hz


Maximum current

The greatest possible amount of current, which is a quantity representing the rate of flow of electric charge.
A


Load capacity

3680 VA


Maximum input current per phase
A


Maximum total current draw per phase
A


Maximum power

The maximum power that can be put into or produced by the device.

3680 W


Certificates


Compliance certificates

RoHS



Certificates


Certification

cUL Listed, CE, EAC, IRAM, PSE, UL Listed, VDE, REACH


Operational conditions


Operating temperature (T-T)

The minimum and maximum temperatures at which the product can be safely operated.

0 - 50 ?C


Storage temperature (T-T)

The minimum and maximum temperatures at which the product can be safely stored.

-15 - 60 ?C


Operating relative humidity (H-H)

5 - 95%


Storage relative humidity (H-H)

5 - 95%


Operating altitude

0 - 3048 m


Weight & dimensions


Width

The measurement or extent of something from side to side.

44 mm


Depth

The distance from the front to the back of something.

93 mm


Height

The measurement of the product from head to foot or from base to top.

388 mm


Weight

Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.

1.5 kg


Packaging data


Package weight

Weight of the packaged product.

2.02 kg


Package width

The distance from one side of the packaging to the other.

210 mm


Package depth

The distance from the front to the back of the packaging.

76 mm


Package height

The distance from the top to the bottom of the packaging.

436 mm


Logistics data


Total carbon footprint (kg of CO2e)

The total mean carbon footprint value generated across various lifecycle stages (manufacturing, transportation / logistics, use and end of life) per unit (for one single product) i.e., measured in kilograms CO2e.

38.04
