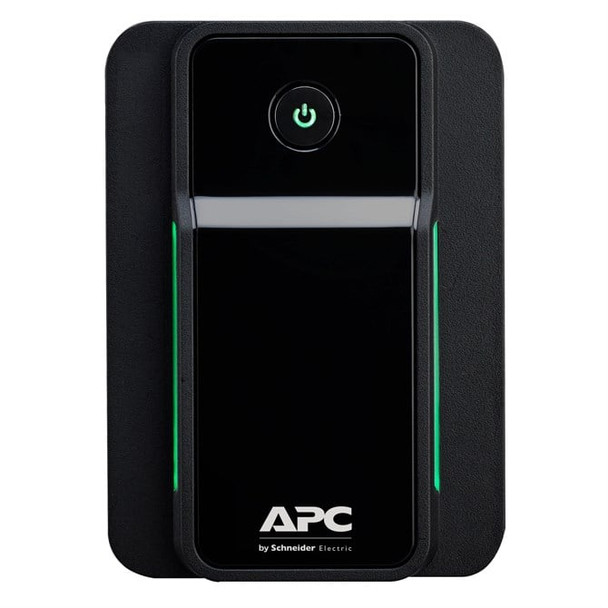

APC Back-UPS uninterruptible power supply UPS Line-Interactive 0.5 kVA 300 W 3 A BX500MI

500VA / 300W line-interactive UPS Controls LED brightness , Quick Mute and Generator Setting by pressing one single power button. Our New BX Series offers Dataline protection for data transmission through Network with 1 gigabit speed. Ideal for Home and Office Users USB communication cable ready to use

Specs




Features


UPS topology

The two main UPS topologies are Double-Conversion True Online and Standby / Eco. Many quality-based considerations are involved when choosing the the optimal UPS for the job, like how they are coping with voltage disturbances.

Line-Interactive


Output power capacity

The maximum power that the device can produce.

0.5 kVA


Output power

The power that the device can produce.

300 W


Waveform

Sine


Input operation voltage (min)

The minumum voltage needed by the device during operation.
0 V


Input operation voltage (max)

The maximum input voltage supported by the device.

300 V


Input frequency

The frequency (Hz) which is required to power the product.

50/60 Hz


Output frequency

50/60 Hz


Automatic Voltage Regulation (AVR)




Surge energy rating

A surge protector is an appliance designed to protect electrical devices from voltage spikes. A surge protector attempts to limit the voltage supplied to an electric device by either blocking or by shorting to ground any unwanted voltages above a safe threshold. The surge energy rating is a measure of how much energy a surge protector can theoretically absorb in a single event, without failure.

273 J


Efficiency

96.1%


Input power factor

0.63


Noise level

The amplitude level of the undesired background noise, usually measured in decibels (db).

40 dB


Surge protection




Audible alarm(s)

Alarms that make a sound when they are activated (set off).




Audible alarm modes

Alarm when on battery, Low battery alarm


Ports & interfaces


AC outlet types

The type of outlet for AC electricity.

C13 coupler


Power plug

A power plug is a 2 or 3 pinned device that is placed into an electrical socket in order to make an electrical connection.

C14 coupler


AC outlets quantity

The number of sockets in the device where AC electrical power can be connected.

3 AC outlet(s)


Number of output IEC jumpers

1


Ethernet LAN (RJ-45) ports

Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.

2


Cabling technology

Type of cable technology performance.
/100/1000Base-T(X)


Battery


Battery technology

The type of battery in the device, e.g. nickel-cadmium (NiCd).

Sealed Lead Acid (VRLA)


Battery voltage

The voltage (V) of the battery.
V


Battery life (max)

5 year(s)


Battery recharge time

Approximate time required to recharge the battery from completely empty to completely full

8 h



Battery


Automatic battery test




Design


Form factor

The shape or design of the product.

Tower


Cable length

How long the cable is.

1.5 m


Product colour

The colour e.g. red, blue, green, black, white.

Black


LED indicators

Battery replacement


International Protection (IP) code

The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes".

IP20


Operational conditions


Operating temperature (T-T)

The minimum and maximum temperatures at which the product can be safely operated.

0 - 40 ?C


Storage temperature (T-T)

The minimum and maximum temperatures at which the product can be safely stored.

-15 - 40 ?C


Operating relative humidity (H-H)

0 - 95%


Storage relative humidity (H-H)

0 - 95%


Operating altitude

0 - 3000 m


Non-operating altitude

0 - 3000 m


Certificates


Compliance certificates

RoHS


Certification

CE, EAC, EN/IEC 62040-1


Weight & dimensions


Width

The measurement or extent of something from side to side.

98 mm


Depth

The distance from the front to the back of something.

310 mm


Height

The measurement of the product from head to foot or from base to top.
8 mm


Weight

Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.

4.2 kg


Packaging data


Package width

The distance from one side of the packaging to the other.
2 mm


Package depth

The distance from the front to the back of the packaging.

346 mm


Package height

The distance from the top to the bottom of the packaging.

222 mm


Package weight

Weight of the packaged product.

4.5 kg


Logistics data


Harmonized System (HS) code

85078000
